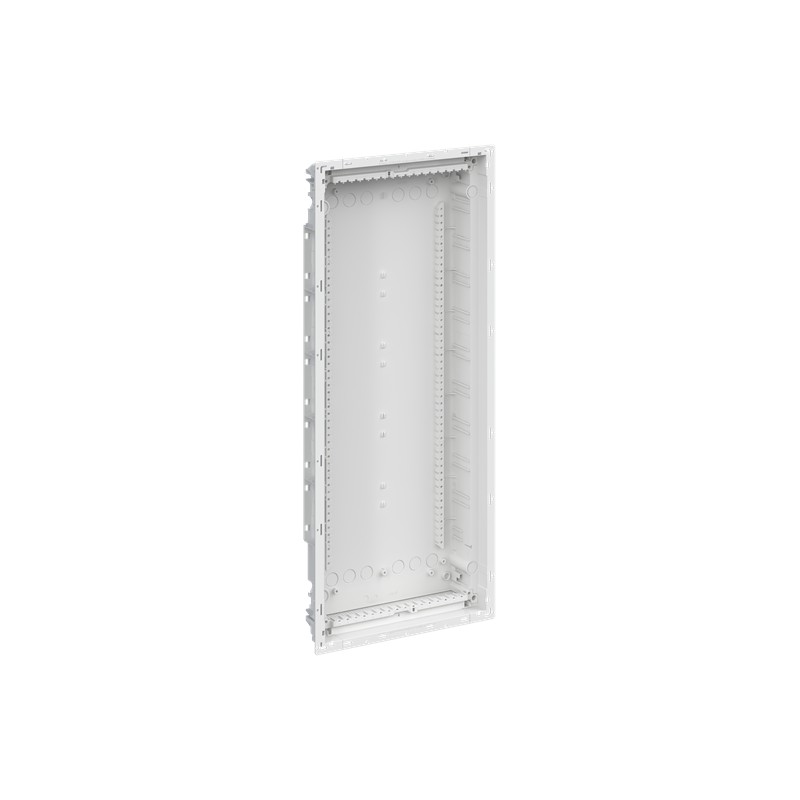

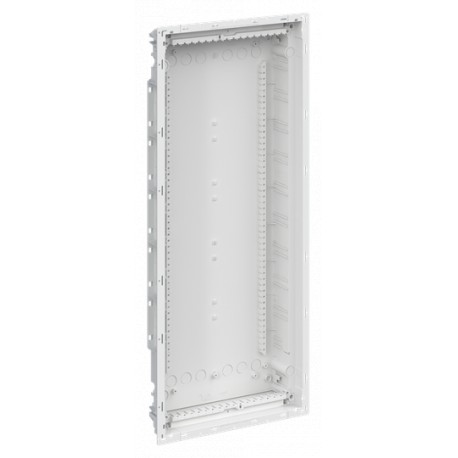

2CPX031117R9999 ABB UZB660 wall box UK600 5 R
2CPX031117R9999
ABB
UZB660 wall box UK600 5 R
Residential boxes
* Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲- Extended Product Type:
- UZB660
- Product ID:
- 2CPX031117R9999
- EAN:
- 4011617311171
- Catalog Description:
- UZB660 wall box UK600 5 R
- Long Description:
- The wall box with wall brackets, suitable for UK66..., is made out of a twist-resistant, break-resistant, low-flammable and low-halogen plastic. It offers large wiring space. The integrated cable-enty slider and strain relief comb is included in the wall box for professional internal wiring. Additional cable entry with perforations lateral and on the rear wall,of the wall box, with removable cable entry slider for one-hand operation and integrated t-ribs for terminals installation
Ordering
- E-Number (Sweden):
- 2201234
- EAN:
- 4011617311171
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85381000
Dimensions
- Product Net Width:
- 363mm
- Product Net Height:
- 847mm
- Product Net Depth / Length:
- 90mm
- Product Net Weight:
- 1.648kg
Container Information
- Package Level 1 Units:
- pack 1 piece
- Package Level 1 Width:
- 370.000 mm
- Package Level 1 Height:
- 865.000 mm
- Package Level 1 Depth / Length:
- 98.000 mm
- Package Level 1 Gross Weight:
- 1.714 kg
- Package Level 1 EAN:
- 4011617311171
Additional Information
- Accessory Type:
- wall box
- Color:
- White
- DIN Place Units:
- 60
- Enclosure Type:
- Consumer unit
- Field Width:
- 1
- Material:
- Other
- Number of Rows:
- 5
- Product Main Type:
- UZ
- Product Name:
- UZB660 wall box UK600 5 R
Certificates and Declarations (Document Number)
- Data Sheet, Technical Information:
- 2CPC000001C0101
2CPC000002C0101
2CPC000031C0101
2CPC000187C0101
2CPC000188C0101
- Declaration of Conformity - CE:
- No declaration needed
- Instructions and Manuals:
- 2CPC129380M5601
Classifications
- ETIM 5:
- EC002625 - Mounting accessories (switchgear cabinet)
- ETIM 6:
- EC002625 - Mounting accessories (switchgear cabinet)
- ETIM 7:
- EC002625 - Mounting accessories (switchgear cabinet)
- Object Classification Code:
- U
- WEEE Category:
- Product Not in WEEE Scope
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG ABB ELECTRICAL CONSUMER EN.pdf | 59 Mbytes |
|
| 2CPX031117R9999 2CPX031117R9999 EN_2CPX031117R9999.pdf | 165 Kbytes |
|
