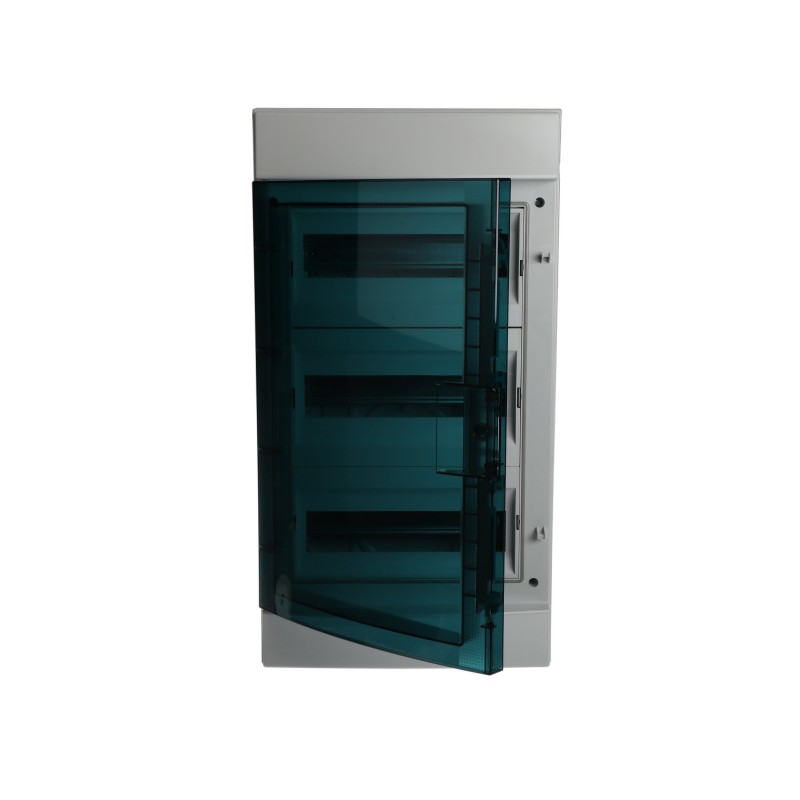

1SL1216A00 ABB MISTRAL65 Box 750, 36 M.3 rows, p.tran.
1SL1216A00
ABB
MISTRAL65 Box 750, 36 M.3 rows, p.tran.
Consumer unit MISTRAL65, Surface mounted, 36 modules, 3 row(s), IP65, Door: Single, Plastic, Transparent, Dimensions: 600 mm x 320 mm x 155 mm
Residential boxes
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Technical | |
|---|---|
| Number of Rows | 3 |
| Closure Type | Snap Function |
| Configuration Type | assembled with device carrier |
| Cover Plate Type | Door |
| Door Type | Single |
| Door Surface Finishing | Transparent |
| Accessories Available | Yes |
| DIN Place Units | 36 |
| Terminal Type | No Terminals |
| Electrical | |
| Power Loss | Δt = 30K 51 W |
| Design | |
| Housing Material | Plastic |
| Door Material | Plastic |
| Cover Style | Closed |
| RAL Number | RAL 7035 - Light Grey |
| Color | Grey |
| Number of Modules | 36 |
| Material Compliance | |
| RoHS Declaration | 9AKK108468A2423 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20221015 |
| REACH Declaration | 9AKK108469A7731 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20240429 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Environmental | |
| Degree of Protection | IP65 |
| Protection Class | Isolated (Class II) |
| Dimensions | |
| Width in Number of Modular Spacings | 12 |
| Product Net Width | 320 mm |
| Product Net Height | 600 mm |
| Product Net Depth / Length | 155 mm |
| Product Net Weight | 3.500 kg |
| Built-In Depth (t2) | 84 mm |
| Ordering | |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 3.933 kg |
| E-Number (Finland) | 3405525 |
| Replaced Product ID (OLD) | 1SLM006500A1216 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK108468A2423 |
| Installation | |
| Instructions and Manuals | 9AKK108468A8244 |
| Mounting Type | Surface mounted |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107991A8329 |
| External Classifications and Standards | |
| ETIM 9 | EC000214 - Small distribution board |
| ETIM 10 | EC000214 - Small distribution board |
| eClass | V11.0 : 27142413 |
