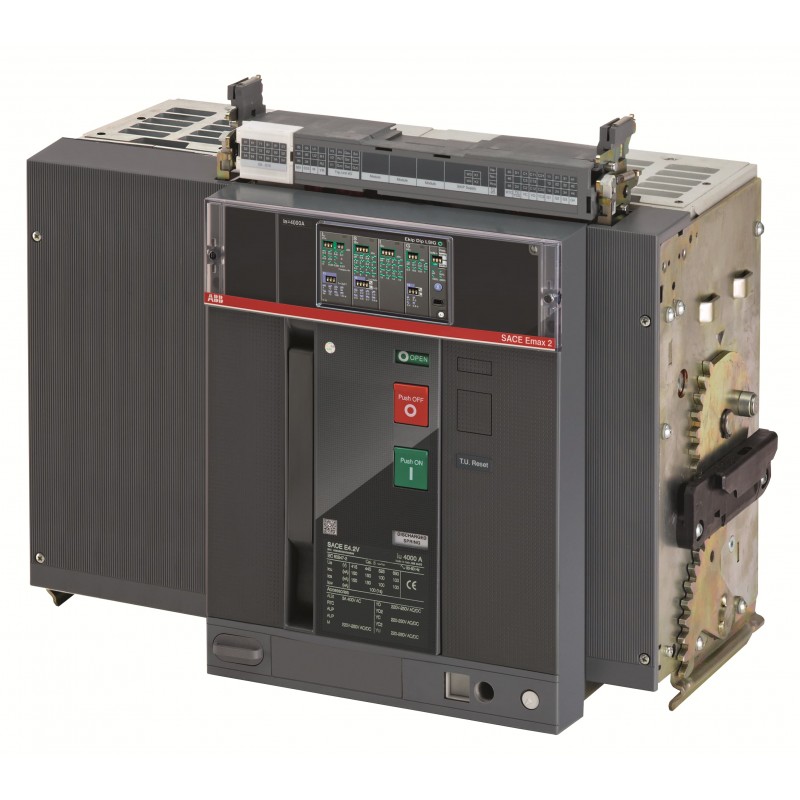

1SDA104508R1 ABB E4.2S/E9 3200 Ekip Dip LSIG 4p WMP
1SDA104508R1
ABB
E4.2S/E9 3200 Ekip Dip LSIG 4p WMP
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Rack "Megamax-Emax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2363 |
| Environmental Product Declaration - EPD | 9AKK108471A0821 |
| Extended Product Lifetime | Lifetime Extension Services are Offered |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | f47ef463-ac99-438f-a5c0-3dfd546b9034 Italy |
| Simplified SCIP | 450bcee9-0c6b-4cfc-abc1-7db0f006e06d Sweden |
| fa2a4db0-013b-4750-868d-d8b518363126 Belgium | |
| 4a54ab17-9d5a-4705-bdb1-9f2cca56bdb7 Poland | |
| 2cbe1b81-61e5-40cd-87e8-873c2146edd7 Germany | |
| 418cb13d-7a99-42b6-87a6-a85c89b16679 France | |
| 9ac0f767-b41f-4ffc-8c6f-be53191e9f8f France | |
| 7196eb30-ae91-4022-9112-b0ea77f30bdc Germany | |
| e149fdea-a829-4320-9aba-8db35a62e3a9 Sweden | |
| 0f3cff70-d10c-495d-929e-e49b98bf414a Hungary | |
| 0a12b659-cde6-4a37-9742-c48ac7985d20 Estonia | |
| 816ba73e-e232-4476-aba6-c9a51f81399c Poland | |
| 418cb13d-7a99-42b6-87a6-a85c89b16679 France | |
| a74b1264-cf4d-44f2-a326-30eb90ff24ec Hungary | |
| edbd20f9-5959-4aa9-892c-c351f697705b Spain | |
| 0a12b659-cde6-4a37-9742-c48ac7985d20 Estonia | |
| a74b1264-cf4d-44f2-a326-30eb90ff24ec Hungary | |
| edbd20f9-5959-4aa9-892c-c351f697705b Spain | |
| 89a0fd13-0d28-42df-b1ac-a6594b48dbd8 Denmark | |
| 0baed3b8-7a47-421c-b300-cef62d736f7a Bulgaria | |
| 6e9240db-e112-40db-b172-eb76f45e4460 Germany | |
| f991acb8-13dd-4259-8d37-5b77888fc141 Norway | |
| 88b4739d-3710-41b5-9367-a11d444b0f89 Germany | |
| 7f92bf3e-0922-45fd-a728-87644cf3eeec Belgium | |
| 8a1f87f5-9416-4260-a277-575190f83d6b Czech Republic | |
| 4a54ab17-9d5a-4705-bdb1-9f2cca56bdb7 Poland | |
| 450bcee9-0c6b-4cfc-abc1-7db0f006e06d Sweden | |
| 922eeca5-6c12-4685-bed4-6412cde3ec6c Germany | |
| 9aa3b41c-0c45-491f-ae93-8ac214939fbe Finland | |
| 88b4739d-3710-41b5-9367-a11d444b0f89 Germany | |
| 7f92bf3e-0922-45fd-a728-87644cf3eeec Belgium | |
| 6e9240db-e112-40db-b172-eb76f45e4460 Germany | |
| 9aa3b41c-0c45-491f-ae93-8ac214939fbe Finland | |
| 09ea8ded-87f7-41fa-9107-50a322511190 Portugal | |
| ca3328d7-1705-4ffb-b070-c5dd52b0a823 Croatia | |
| 9ac0f767-b41f-4ffc-8c6f-be53191e9f8f France | |
| ca3328d7-1705-4ffb-b070-c5dd52b0a823 Croatia | |
| 922eeca5-6c12-4685-bed4-6412cde3ec6c Germany | |
| f991acb8-13dd-4259-8d37-5b77888fc141 Norway | |
| 37497c25-2ce0-42b8-a81c-cb6a4d074529 Poland | |
| 89a0fd13-0d28-42df-b1ac-a6594b48dbd8 Denmark | |
| fc9582f7-086b-4d1f-9635-6cc68a3c8fad Greece | |
| 8a1f87f5-9416-4260-a277-575190f83d6b Czech Republic | |
| 0baed3b8-7a47-421c-b300-cef62d736f7a Bulgaria | |
| 44fcb8f7-8270-4f51-b19f-7c4fe1f7d5fc Netherlands | |
| 44fcb8f7-8270-4f51-b19f-7c4fe1f7d5fc Netherlands | |
| e149fdea-a829-4320-9aba-8db35a62e3a9 Sweden | |
| 2cbe1b81-61e5-40cd-87e8-873c2146edd7 Germany | |
| 0f3cff70-d10c-495d-929e-e49b98bf414a Hungary | |
| 7196eb30-ae91-4022-9112-b0ea77f30bdc Germany | |
| fc9582f7-086b-4d1f-9635-6cc68a3c8fad Greece | |
| 816ba73e-e232-4476-aba6-c9a51f81399c Poland | |
| 09ea8ded-87f7-41fa-9107-50a322511190 Portugal | |
| 37497c25-2ce0-42b8-a81c-cb6a4d074529 Poland | |
| fa2a4db0-013b-4750-868d-d8b518363126 Belgium | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | 9CSVENAC000A000000XX |
| EAN | 8015644065881 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 551 mm |
| Product Net Height | 425 mm |
| Product Net Depth / Length | 383 mm |
| Product Net Weight | 74 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 610 mm |
| Package Level 1 Depth / Length | 615 mm |
| Package Level 1 Gross Weight | 77 kg |
| Package Level 1 EAN | 8015644065881 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue = 900 V 1000 cycle |
| 10 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Power Loss | 743 W |
| Rated Current (In) | 3200 A |
| Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 900 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (800 V AC) 65 kA |
| (900 V AC) 65 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 65 kA |
| for 3 s 65 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (800 V AC) 65 kA |
| (900 V AC) 65 kA | |
| Rated Uninterrupted Current (Iu) | 3200 A |
| Rated Voltage (Ur) | 900 V |
| Release | Ekip Dip LSIG |
| Release Type | EL |
| Remarks | E9 |
| Short-Circuit Performance Level | S |
| Standards | IEC |
| Sub-type | E4.2 |
| Suitable for IT Networks | No |
| Terminal Connection Type | Rear flat Horizontal |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK107680A4889 |
| Instructions and Manuals | 1SDH001000R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 3200 A |
| Rated voltage (EF003977) | 900 V |
| Overload release current setting (EF002336) | 1280.0 A |
| Adjustment range short-term delayed short-circuit release (EF007129) | 1920.0 A |
| Adjustment range undelayed short-circuit release (EF007131) | 4800.0 A |
| Integrated earth fault protection (EF007296) | Yes |
| Type of electrical connection of main circuit (EF006819) | Connection at separate chassis part |
| Device construction (EF008240) | Built-in device slide-in technique (withdrawable) |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 4 |
| With switched-off indicator (EF007006) | Yes |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 4 |
| Position of connection for main current circuit (EF006671) | Connection at separate chassis part |
| Type of control element (EF006976) | Push button |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP30 |
