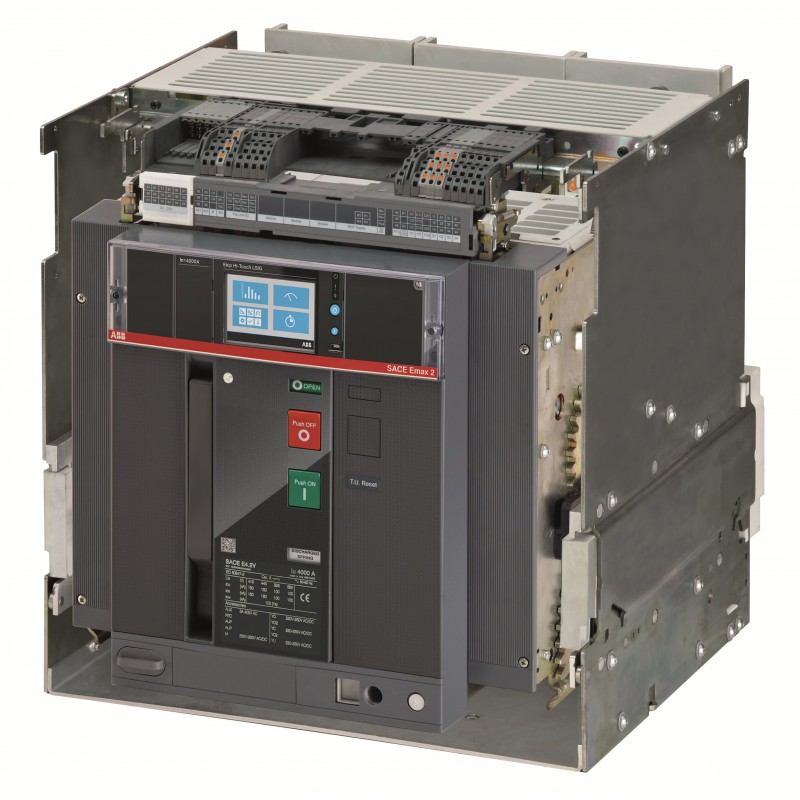

1SDA104506R1 ABB E4.2S/E9 4000 Ekip Touch LSI 3p WMP
1SDA104506R1
ABB
E4.2S/E9 4000 Ekip Touch LSI 3p WMP
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Rack "Megamax-Emax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2363 |
| Environmental Product Declaration - EPD | 9AKK108471A0821 |
| Extended Product Lifetime | Lifetime Extension Services are Offered |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | d90bd060-0794-4d36-b328-e5403cf4ece4 Italy |
| Simplified SCIP | 96a9d89d-cce5-4879-a913-76581581f63c Germany |
| 1e949331-cd1b-4488-9713-bab524e3f36f Finland | |
| 42abf426-1a11-4121-b8c6-8b1d6bfa79cb Denmark | |
| fbb77d5a-882c-43ed-b231-cc5b0edb5b01 Norway | |
| b842f1f5-66f6-46a3-8901-e1afcddb0e91 Germany | |
| fc2b26de-ca5d-419c-871a-e65fd53d8409 Bulgaria | |
| c56a9f97-8432-4631-9f56-90ec89ed8004 Belgium | |
| 5ef5fa24-e74a-4a46-8ba2-6b8ed8913ac8 Belgium | |
| c56a9f97-8432-4631-9f56-90ec89ed8004 Belgium | |
| b842f1f5-66f6-46a3-8901-e1afcddb0e91 Germany | |
| c2ce7f0e-470a-40cc-8386-ff96dae2185f Sweden | |
| 2658ce83-7247-4187-8ffd-44977099c4e9 Germany | |
| 738649b6-6c38-4dfa-9755-a301494355c1 Czech Republic | |
| f961bc49-7dc6-4f70-a61b-2f299c73df0a Poland | |
| 3acc9c35-e432-4454-9f9a-c03f8502898d Poland | |
| 42abf426-1a11-4121-b8c6-8b1d6bfa79cb Denmark | |
| 3acc9c35-e432-4454-9f9a-c03f8502898d Poland | |
| 2658ce83-7247-4187-8ffd-44977099c4e9 Germany | |
| 5b271b3c-92d5-4d64-a81a-052e9e20aa35 Poland | |
| 3d365dcc-2c54-4531-9ba8-be78361fd414 Portugal | |
| d781c66d-0eca-4024-94bd-1d15b9b7abf0 Greece | |
| 6d194039-d155-4078-bdd7-faeb25a7bbb7 Germany | |
| d31b5ace-a400-46a8-8c2a-492f85d3333b Hungary | |
| 738649b6-6c38-4dfa-9755-a301494355c1 Czech Republic | |
| 32affc22-5fbe-484e-955e-6cf0241d5e99 Netherlands | |
| d31b5ace-a400-46a8-8c2a-492f85d3333b Hungary | |
| fc2b26de-ca5d-419c-871a-e65fd53d8409 Bulgaria | |
| 96a9d89d-cce5-4879-a913-76581581f63c Germany | |
| 15e85e9e-f141-4935-9915-2d4cbf784d29 France | |
| fbb77d5a-882c-43ed-b231-cc5b0edb5b01 Norway | |
| d781c66d-0eca-4024-94bd-1d15b9b7abf0 Greece | |
| 7afbdd00-3c37-46e2-b647-a932d9e2e9f5 Croatia | |
| 529ebf9e-b804-4cd6-ab11-fe81d1d22062 Sweden | |
| 7afbdd00-3c37-46e2-b647-a932d9e2e9f5 Croatia | |
| 44e0a6b1-83bd-4b89-af72-f258500736e7 Germany | |
| 3d365dcc-2c54-4531-9ba8-be78361fd414 Portugal | |
| 32affc22-5fbe-484e-955e-6cf0241d5e99 Netherlands | |
| 1e949331-cd1b-4488-9713-bab524e3f36f Finland | |
| 81bae7c5-d764-4267-9376-a19bd9f5e2ff France | |
| 4059f503-ef50-4cb4-866a-515754469356 Hungary | |
| f9d6b7ff-10b3-4ddf-9524-13f42eace82e Spain | |
| 6d194039-d155-4078-bdd7-faeb25a7bbb7 Germany | |
| 529ebf9e-b804-4cd6-ab11-fe81d1d22062 Sweden | |
| 44e0a6b1-83bd-4b89-af72-f258500736e7 Germany | |
| f9d6b7ff-10b3-4ddf-9524-13f42eace82e Spain | |
| c2ce7f0e-470a-40cc-8386-ff96dae2185f Sweden | |
| f961bc49-7dc6-4f70-a61b-2f299c73df0a Poland | |
| 15e85e9e-f141-4935-9915-2d4cbf784d29 France | |
| 4be3ef9c-7ea4-4903-80f0-c996826c62f7 Estonia | |
| 5b271b3c-92d5-4d64-a81a-052e9e20aa35 Poland | |
| 81bae7c5-d764-4267-9376-a19bd9f5e2ff France | |
| 4059f503-ef50-4cb4-866a-515754469356 Hungary | |
| 4be3ef9c-7ea4-4903-80f0-c996826c62f7 Estonia | |
| 5ef5fa24-e74a-4a46-8ba2-6b8ed8913ac8 Belgium | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | 94SWERAE000A000000XX |
| EAN | 8015644065867 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 425 mm |
| Product Net Height | 425 mm |
| Product Net Depth / Length | 383 mm |
| Product Net Weight | 60 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 610 mm |
| Package Level 1 Depth / Length | 615 mm |
| Package Level 1 Gross Weight | 67 kg |
| Package Level 1 EAN | 8015644065867 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue = 900 V 1000 cycle |
| 10 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 900 W |
| Rated Current (In) | 4000 A |
| Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 900 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (800 V AC) 65 kA |
| (900 V AC) 65 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 65 kA |
| for 3 s 65 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (800 V AC) 65 kA |
| (900 V AC) 65 kA | |
| Rated Uninterrupted Current (Iu) | 4000 A |
| Rated Voltage (Ur) | 900 V |
| Release | Ekip Touch LSI |
| Release Type | EL |
| Remarks | E9 |
| Short-Circuit Performance Level | S |
| Standards | IEC |
| Sub-type | E4.2 |
| Suitable for IT Networks | No |
| Terminal Connection Type | Rear flat Horizontal |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK107680A4889 |
| Instructions and Manuals | 1SDH001000R0002 |
| Instructions and Manuals (Part 2) | 1SDH001316R1002 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 4000 A |
| Rated voltage (EF003977) | 900 V |
| Overload release current setting (EF002336) | 1600.0 A |
| Adjustment range short-term delayed short-circuit release (EF007129) | 2400.0 A |
| Adjustment range undelayed short-circuit release (EF007131) | 6000.0 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Connection at separate chassis part |
| Device construction (EF008240) | Built-in device slide-in technique (withdrawable) |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 4 |
| With switched-off indicator (EF007006) | Yes |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 3 |
| Position of connection for main current circuit (EF006671) | Connection at separate chassis part |
| Type of control element (EF006976) | Push button |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP30 |
