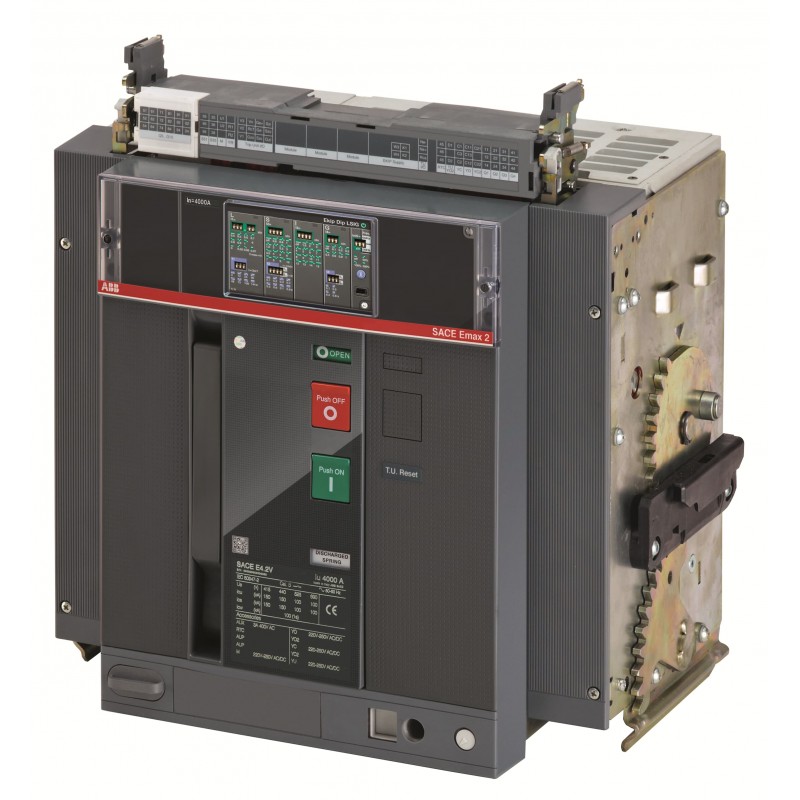

1SDA104502R1 ABB E4.2S/E9 4000 Ekip Dip LSI 3p WMP
1SDA104502R1
ABB
E4.2S/E9 4000 Ekip Dip LSI 3p WMP
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Rack "Megamax-Emax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2363 |
| Environmental Product Declaration - EPD | 9AKK108471A0821 |
| Extended Product Lifetime | Lifetime Extension Services are Offered |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 4a604708-4933-4bab-b27f-19fe1b26410a Italy |
| Simplified SCIP | 7f90fb8a-6b2e-4b6f-9832-ad5fa49971ac Germany |
| de87b304-0c9c-45a0-b94a-1b4fce3eb04b Netherlands | |
| cd1bdced-919e-4d27-b16f-0ed216140e41 Croatia | |
| 24b2a67b-e22e-475e-bdc0-fff648e3a4be Poland | |
| 4cf47720-d9d9-4f79-b537-999b17ee8246 Czech Republic | |
| deb5e441-5de0-4cba-a505-976695d07d4c France | |
| 8ad85ef2-585c-417b-8b1f-cee27fb844d8 Denmark | |
| 6d1cd95d-3b89-4dde-a47a-2c4078216546 Germany | |
| c92783cb-a542-488f-9f7b-934175bc3d5f Germany | |
| afd4b6fc-957b-4347-afd1-569e39fab6e2 Germany | |
| b239d6e8-3710-462a-9249-d5d3cfc63af9 Germany | |
| 5fa479e5-a41b-4f4a-971a-bdb81057bccc France | |
| 53179bee-7765-44a8-aed6-5884fc73792c Finland | |
| 3bb63a64-2155-417f-84e8-a5650f8e56e9 Estonia | |
| 3d767975-bc9e-49fa-8a74-0f9172f39e09 Sweden | |
| 8a00aa4a-72f9-427f-80d8-c95207a82612 Belgium | |
| e727f3a9-322c-4646-a294-8216721bb234 Poland | |
| 7875ba9f-e91c-4361-bf38-3ee18d994442 Hungary | |
| 405904b0-833f-454a-87ca-c2661eb2bf58 Norway | |
| f1f30e9a-9de9-4464-8405-3c38c4d991c5 Poland | |
| 75fdff52-2fd1-4773-b371-f78bd9f5f02b Greece | |
| 148cd8b0-1cbf-449d-b3a6-8475209cfe19 Portugal | |
| 7d623b69-d730-4aa7-8dc7-76820ac32798 Bulgaria | |
| 19b97d7b-acb4-44c8-86d0-6402fb5097a0 Sweden | |
| 147c4a02-67b1-4547-8f0c-f426aaf6e298 Spain | |
| 3209303b-79d8-4a21-ad50-f0461ea35be7 Belgium | |
| c097d9a7-fe2a-4b95-85e4-b15fd79bdab8 Hungary | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | 94SWERAB000A000000XX |
| EAN | 8015644065829 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 425 mm |
| Product Net Height | 425 mm |
| Product Net Depth / Length | 383 mm |
| Product Net Weight | 60 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 610 mm |
| Package Level 1 Depth / Length | 615 mm |
| Package Level 1 Gross Weight | 67 kg |
| Package Level 1 EAN | 8015644065829 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue = 900 V 1000 cycle |
| 10 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 900 W |
| Rated Current (In) | 4000 A |
| Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 900 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (800 V AC) 65 kA |
| (900 V AC) 65 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 65 kA |
| for 3 s 65 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (800 V AC) 65 kA |
| (900 V AC) 65 kA | |
| Rated Uninterrupted Current (Iu) | 4000 A |
| Rated Voltage (Ur) | 900 V |
| Release | Ekip Dip LSI |
| Release Type | EL |
| Remarks | E9 |
| Short-Circuit Performance Level | S |
| Standards | IEC |
| Sub-type | E4.2 |
| Suitable for IT Networks | No |
| Terminal Connection Type | Rear flat Horizontal |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK107680A4889 |
| Instructions and Manuals | 1SDH001000R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 4000 A |
| Rated voltage (EF003977) | 900 V |
| Overload release current setting (EF002336) | 1600.0 A |
| Adjustment range short-term delayed short-circuit release (EF007129) | 2400.0 A |
| Adjustment range undelayed short-circuit release (EF007131) | 6000.0 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Connection at separate chassis part |
| Device construction (EF008240) | Built-in device slide-in technique (withdrawable) |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 4 |
| With switched-off indicator (EF007006) | Yes |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 3 |
| Position of connection for main current circuit (EF006671) | Connection at separate chassis part |
| Type of control element (EF006976) | Push button |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP30 |
