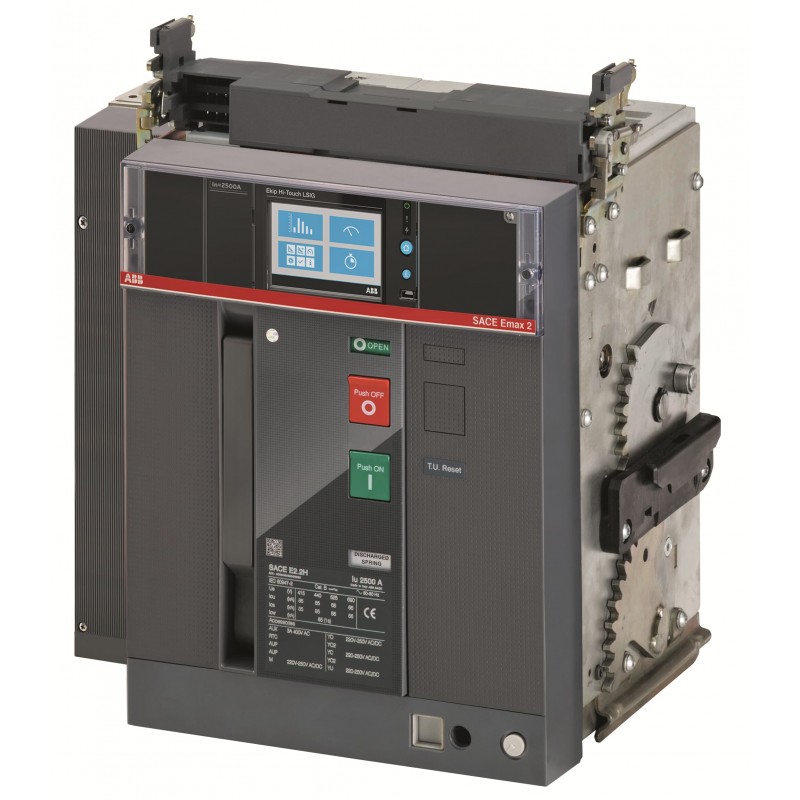

1SDA104461R1 ABB E2.2S/E9 2000 Ekip Touch LSI 4p WMP
1SDA104461R1
ABB
E2.2S/E9 2000 Ekip Touch LSI 4p WMP
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Rack "Megamax-Emax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2361 |
| Environmental Product Declaration - EPD | 9AKK108471A0821 |
| Extended Product Lifetime | Lifetime Extension Services are Offered |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 3a3e8883-e2aa-4cc7-abd2-9bf886e5d052 Italy |
| Simplified SCIP | b38c0d1a-c6df-451c-a90e-839d198fcd72 Germany |
| 50187ef4-589b-42a5-9ee9-5188f1e66423 Denmark | |
| 49085f3d-657b-43d2-b7e8-35be2ed2b9af Bulgaria | |
| 3949d9b3-c36c-4c9f-ba63-afe9b6058457 France | |
| 2ae5a739-23bb-44a9-ba58-29e17368b03c Germany | |
| 85c1c37d-3841-428f-b1c1-09390e1de338 Poland | |
| a261eee7-557a-439f-a1e6-0fc0f7075ea4 Sweden | |
| 8d4865df-ae64-4a4f-a5e4-f5cdb28d08df Poland | |
| cc03e98b-26e3-4fd1-8592-d7abd6cf9b55 Norway | |
| 0b1c139d-c452-4a59-a75b-f21256a435ee Croatia | |
| fb9bd4cd-621d-4075-a459-d7b17acfc6a6 Sweden | |
| 3611ab18-c401-460e-be40-2cc3aa3488b8 Finland | |
| 4b586c2a-1c5a-4571-9cb8-a2b84d465c30 Belgium | |
| 9eed6934-0f77-4a65-aa94-348ab9a42375 Czech Republic | |
| fe5f1635-eb10-48f2-b989-1c9e0e3f2db0 Germany | |
| b12f603c-8b93-49f1-9211-d84c8e1626c7 Germany | |
| 18b7ab30-ab00-4db4-8fed-a5439340a2cc France | |
| 76515298-45f7-4cf3-9698-ecf979ca1bd5 Germany | |
| b77dc1be-8b99-446a-a91c-ded6f8b4ac14 Poland | |
| 753de1fa-04ac-4fdb-801c-a740422effd5 Hungary | |
| 20df9bb0-3347-423b-8bc1-d7c794ecc19c Netherlands | |
| d1f7d52a-00f8-473f-94d1-64cf62f24dcf Spain | |
| 49461d32-6b32-4b1b-a4ee-c311c5917290 Belgium | |
| 43bcaab1-fc99-4eae-837f-375d7778da58 Estonia | |
| cc12493c-8ddd-4ecf-9b66-83e2fe461921 Hungary | |
| 86bc9930-caaf-408e-a42a-0e5f94eac25d Greece | |
| ab9e1255-140f-4280-a0b5-593709f16763 Portugal | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | 9BSTEKAE000A000000XX |
| EAN | 8015644065416 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 407 mm |
| Product Net Height | 425 mm |
| Product Net Depth / Length | 383 mm |
| Product Net Weight | 55 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 610 mm |
| Package Level 1 Depth / Length | 515 mm |
| Package Level 1 Gross Weight | 59 kg |
| Package Level 1 EAN | 8015644065416 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue = 900 V 2000 cycle |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Power Loss | 450 W |
| Rated Current (In) | 2000 A |
| Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 900 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (800 V AC) 50 kA |
| (900 V AC) 50 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA |
| for 3 s 50 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (800 V AC) 50 kA |
| (900 V AC) 50 kA | |
| Rated Uninterrupted Current (Iu) | 2000 A |
| Rated Voltage (Ur) | 900 V |
| Release | Ekip Touch LSI |
| Release Type | EL |
| Remarks | E9 |
| Short-Circuit Performance Level | S |
| Standards | IEC |
| Sub-type | E2.2 |
| Suitable for IT Networks | Yes, 900V |
| Terminal Connection Type | Rear flat Horizontal |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK107680A4888 |
| Instructions and Manuals | 1SDH001000R0002 |
| Instructions and Manuals (Part 2) | 1SDH001316R1002 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 2000 A |
| Rated voltage (EF003977) | 900 V |
| Overload release current setting (EF002336) | 2000 A |
| Adjustment range short-term delayed short-circuit release (EF007129) | 1200.0 A |
| Adjustment range undelayed short-circuit release (EF007131) | 3000.0 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Connection at separate chassis part |
| Device construction (EF008240) | Built-in device slide-in technique (withdrawable) |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 4 |
| With switched-off indicator (EF007006) | Yes |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 4 |
| Position of connection for main current circuit (EF006671) | Connection at separate chassis part |
| Type of control element (EF006976) | Push button |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP30 |
