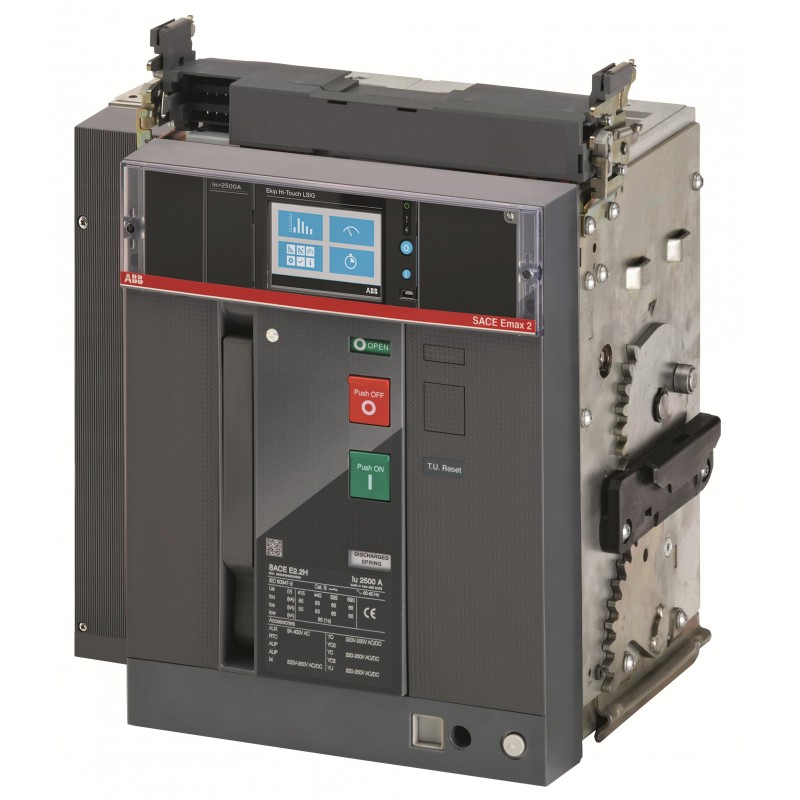

1SDA104454R1 ABB E2.2S/E9 1250 Ekip Touch LSIG 4p WMP
1SDA104454R1
ABB
E2.2S/E9 1250 Ekip Touch LSIG 4p WMP
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Rack "Megamax-Emax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2361 |
| Environmental Product Declaration - EPD | 9AKK108471A0821 |
| Extended Product Lifetime | Lifetime Extension Services are Offered |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | b6a9ab85-0a4b-4197-9be7-ca0a643fbdd3 India |
| Simplified SCIP | 247a4952-309f-4f35-b751-546fc1880e4c Hungary |
| 0f4efbe0-193b-449b-8330-c578a16bf5d4 Spain | |
| d63367ed-b93a-4606-8e7e-5ae4f53efbeb Belgium | |
| a2a115a6-0ffe-4530-aeee-58ac6394b5e0 Hungary | |
| 39e68ff0-9bff-4a2d-87e3-7ecce0ea46b9 Netherlands | |
| 4a753d36-af97-4707-b2c4-f0302bbeecaa Czech Republic | |
| ea895129-25c0-4964-b4c4-28c5d2a1e96e Croatia | |
| e523e957-dc54-477d-9987-b3a37314d733 Poland | |
| 13445338-2432-4242-9fd7-817632406e6a Portugal | |
| 3390b7f1-0713-4680-92a4-09ab113db033 Germany | |
| 46d4cd0c-d244-43fb-8f62-22ca6cdd24ec Sweden | |
| f0a0c03e-b0fe-4e14-bfed-06b1ede33d9a Germany | |
| f291a21f-6a4c-43d2-a9d9-02d30b7b8235 France | |
| c3857861-7b33-4946-bff8-2aa59f4f6263 Bulgaria | |
| fd9aa81f-1c0f-4142-9c65-0fca7c44fc82 Poland | |
| e65c04e8-c4c4-40ba-9efc-bb98177e08b0 Sweden | |
| ead194c1-2922-4afc-92a6-4453443202f4 Greece | |
| a99bb0aa-f25f-416f-867c-f4e07f34eff7 Estonia | |
| e0bd1d4b-cc6e-41a2-b842-984692d39450 Poland | |
| 0021e733-8bd9-4a79-933c-b9b6f3f8b631 Germany | |
| 4b273e24-eec7-4204-992d-0198016d31c0 Norway | |
| 3d2bd286-0523-43f7-be67-38a9b3fb0885 Belgium | |
| 1443098f-1789-4ebb-be61-3187a0724042 Germany | |
| 11a9efae-a8e6-44bc-8a30-05deeff1be47 Germany | |
| 3138b1d6-d742-4631-b474-662130b3c593 Denmark | |
| 340a5e92-5273-4b92-8ce0-b5c7ff08a451 Finland | |
| 5b60cdf7-4b6e-4800-be52-e27f54a9433e France | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | 9BSREHAF000A000000XX |
| EAN | 8015644065348 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 407 mm |
| Product Net Height | 425 mm |
| Product Net Depth / Length | 383 mm |
| Product Net Weight | 55 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 610 mm |
| Package Level 1 Depth / Length | 515 mm |
| Package Level 1 Gross Weight | 59 kg |
| Package Level 1 EAN | 8015644065348 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue = 900 V 2000 cycle |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Power Loss | 176 W |
| Rated Current (In) | 1250 A |
| Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 900 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (800 V AC) 50 kA |
| (900 V AC) 50 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA |
| for 3 s 50 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (800 V AC) 50 kA |
| (900 V AC) 50 kA | |
| Rated Uninterrupted Current (Iu) | 1250 A |
| Rated Voltage (Ur) | 900 V |
| Release | Ekip Touch LSIG |
| Release Type | EL |
| Remarks | E9 |
| Short-Circuit Performance Level | S |
| Standards | IEC |
| Sub-type | E2.2 |
| Suitable for IT Networks | Yes, 900V |
| Terminal Connection Type | Rear flat Horizontal |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK107680A4888 |
| Instructions and Manuals | 1SDH001000R0002 |
| Instructions and Manuals (Part 2) | 1SDH001316R1002 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 1250 A |
| Rated voltage (EF003977) | 900 V |
| Overload release current setting (EF002336) | 1250 A |
| Adjustment range short-term delayed short-circuit release (EF007129) | 12500 A |
| Adjustment range undelayed short-circuit release (EF007131) | 1875.0 A |
| Integrated earth fault protection (EF007296) | Yes |
| Type of electrical connection of main circuit (EF006819) | Connection at separate chassis part |
| Device construction (EF008240) | Built-in device slide-in technique (withdrawable) |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 4 |
| With switched-off indicator (EF007006) | Yes |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 4 |
| Position of connection for main current circuit (EF006671) | Connection at separate chassis part |
| Type of control element (EF006976) | Push button |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP30 |
