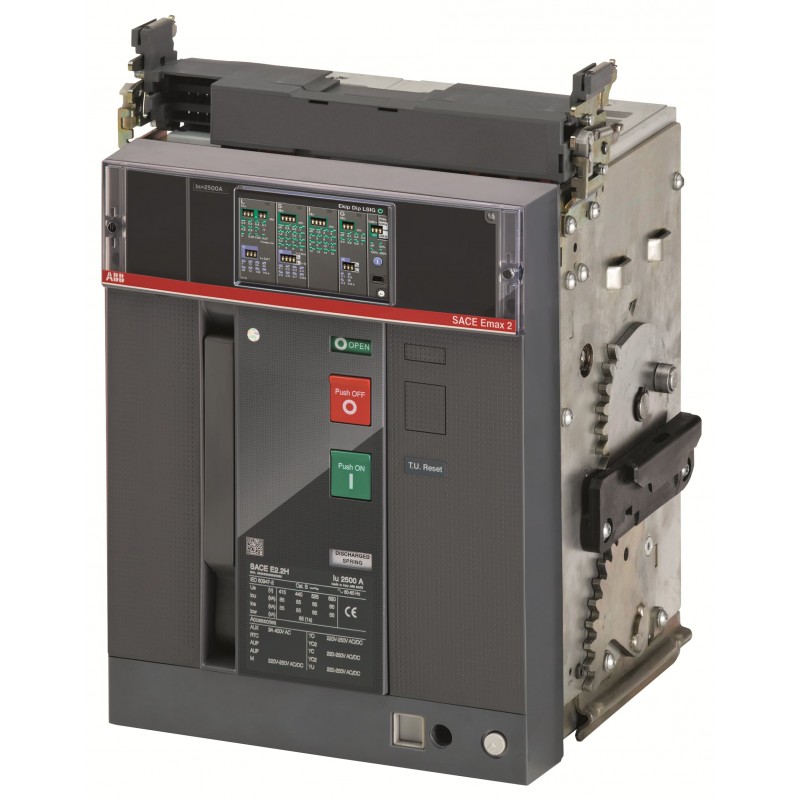

1SDA104437R1 ABB E2.2S/E9 1250 Ekip Dip LSI 3p WMP
1SDA104437R1
ABB
E2.2S/E9 1250 Ekip Dip LSI 3p WMP
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Rack "Megamax-Emax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2361 |
| Environmental Product Declaration - EPD | 9AKK108471A0821 |
| Extended Product Lifetime | Lifetime Extension Services are Offered |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 91612d35-f6bb-4ab7-a0c0-1838d592dca0 Italy |
| Simplified SCIP | 58ccc6eb-ba4e-4cf8-840b-59eb5402c86c Germany |
| 33b538a4-b5fa-4269-844b-8b44ed468761 Germany | |
| b7a5b976-e457-48bb-a2a3-793782a78c52 Hungary | |
| 91c341c3-d5ec-46fd-ac1f-7ce5395e7150 France | |
| 2f57b36c-71ae-4d1c-812e-78b857f7406a Belgium | |
| f3cab02c-586a-496b-80b6-d8aac4b1e9a8 Sweden | |
| 31c35e12-67cb-4ee9-b7a2-a102b049e597 Poland | |
| 8646171f-ce0b-462c-bf3f-7c100f0453eb Portugal | |
| f753d192-9feb-421b-8f88-7ffb7846291a Bulgaria | |
| 5a90714b-df3d-4628-b896-068979abc240 Sweden | |
| 06ae3b52-070d-4451-884d-fd01d4d680b2 Hungary | |
| 767f649f-181f-48cb-86aa-0f5f6dbd1c91 Estonia | |
| 5b3036db-e274-43a5-9bf8-e78403767c71 Greece | |
| f5152dd8-cc05-4fd6-b6d2-fdc0ab7c9e91 Germany | |
| 4f6ac9ed-b995-4ac7-9cda-10a7d986670a Poland | |
| 9eeb92fe-9fe8-435d-b45e-1d4a44ce03ba Denmark | |
| 6681c902-151c-4efa-9ead-f83d67149073 Finland | |
| 91553d32-19ac-4025-bbd5-3ddab4d2926c Norway | |
| 21230d90-ae82-4205-8087-6ebb80a9ef3e France | |
| 1c7aba53-f96b-4016-89b6-767b2ff2cf50 Croatia | |
| abd23c38-ab32-410e-9057-2a1619c27f5b Spain | |
| 9709728d-a563-4bed-a1ec-1693d86f3475 Netherlands | |
| bc638d2f-531b-4aae-ac4c-5ca54228ebbc Belgium | |
| 6ce70c54-9233-4dee-b6fc-fc077b239f4d Germany | |
| 38c976f6-4934-4e7a-a073-7dae6b7a9288 Czech Republic | |
| a1e8486e-9d26-498d-90f5-5e9acc8f672e Poland | |
| bba0d3d8-972d-4a96-ba0a-0e6eb1267de0 Germany | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | 92SREHAB000A000000XX |
| EAN | 8056221026284 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 317 mm |
| Product Net Height | 425 mm |
| Product Net Depth / Length | 383 mm |
| Product Net Weight | 48 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 610 mm |
| Package Level 1 Depth / Length | 515 mm |
| Package Level 1 Gross Weight | 53 kg |
| Package Level 1 EAN | 8056221026284 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue = 900 V 2000 cycle |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 176 W |
| Rated Current (In) | 1250 A |
| Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 900 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (800 V AC) 50 kA |
| (900 V AC) 50 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA |
| for 3 s 50 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (800 V AC) 50 kA |
| (900 V AC) 50 kA | |
| Rated Uninterrupted Current (Iu) | 1250 A |
| Rated Voltage (Ur) | 900 V |
| Release | Ekip Dip LSI |
| Release Type | EL |
| Remarks | E9 |
| Short-Circuit Performance Level | S |
| Standards | IEC |
| Sub-type | E2.2 |
| Suitable for IT Networks | Yes, 900V |
| Terminal Connection Type | Rear flat Horizontal |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK107680A4888 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| Instructions and Manuals | 1SDH001000R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 1250 A |
| Rated voltage (EF003977) | 900 V |
| Overload release current setting (EF002336) | 1250 A |
| Adjustment range short-term delayed short-circuit release (EF007129) | 12500 A |
| Adjustment range undelayed short-circuit release (EF007131) | 1875.0 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Connection at separate chassis part |
| Device construction (EF008240) | Built-in device slide-in technique (withdrawable) |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 4 |
| With switched-off indicator (EF007006) | Yes |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 3 |
| Position of connection for main current circuit (EF006671) | Connection at separate chassis part |
| Type of control element (EF006976) | Push button |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP30 |
