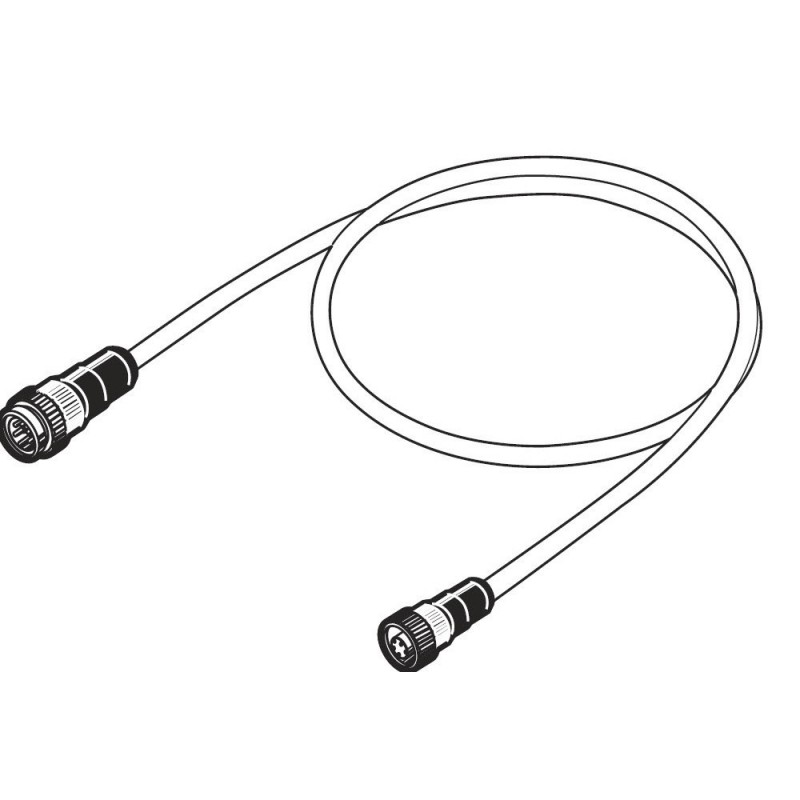

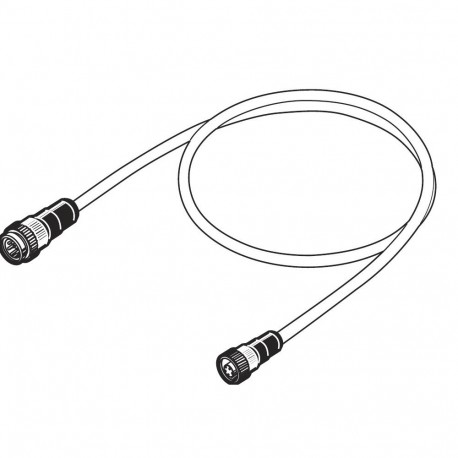

DCA1-5CN05W5 DCA10069M DCA15CN05W5 OMRON Kabel IP67 5m Stecker an beiden enden

4-point PNP input unit

24 V, 6 mA

123×60×44

Separate I/O power supply connection

DRT2-ID04CL-1

8-point PNP input unit

24 V, 6 mA

175×60×44

Separate I/O power supply connection

DRT2-ID08CL-1

8-point PNP input unit

24 V, 11 mA, with power short-circuit and sensor disconnection detection

175×60×38

Unit power supply via DeviceNet cable

DRT2-ID08C-1

16-point PNP input unit

24 V, 6 mA, 2 inputs per M12 connector

175×60×44

Separate I/O power supply connection

DRT2-HD16CL-1

16-point PNP input unit

24 V, 11 mA, 2 inputs per M12 connector,
with power short-circuit and sensor disconnection detection

175×60×38

Unit power supply via DeviceNet cable

DRT2-HD16C-1

4-point PNP output unit

24 V, 0.5 A per point

123×60×44

Separate I/O power supply connection

DRT2-OD04CL-1

8-point PNP output unit

24 V, 0.5 A per point

175×60×44

Separate I/O power supply connection

DRT2-OD08CL-1

8-point PNP output unit

24 V, 1.5 A per point (8 A total), with short-circuit protection + indication

175×60×44

Separate I/O power supply connection

DRT2-OD08C-1

16-point PNP output unit

24 V, 0.5 A per point, 2 points per M12 connector

175×60×44

Separate I/O power supply connection

DRT2-WD16CL-1

8-point input + 8-point PNP output unit

24 V, 6 mA input, 0.5 A output per point, 2 points per M12 connector

175×60×44

Separate I/O power supply connection

DRT2-MD16CL-1

DeviceNet thin cable

with one M12 socket connector (female), 1 m

DCA1-5CN01F1

DeviceNet thin cable

with one M12 socket connector (female), 2 m

DCA1-5CN02F1

DeviceNet thin cable

with one M12 socket connector (female), 5 m

DCA1-5CN05F1

DeviceNet thin cable

with one M12 socket connector (female) and one M12 plug connector (male), 1 m

DCA1-5CN01W1

DeviceNet thin cable

with one M12 socket connector (female) and one M12 plug connector (male), 2 m

DCA1-5CN02W1

DeviceNet thin cable

with one M12 socket connector (female) and one M12 plug connector (male), 5 m

DCA1-5CN05W1

DeviceNet T-connector for thin cable

with two M12 socket connectors (female) + one M12 plug connector (male)

DCN2-1

DeviceNet terminator

with M12 plug connector

DRS2-1

Power supply cable

with one 7/8 inches socket connector (female), 2 m

XS4F-D421-102-A

Power supply cable

with one 7/8 inches socket connector (female), 5 m

XS4F-D421-105-A

Power supply cable

with one 7/8 inches socket connector (female) and one 7/8 inches plug connector (male), 2 m

XS4W-D421-102-A

Power supply cable

with one 7/8 inches socket connector (female) and one 7/8 inches plug connector (male), 5 m

XS4W-D421-105-A

Power supply T-connector

with two 7/8 inches socket connectors (female) + one 7/8 inches plug connector (male)

XS4R-D424-5

4-wire I/O connection cable

with one M12 plug connector (male), 1 m

XS2H-D421-C80-A

4-wire I/O connection cable

with one M12 plug connector (male), 2 m

XS2H-D421-D80-A

4-wire I/O connection cable

with one M12 plug connector (male), 5 m

XS2H-D421-G80-A

4-wire I/O connection cable

with one M12 socket connector (female) and one M12 plug connector (male), 1 m

XS2W-D421-C81-A

4-wire I/O connection cable

with one M12 socket connector (female) and one M12 plug connector (male), 2 m

XS2W-D421-D81-A

4-wire I/O connection cable

with one M12 socket connector (female) and one M12 plug connector (male), 5 m

XS2W-D421-G81-A

Y-connector for 16-point I/O units

Splits the 2 I/O points per M12 connector to two M12 connectors

XS2R-D426-1

Y-connector cable for 16-point I/O units

Splits the 2 I/O points per M12 connector to two M12 connectors, 1 m

XS2R-D426-C11-F

M12 connector

M12 plug connector (male), solder type

XS2G-D421

M12 connector

M12 socket connector (female), solder type

XS2C-D421

IP67 cap for M12 sockets

Metal cap for unused I/O connections

XS2Z-12
