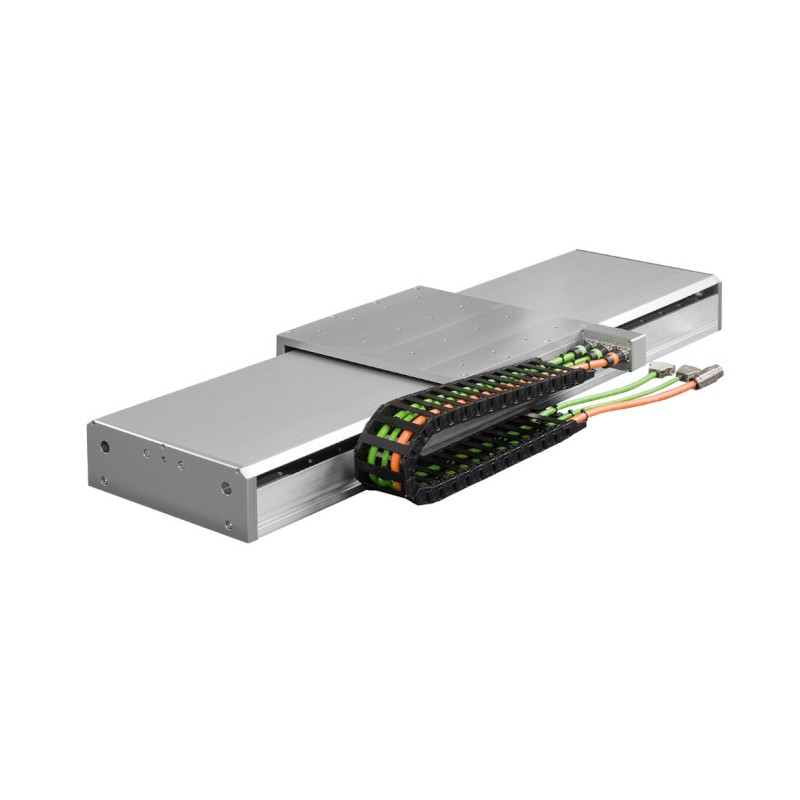

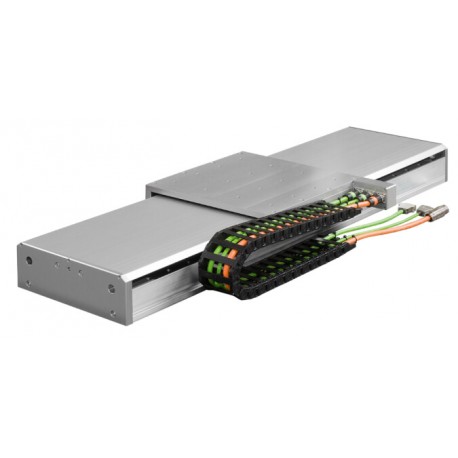

R88A-CAWL005S-DE AA010685H 171446 OMRON 400-V-Linearmotor-Stromkabel lt /lt 1k0W 5m
R88A-CAWL005S-DE
AA010685H
R88ACAWL005SDE
OMRON
Kabel leistung linear motor 400V1k0W 5m
400-V-Linearmotor-Stromkabel1k0W 5m
Servoantriebe > Zubehör Servoantriebe
* Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von OMRON
Related products
▲Bestseller
▲Mehr Infos
▲- Geringe bewegte Masse zu Gewährleistung einer hohen Dynamik
- Optimiertes Verhältnis zwischen Kolbenhub und Produktlänge
- Maximalgeschwindigkeit von 5 m/Sek. mit einer Wiederholgenauigkeit von 1 μm
- Kompakte und effiziente Konstruktion
- Vielseitig und sofort einsetzbar
- Nennwerte: 230/400 V AC, 48 bis 760 N (2000 N Spitzenkraft)
Spezifikationen & Bestellinfo
Ordering information
Note:
The symbols①②③…show the recommended sequence to select the servomotor, cables andserial converter for a linear motors system.
Linearmotor axis
230 VAC single phase/400 VAC threephase
| Symbol | Specifications | ②Linear servo drive | Order code 2 For effectivestroke distances available see dimensions section | ||
|---|---|---|---|---|---|
| Accurax G5 EtherCAT | |||||
| Rated force | Peak force | 230 V | 400 V | ||
| ① | 48 N | 120 N | R88D-KN02H-ECT-L | R88D-KN06F-ECT-L | R88L-EA-AF-0303-⬜⬜⬜⬜-0005 |
| 96 N | 240 N | R88D-KN04H-ECT-L | R88D-KN10F-ECT-L | R88L-EA-AF-0306-⬜⬜⬜⬜-0005 | |
| 160 N | 450 N | R88D-KN08H-ECT-L | R88D-KN15F-ECT-L | R88L-EA-AF-0606-⬜⬜⬜⬜-0005 | |
| 240 N | 675 N | R88D-KN10H-ECT-L | R88D-KN20F-ECT-L | R88L-EA-AF-0609-⬜⬜⬜⬜-0005 | |
| 320 N | 900 N | R88D-KN15H-ECT-L | R88D-KN30F-ECT-L | R88L-EA-AF-0612-⬜⬜⬜⬜-0005 | |
| 608 N | 1800 N | R88D-KN15H-ECT-L | R88D-KN30F-ECT-L | R88L-EA-AF-1112-⬜⬜⬜⬜-0005 | |
| 760 N | 2250 N | R88D-KN15H-ECT-L | R88D-KN30F-ECT-L | R88L-EA-AF-1115-⬜⬜⬜⬜-0005 | |
Servo drive
② Referto Accurax G5 servo drive chapter for detailed drive specificationsand selection of drive accessories.
Encodercable
| Symbol | Appearance | Specifications | Order code | |
|---|---|---|---|---|
| ③ |  | Encoder cable for linear motor axis (Connectors R88A-CNK41L and DB-15) | 1.5 m | R88A-CRKN001-5CR-E |
| 3 m | R88A-CRKN003CR-E | |||
| 5 m | R88A-CRKN005CR-E | |||
| 10 m | R88A-CRKN010CR-E | |||
| 15 m | R88A-CRKN015CR-E | |||
| 20 m | R88A-CRKN020CR-E | |||
Power cable
| Symbol | Appearance | Specifications | Order code | |
|---|---|---|---|---|
| ④ |  | For linear motor axis R88L-EA-AF-0303-_ R88L-EA-AF-0306-_ | 1.5 m | R88A-CAWK001-5S-DE |
| 3 m | R88A-CAWK003S-DE | |||
| 5 m | R88A-CAWK005S-DE | |||
| 10 m | R88A-CAWK010S-DE | |||
| 15 m | R88A-CAWK015S-DE | |||
| 20 m | R88A-CAWK020S-DE | |||
| For linear motor axis R88L-EA-AF-0606-_ R88L-EA-AF-0609-_ R88L-EA-AF-0612-_ R88L-EA-AF-1112-_ R88L-EA-AF-1115-_ | 1.5 m | R88A-CAWL001-5S-DE | ||
| 3 m | R88A-CAWL003S-DE | |||
| 5 m | R88A-CAWL005S-DE | |||
| 10 m | R88A-CAWL010S-DE | |||
| 15 m | R88A-CAWL015S-DE | |||
| 20 m | R88A-CAWL020S-DE | |||
Accessories for linearmotor models with optional encoders (non-standard encoder)
Serialconverter unit
| Specifications | Order code |
|---|---|
| Serial converter unit from 1 Vpp to G5 serialdata transmission (with KTY sensor detection of iron-core motorcoil) | R88A-SC01K-E |
| Serial converter unit from 1 Vpp to G5 serialdata transmission (with NTC sensor detection of ironless motor coil) | R88A-SC02K-E |
Note:
If no temperature sensor is needed, thenit does not matter which converter you use.
Linearencoder cable to serial converter
| Appearance | Specifications | Order code | |
|---|---|---|---|
 | Extension cable from linear encoder to -serial converter. (Connector DB-15) (This extension cable is optional) | 1.5 m | R88A-CFKA001-5CR-E |
| 3 m | R88A-CFKA003CR-E | ||
| 5 m | R88A-CFKA005CR-E | ||
| 10 m | R88A-CFKA010CR-E | ||
| 15 m | R88A-CFKA015CR-E | ||
Hall and temperaturesensors cable to serial converter
| Appearance | Specifications | Order code | |
|---|---|---|---|
 | Extension cable from hall and temperature sensors to serial converter. (Connector DB-9) (This extension cable is optional) | 1.5 m | R88A-CFKB001-5CR-E |
| 3 m | R88A-CFKB003CR-E | ||
| 5 m | R88A-CFKB005CR-E | ||
| 10 m | R88A-CFKB010CR-E | ||
| 15 m | R88A-CFKB015CR-E | ||
Connectors
| Specification | Order code |
|---|---|
| Accurax G5 servo drive encoder connector (forCN4) | R88A-CNK41L |
| Hypertac power cable connector IP67 | LPRA-06B-FRBN170 |
Dimensions
R88L-EA-AF-0303-_(230/400 VAC)
| Linear axis model | Effective stroke (mm) | L (mm) | n | N° of mounting holes | Weight of moving table including motor coil (kg) | Weight of the complete axis (kg) |
|---|---|---|---|---|---|---|
| R88L-EA-AF-0303-0110-0005 | 110 | 312 | 2 | 6 | 3.1 | 9.5 |
| R88L-EA-AF-0303-0206-0005 | 206 | 408 | 3 | 8 | 3.1 | 10.9 |
| R88L-EA-AF-0303-0302-0005 | 302 | 504 | 4 | 10 | 3.1 | 12.4 |
| R88L-EA-AF-0303-0398-0005 | 398 | 600 | 5 | 12 | 3.1 | 13.8 |
| R88L-EA-AF-0303-0494-0005 | 494 | 696 | 6 | 14 | 3.1 | 15.2 |
| R88L-EA-AF-0303-0590-0005 | 590 | 792 | 7 | 16 | 3.1 | 16.7 |
| R88L-EA-AF-0303-0686-0005 | 686 | 888 | 8 | 18 | 3.1 | 18.1 |
| R88L-EA-AF-0303-0782-0005 | 782 | 984 | 9 | 20 | 3.1 | 19.6 |
| R88L-EA-AF-0303-0878-0005 | 878 | 1080 | 10 | 22 | 3.1 | 21.0 |
| R88L-EA-AF-0303-0974-0005 | 974 | 1176 | 11 | 24 | 3.1 | 22.5 |
| R88L-EA-AF-0303-1070-0005 | 1070 | 1272 | 12 | 26 | 3.1 | 23.9 |
| R88L-EA-AF-0303-1166-0005 | 1166 | 1368 | 13 | 28 | 3.1 | 25.4 |
| R88L-EA-AF-0303-1262-0005 | 1262 | 1464 | 14 | 30 | 3.1 | 26.8 |
| R88L-EA-AF-0303-1358-0005 | 1358 | 1560 | 15 | 32 | 3.1 | 28.2 |
| R88L-EA-AF-0303-1454-0005 | 1454 | 1656 | 16 | 34 | 3.1 | 29.7 |
| R88L-EA-AF-0303-1550-0005 | 1550 | 1752 | 17 | 36 | 3.1 | 31.1 |
| R88L-EA-AF-0303-1646-0005 | 1646 | 1848 | 18 | 38 | 3.1 | 32.6 |
| R88L-EA-AF-0303-1742-0005 | 1742 | 1944 | 19 | 40 | 3.1 | 34.0 |
| R88L-EA-AF-0303-1838-0005 | 1838 | 2040 | 20 | 42 | 3.1 | 35.5 |
| R88L-EA-AF-0303-1934-0005 | 1934 | 2136 | 21 | 44 | 3.1 | 36.9 |
| R88L-EA-AF-0303-2030-0005 | 2030 | 2232 | 22 | 46 | 3.1 | 38.3 |
| R88L-EA-AF-0303-2126-0005 | 2126 | 2328 | 23 | 48 | 3.1 | 39.8 |
R88L-EA-AF-0306-_ (230/400 VAC)
| Linear axis model | Effective stroke (mm) | L (mm) | n | N° of mounting holes | Weight of moving table including motor coil (kg) | Weight of the complete axis (kg) |
|---|---|---|---|---|---|---|
| R88L-EA-AF-0306-0158-0005 | 158 | 408 | 3 | 8 | 3.9 | 11.6 |
| R88L-EA-AF-0306-0254-0005 | 254 | 504 | 4 | 10 | 3.9 | 13.1 |
| R88L-EA-AF-0306-0350-0005 | 350 | 600 | 5 | 12 | 3.9 | 14.5 |
| R88L-EA-AF-0306-0446-0005 | 446 | 696 | 6 | 14 | 3.9 | 15.9 |
| R88L-EA-AF-0306-0542-0005 | 542 | 792 | 7 | 16 | 3.9 | 17.4 |
| R88L-EA-AF-0306-0638-0005 | 638 | 888 | 8 | 18 | 3.9 | 18.8 |
| R88L-EA-AF-0306-0734-0005 | 734 | 984 | 9 | 20 | 3.9 | 20.3 |
| R88L-EA-AF-0306-0830-0005 | 830 | 1080 | 10 | 22 | 3.9 | 21.7 |
| R88L-EA-AF-0306-0926-0005 | 926 | 1176 | 11 | 24 | 3.9 | 23.2 |
| R88L-EA-AF-0306-1022-0005 | 1022 | 1272 | 12 | 26 | 3.9 | 24.6 |
| R88L-EA-AF-0306-1118-0005 | 1118 | 1368 | 13 | 28 | 3.9 | 26.1 |
| R88L-EA-AF-0306-1214-0005 | 1214 | 1464 | 14 | 30 | 3.9 | 27.5 |
| R88L-EA-AF-0306-1310-0005 | 1310 | 1560 | 15 | 32 | 3.9 | 28.9 |
| R88L-EA-AF-0306-1406-0005 | 1406 | 1656 | 16 | 34 | 3.9 | 30.4 |
| R88L-EA-AF-0306-1502-0005 | 1502 | 1752 | 17 | 36 | 3.9 | 31.8 |
| R88L-EA-AF-0306-1598-0005 | 1598 | 1848 | 18 | 38 | 3.9 | 33.3 |
| R88L-EA-AF-0306-1694-0005 | 1694 | 1944 | 19 | 40 | 3.9 | 34.7 |
| R88L-EA-AF-0306-1790-0005 | 1790 | 2040 | 20 | 42 | 3.9 | 36.2 |
| R88L-EA-AF-0306-1886-0005 | 1886 | 2136 | 21 | 44 | 3.9 | 37.6 |
| R88L-EA-AF-0306-1982-0005 | 1982 | 2232 | 22 | 46 | 3.9 | 39.0 |
| R88L-EA-AF-0306-2078-0005 | 2078 | 2328 | 23 | 48 | 3.9 | 40.5 |
R88L-EA-AF-0606-_ (230/400 VAC)
| Linear axis model | Effective stroke (mm) | L (mm) | n | N° of mounting holes | Weight of moving table including motor coil (kg) | Weight of the complete axis (kg) |
|---|---|---|---|---|---|---|
| R88L-EA-AF-0606-0110-0005 | 110 | 360 | 3 | 8 | 5.4 | 14.1 |
| R88L-EA-AF-0606-0206-0005 | 206 | 456 | 4 | 10 | 5.4 | 15.9 |
| R88L-EA-AF-0606-0302-0005 | 302 | 552 | 5 | 12 | 5.4 | 17.6 |
| R88L-EA-AF-0606-0398-0005 | 398 | 648 | 6 | 14 | 5.4 | 19.3 |
| R88L-EA-AF-0606-0494-0005 | 494 | 744 | 7 | 16 | 5.4 | 21.0 |
| R88L-EA-AF-0606-0590-0005 | 590 | 840 | 8 | 18 | 5.4 | 22.8 |
| R88L-EA-AF-0606-0686-0005 | 686 | 936 | 9 | 20 | 5.4 | 24.5 |
| R88L-EA-AF-0606-0782-0005 | 782 | 1032 | 10 | 22 | 5.4 | 26.2 |
| R88L-EA-AF-0606-0878-0005 | 878 | 1128 | 11 | 24 | 5.4 | 28.0 |
| R88L-EA-AF-0606-0974-0005 | 974 | 1224 | 12 | 26 | 5.4 | 29.7 |
| R88L-EA-AF-0606-1070-0005 | 1070 | 1320 | 13 | 28 | 5.4 | 31.4 |
| R88L-EA-AF-0606-1166-0005 | 1166 | 1416 | 14 | 30 | 5.4 | 33.2 |
| R88L-EA-AF-0606-1262-0005 | 1262 | 1512 | 15 | 32 | 5.4 | 34.9 |
| R88L-EA-AF-0606-1358-0005 | 1358 | 1608 | 16 | 34 | 5.4 | 36.6 |
| R88L-EA-AF-0606-1454-0005 | 1454 | 1704 | 17 | 36 | 5.4 | 38.4 |
| R88L-EA-AF-0606-1550-0005 | 1550 | 1800 | 18 | 38 | 5.4 | 40.1 |
| R88L-EA-AF-0606-1646-0005 | 1646 | 1896 | 19 | 40 | 5.4 | 41.8 |
| R88L-EA-AF-0606-1742-0005 | 1742 | 1992 | 20 | 42 | 5.4 | 43.6 |
| R88L-EA-AF-0606-1838-0005 | 1838 | 2088 | 21 | 44 | 5.4 | 45.3 |
| R88L-EA-AF-0606-1934-0005 | 1934 | 2184 | 22 | 46 | 5.4 | 47.0 |
| R88L-EA-AF-0606-2030-0005 | 2030 | 2280 | 23 | 48 | 5.4 | 48.8 |
| R88L-EA-AF-0606-2126-0005 | 2126 | 2376 | 24 | 50 | 5.4 | 50.5 |
R88L-EA-AF-0609-_ (230/400 VAC)
| Linear axis model | Effective stroke (mm) | L (mm) | n | N° of mounting holes | Weight of moving table including motor coil (kg) | Weight of the complete axis (kg) |
|---|---|---|---|---|---|---|
| R88L-EA-AF-0609-0158-0005 | 158 | 456 | 4 | 10 | 6.7 | 17.2 |
| R88L-EA-AF-0609-0254-0005 | 254 | 552 | 5 | 12 | 6.7 | 18.9 |
| R88L-EA-AF-0609-0350-0005 | 350 | 648 | 6 | 14 | 6.7 | 20.6 |
| R88L-EA-AF-0609-0446-0005 | 446 | 744 | 7 | 16 | 6.7 | 22.3 |
| R88L-EA-AF-0609-0542-0005 | 542 | 840 | 8 | 18 | 6.7 | 24.1 |
| R88L-EA-AF-0609-0638-0005 | 638 | 936 | 9 | 20 | 6.7 | 25.8 |
| R88L-EA-AF-0609-0734-0005 | 734 | 1032 | 10 | 22 | 6.7 | 27.5 |
| R88L-EA-AF-0609-0830-0005 | 830 | 1128 | 11 | 24 | 6.7 | 29.3 |
| R88L-EA-AF-0609-0926-0005 | 926 | 1224 | 12 | 26 | 6.7 | 31.0 |
| R88L-EA-AF-0609-1022-0005 | 1022 | 1320 | 13 | 28 | 6.7 | 32.7 |
| R88L-EA-AF-0609-1118-0005 | 1118 | 1416 | 14 | 30 | 6.7 | 34.5 |
| R88L-EA-AF-0609-1214-0005 | 1214 | 1512 | 15 | 32 | 6.7 | 36.2 |
| R88L-EA-AF-0609-1310-0005 | 1310 | 1608 | 16 | 34 | 6.7 | 37.9 |
| R88L-EA-AF-0609-1406-0005 | 1406 | 1704 | 17 | 36 | 6.7 | 39.7 |
| R88L-EA-AF-0609-1502-0005 | 1502 | 1800 | 18 | 38 | 6.7 | 41.4 |
| R88L-EA-AF-0609-1598-0005 | 1598 | 1896 | 19 | 40 | 6.7 | 43.1 |
| R88L-EA-AF-0609-1694-0005 | 1694 | 1992 | 20 | 42 | 6.7 | 44.9 |
| R88L-EA-AF-0609-1790-0005 | 1790 | 2088 | 21 | 44 | 6.7 | 46.6 |
| R88L-EA-AF-0609-1886-0005 | 1886 | 2184 | 22 | 46 | 6.7 | 48.3 |
| R88L-EA-AF-0609-1982-0005 | 1982 | 2280 | 23 | 48 | 6.7 | 50.1 |
| R88L-EA-AF-0609-2078-0005 | 2078 | 2376 | 24 | 50 | 6.7 | 51.8 |
R88L-EA-AF-06012-_ (230/400 VAC)
| Linear axis model | Effective stroke (mm) | L (mm) | n | N° of mounting holes | Weight of moving table including motor coil (kg) | Weight of the complete axis (kg) |
|---|---|---|---|---|---|---|
| R88L-EA-AF-0612-0110-0005 | 110 | 456 | 4 | 10 | 7.9 | 18.3 |
| R88L-EA-AF-0612-0206-0005 | 206 | 552 | 5 | 12 | 7.9 | 20.0 |
| R88L-EA-AF-0612-0302-0005 | 302 | 648 | 6 | 14 | 7.9 | 21.7 |
| R88L-EA-AF-0612-0398-0005 | 398 | 744 | 7 | 16 | 7.9 | 23.4 |
| R88L-EA-AF-0612-0494-0005 | 494 | 840 | 8 | 18 | 7.9 | 25.2 |
| R88L-EA-AF-0612-0590-0005 | 590 | 936 | 9 | 20 | 7.9 | 26.9 |
| R88L-EA-AF-0612-0686-0005 | 686 | 1032 | 10 | 22 | 7.9 | 28.6 |
| R88L-EA-AF-0612-0782-0005 | 782 | 1128 | 11 | 24 | 7.9 | 30.4 |
| R88L-EA-AF-0612-0878-0005 | 878 | 1224 | 12 | 26 | 7.9 | 32.1 |
| R88L-EA-AF-0612-0974-0005 | 974 | 1320 | 13 | 28 | 7.9 | 33.8 |
| R88L-EA-AF-0612-1070-0005 | 1070 | 1416 | 14 | 30 | 7.9 | 35.6 |
| R88L-EA-AF-0612-1166-0005 | 1166 | 1512 | 15 | 32 | 7.9 | 37.3 |
| R88L-EA-AF-0612-1262-0005 | 1262 | 1608 | 16 | 34 | 7.9 | 39.0 |
| R88L-EA-AF-0612-1358-0005 | 1358 | 1704 | 17 | 36 | 7.9 | 40.8 |
| R88L-EA-AF-0612-1454-0005 | 1454 | 1800 | 18 | 38 | 7.9 | 42.5 |
| R88L-EA-AF-0612-1550-0005 | 1550 | 1896 | 19 | 40 | 7.9 | 44.2 |
| R88L-EA-AF-0612-1646-0005 | 1646 | 1992 | 20 | 42 | 7.9 | 46.0 |
| R88L-EA-AF-0612-1742-0005 | 1742 | 2088 | 21 | 44 | 7.9 | 47.7 |
| R88L-EA-AF-0612-1838-0005 | 1838 | 2184 | 22 | 46 | 7.9 | 49.4 |
| R88L-EA-AF-0612-1934-0005 | 1934 | 2280 | 23 | 48 | 7.9 | 50.2 |
| R88L-EA-AF-0612-2030-0005 | 2030 | 2376 | 24 | 50 | 7.9 | 52.9 |
R88L-EA-AF-1112-_ (230/400 VAC)
| Linear axis model | Effective stroke (mm) | L (mm) | n | N° of mounting holes | Weight of moving table including motor coil (kg) | Weight of the complete axis (kg) |
|---|---|---|---|---|---|---|
| R88L-EA-AF-1112-0110-0005 | 110 | 456 | 4 | 10 | 13.7 | 31.9 |
| R88L-EA-AF-1112-0206-0005 | 206 | 552 | 5 | 12 | 13.7 | 35.2 |
| R88L-EA-AF-1112-0302-0005 | 302 | 648 | 6 | 14 | 13.7 | 38.5 |
| R88L-EA-AF-1112-0398-0005 | 398 | 744 | 7 | 16 | 13.7 | 41.7 |
| R88L-EA-AF-1112-0494-0005 | 494 | 840 | 8 | 18 | 13.7 | 45.0 |
| R88L-EA-AF-1112-0590-0005 | 590 | 936 | 9 | 20 | 13.7 | 48.3 |
| R88L-EA-AF-1112-0686-0005 | 686 | 1032 | 10 | 22 | 13.7 | 51.5 |
| R88L-EA-AF-1112-0782-0005 | 782 | 1128 | 11 | 24 | 13.7 | 54.8 |
| R88L-EA-AF-1112-0878-0005 | 878 | 1224 | 12 | 26 | 13.7 | 58.1 |
| R88L-EA-AF-1112-0974-0005 | 974 | 1320 | 13 | 28 | 13.7 | 61.3 |
| R88L-EA-AF-1112-1070-0005 | 1070 | 1416 | 14 | 30 | 13.7 | 64.6 |
| R88L-EA-AF-1112-1166-0005 | 1166 | 1512 | 15 | 32 | 13.7 | 67.9 |
| R88L-EA-AF-1112-1262-0005 | 1262 | 1608 | 16 | 34 | 13.7 | 71.1 |
| R88L-EA-AF-1112-1358-0005 | 1358 | 1704 | 17 | 36 | 13.7 | 74.4 |
| R88L-EA-AF-1112-1454-0005 | 1454 | 1800 | 18 | 38 | 13.7 | 77.7 |
| R88L-EA-AF-1112-1550-0005 | 1550 | 1896 | 19 | 40 | 13.7 | 80.9 |
| R88L-EA-AF-1112-1646-0005 | 1646 | 1992 | 20 | 42 | 13.7 | 84.2 |
| R88L-EA-AF-1112-1742-0005 | 1742 | 2088 | 21 | 44 | 13.7 | 87.5 |
| R88L-EA-AF-1112-1838-0005 | 1838 | 2184 | 22 | 46 | 13.7 | 90.8 |
| R88L-EA-AF-1112-1934-0005 | 1934 | 2280 | 23 | 48 | 13.7 | 94.0 |
| R88L-EA-AF-1112-2030-0005 | 2030 | 2376 | 24 | 50 | 13.7 | 97.3 |
| R88L-EA-AF-1112-2126-0005 | 2126 | 2472 | 25 | 52 | 13.7 | 100.6 |
R88L-EA-AF-1115-_ (230/400 VAC)
| Linear axis model | Effective stroke (mm) | L (mm) | n | N° of mounting holes | Weight of moving table including motor coil (kg) | Weight of the complete axis (kg) |
|---|---|---|---|---|---|---|
| R88L-EA-AF-1115-0158-0005 | 158 | 552 | 5 | 12 | 15.9 | 37.4 |
| R88L-EA-AF-1115-0254-0005 | 254 | 648 | 6 | 14 | 15.9 | 40.6 |
| R88L-EA-AF-1115-0350-0005 | 350 | 744 | 7 | 16 | 15.9 | 43.9 |
| R88L-EA-AF-1115-0446-0005 | 446 | 840 | 8 | 18 | 15.9 | 47.2 |
| R88L-EA-AF-1115-0542-0005 | 542 | 936 | 9 | 20 | 15.9 | 50.4 |
| R88L-EA-AF-1115-0638-0005 | 638 | 1032 | 10 | 22 | 15.9 | 53.7 |
| R88L-EA-AF-1115-0734-0005 | 734 | 1128 | 11 | 24 | 15.9 | 57.0 |
| R88L-EA-AF-1115-0830-0005 | 830 | 1224 | 12 | 26 | 15.9 | 60.2 |
| R88L-EA-AF-1115-0926-0005 | 926 | 1320 | 13 | 28 | 15.9 | 63.5 |
| R88L-EA-AF-1115-1022-0005 | 1022 | 1416 | 14 | 30 | 15.9 | 66.8 |
| R88L-EA-AF-1115-1118-0005 | 1118 | 1512 | 15 | 32 | 15.9 | 70.0 |
| R88L-EA-AF-1115-1214-0005 | 1214 | 1608 | 16 | 34 | 15.9 | 73.3 |
| R88L-EA-AF-1115-1310-0005 | 1310 | 1704 | 17 | 36 | 15.9 | 76.6 |
| R88L-EA-AF-1115-1406-0005 | 1406 | 1800 | 18 | 38 | 15.9 | 79.8 |
| R88L-EA-AF-1115-1502-0005 | 1502 | 1896 | 19 | 40 | 15.9 | 83.1 |
| R88L-EA-AF-1115-1598-0005 | 1598 | 1992 | 20 | 42 | 15.9 | 86.4 |
| R88L-EA-AF-1115-1694-0005 | 1694 | 2088 | 21 | 44 | 15.9 | 89.6 |
| R88L-EA-AF-1115-1790-0005 | 1790 | 2184 | 22 | 46 | 15.9 | 92.9 |
| R88L-EA-AF-1115-1886-0005 | 1886 | 2280 | 23 | 48 | 15.9 | 96.2 |
| R88L-EA-AF-1115-1982-0005 | 1982 | 2376 | 24 | 50 | 15.9 | 99.4 |
| R88L-EA-AF-1115-2078-0005 | 2078 | 2472 | 25 | 52 | 15.9 | 102.7 |
| R88L-EA-AF-1115-2174-0005 | 2174 | 2568 | 26 | 54 | 15.9 | 106.0 |
Datasheet - PDF
▲| Titel: | Größe: | Typ: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 28 Mbytes |
|
| PDF KATALOG OMRON DE.pdf | 91 Mbytes |
|
| R88A-CAWL005S-DE R88ACAWL005SDE AA010685H i17e_sglg_sglf_sglt_sigma_linear_motors_datasheet_de.pdf | 2 Mbytes |
|
Bewertungen (0) ▲
Es gibt keine Produktbewertungenvor.
Bewertung abgeben
Formular verstecken
| Wertung: |
|
| Name: | |
| E-Mail : | |
| Betreff: | |
| Text: | |
| Haben Sie dieses Produkt empfehlen zu kaufen? | |
|
|
|
| Bewertung abgeben | |
Alle Bewertungen wir von den Einzelteilen erhalten wir anbieten, sind real und verifiziert. Eine kleine Geste, aber sehr wertvoll. Also danke für die Minute, die Sie in, dass Sie uns Ihre Meinung und Bewertung von Produkten ausgeben, weil es mir hilft, weiter zu verbessern und noch mehr Servicequalität zu bieten.
