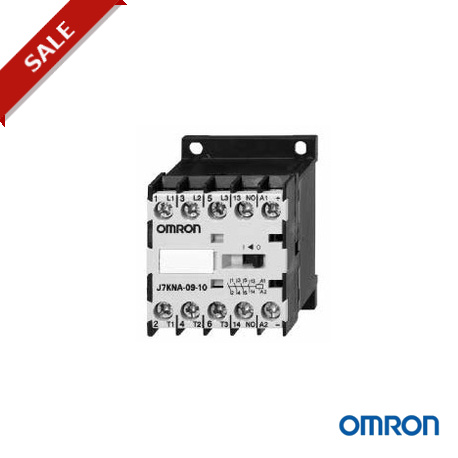

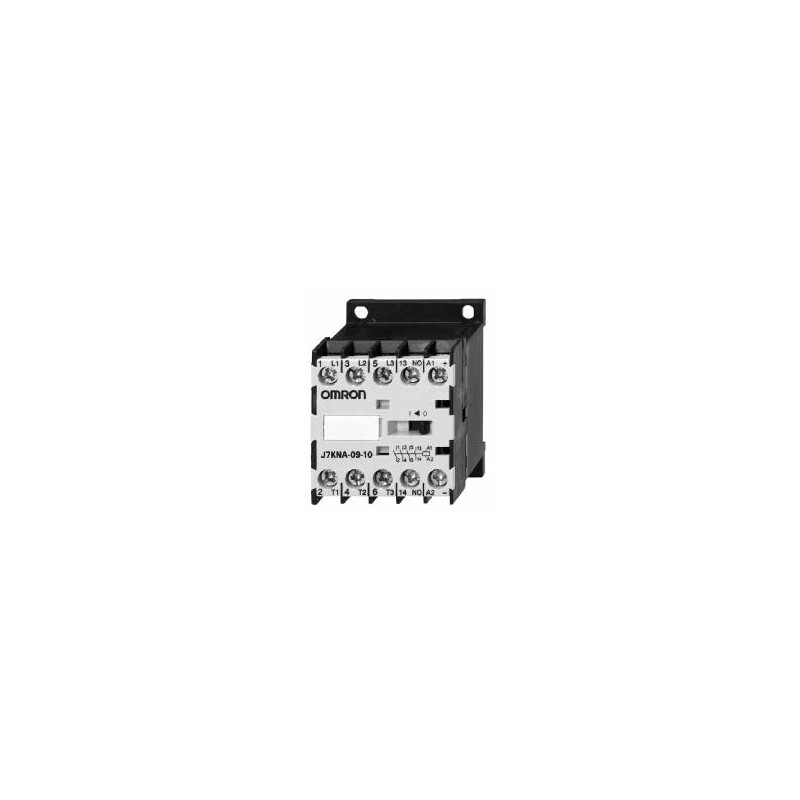

Mini Motor Contactor
J7KNA )
Main contactor
• AC & DC operated
• Integrated auxiliary contacts
• Screw fixing and snap fitting (35 mm DIN-rail)
• Range from 4 to 5.5 kW (AC 3, 380/415V)
• 4 -main pole version (4 kW AC and DC coil)
• Auxiliary contacts suitable for electronic devices (DIN 19240)
• Finger proof (BGV A2)
• Mirror Contacts (NC) according to IEC 60947-4-1 for safety applications
Accessories
• 2 and 4 pole additional auxiliary contacts in different configurations
• Mechanical interlock (in reversing contactor combination only)
• RC Suppressors
• Link modules for fuseless Load Feeders
• Insulated wiring systems (parallel, Star-delta combinations)
Approved Standards
Standard Standard Guide No (US,C)
UL VDE 0660 NLDX, NLDX7
ICE 947-5-1 EN 60947-5-1
Ordering Information
■ Model Number Legend
1. Mini Motor Contactors
J7KNA-##-## #####
48VS: DC48V with diode
110VS: DC110V with diode
125VS: DC125V with diode
2. Aux. Contact Modules for Mini Motor Contactors
1 2 3 4 J73KN-##-##
1 2 3
1) Mini Contactor
2) Rated Motor Current (AC3 400V)
09: 9A
12: 12A
3) Integrated auxiliary contact
10: 1 NC 0 NC
01: 0 NO 1NC
4: 4 main pole type (no aux contact)
4) R: Reversing Contactor
5) Coil voltage (AC operated)1)
24: AC24V 50/60Hz
48: AC48V 50Hz
60: AC60V 50Hz
110: AC110-115V 50Hz, AC120-125V 60Hz
180: AC180-210V 50Hz, AC200-240V 60Hz
230: AC220-230V 50Hz, AC240V 60Hz
240: AC230V-240V 50Hz
400: AC380-400V 50Hz, AC440V 60Hz
415: AC400-415V 50Hz
Coil voltage (DC operated)
24D: DC24V
48D: DC48V
60D: DC60V
110D: DC110V
24VS: DC24V with diode
1) See datasheet J7KN Motor Contactor for RC-suppressor units.
1) Auxiliary Contact Modules
2) A: for mini motor contactor (DIN EN 50005) AM: for mini motor contactor (DIN EN 50012)
3) Combination of NO/NC contacts
11: 1 NO 1 NC
02: 0 NO 2 NC
04: 0 NO 4 NC
22: 2 NO 2 NC
40: 4 NO 0 NC
4) for Reversing Contactors v: left side
x: right side
3. Insulated wiring systems for motor contactors
J74-WKR-A
1 2 3
1) Additional reference for LVSG
2) WKR: Wiring Kit Reverser
3) Version
4. Accessories for mini motor contactors/
contactor relays (RC suppressor units)
J74KN-D-RC##
1 2 3 4
1) Additional reference for LVSG
2) D: J7KNA(-AR)
3) RC = RC suppressor unit
4) Voltage
Mini Motor Contactor J7KNA 1
