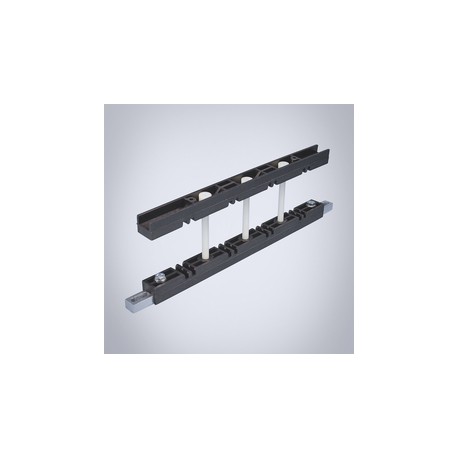

ECBS205TN
ELDON
1
Verfügbar Schiff am heute
Unterstützung von barcode-2x5 TN, 1/2 laib phase, dicke 5mm, bis 1600A
Unterstützung bar 2x5 TN, 1/2 Takte pro phase, Dicke 5mm, bis 1600A
This busbar support, ECBS, is available for one or two bars up to 80 x 5 mm or one bar up to 80 x 10 mm. The support can be mounted both horizontally and vertically. It is available off the shelf and tested according to IEC 61439.
Energieverteilsysteme/Schaltanlagen > Zubehör/Ersatzteile für Sammelschienen
Stromverteilung
* Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von ELDON
Danke für Ihr Interesse an unseren Produkten, wir hoffen die Lieferzeit ist ok.
Während der Bestellung können Sie den für Sie bestmöglichen Versand wählen: Express 24h, Standard 48h/72h, etc.
Beschreibung: | Busbar support up to 1600A to be mounted horizontally or vertically. Mounts directly to the enclosure frame or with help of CLPF profiles. Available in single and double bar per phase for bar thickness 5 mm and only single bar per phase for bar thickness 10 mm, and width from 25 to 80 mm. |
Arbeitstemperatur: | -40ºC up to 130ºC. |
Material: | Reinforced polyamide and steel. Halogen free. |
Lieferumfang: | Busbar support with mounting material. |
Feature: | Busbar support for 1 or 2 bars up to 80 x 5 mm or 1 bar up to 80 x 10 mm, mounted either horizontally or vertically. |
Advantage: | The standard supports are available off the shelf and have been tested according to IEC 61439. The supports are suitable for the most common bars on the market. |
Benefit: | A flexible and reliable solution with a short delivery time, that ensures procurement, design and installation can be done efficiently reducing the labour time required. |
Comment: | Either click-in profiles (CLPK), or mounting profiles (CLPF) are required. |
Titel: | Größe: | Typ: |
---|---|---|
ECBS205TN ECBS205TN DE_ECBS110TN.pdf | 137 Kbytes | |
Gesamtkatalog herunterladen |
