Vergrößern

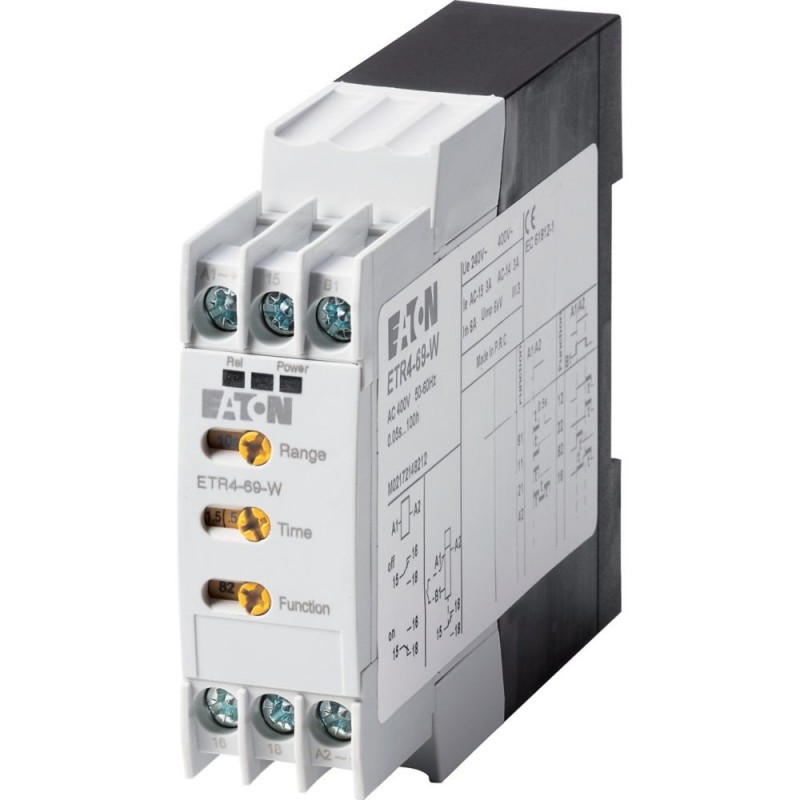

ETR4-69-W 031887 Y7-31887 EATON ELECTRIC Zeitrelais, 1 W, 0,05 s 100 h, Multifunktion, 400 V AC
ETR4-69-W
031887
Y7-31887
EATON-MOELLER
Zeitrelais, 1 W, 0,05 s - 100 h, Multifunktion, 400 V AC
Eaton Moeller® series ETR4 Timing relay, 1W, 0.05s-100h, multi-function, 400VAC
Elektronisches Zeitrelais nach IEC/EN 61812-1, VDE 0435, 22,5 mm breit, Zeitbereich 0,05s-100h, mechanische Lebensdauer 30 * 106, DIN-Hutschienenmontage, jede gewünschte Einbaulage, 400VAC, multifunktional, Industrieformfaktor
Relais > Zeitrelais
Relais-Timer (KETR, KEMR, KESR)
Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von EATON-MOELLER
Bestseller
▲Mehr Infos
▲Allgemeine Spezifikation
Product Name
Eaton Moeller® series ETR4 Timing relay
Catalog Number
031887
Product Length/Depth
103 mm
Product Height
83 mm
Product Width
23 mm
Product Weight
0.109 kg
Certifications
VDE 0435
IEC/EN 61000-4-3
Standard IEC/EN 61812
IEC/EN 61000-4-2
IEC/EN 61000-4-3
Standard IEC/EN 61812
IEC/EN 61000-4-2
EAN
4015080318873
Model Code
ETR4-69-W
Merkmale und Funktionen
Electric connection type
Screw connection
Functions
Clock function, starting with pulse, variable
Fleeting contact on de-energization
Multi-functional
Adjustable timing function
Delay on de-energization
Fleeting contact on energization
Flashing, pulse initiating
On- and Off-delayed
Delay-on energization
Flashing, starting with pause, fixed time
Outputs, reversible delayed/undelayed
Flashing, starting with pulse, fixed time
On-delayed
Off-delayed
Pulse generating
Clock function, starting with pause, variable
Pulse shaping
Pulse forming
Fleeting contact on de-energization
Multi-functional
Adjustable timing function
Delay on de-energization
Fleeting contact on energization
Flashing, pulse initiating
On- and Off-delayed
Delay-on energization
Flashing, starting with pause, fixed time
Outputs, reversible delayed/undelayed
Flashing, starting with pulse, fixed time
On-delayed
Off-delayed
Pulse generating
Clock function, starting with pause, variable
Pulse shaping
Pulse forming
Allgemein
Degree of protection
Terminals: IP20
IP20
IP20
Lifespan, mechanical
30,000,000 Operations (DC operated)
30,000,000 Operations (AC operated)
30,000,000 Operations (AC operated)
Mounting position
As required
Number of contacts (change-over contacts)
1
Overvoltage category
III
Pollution degree
2
Product category
ETR4 timing relays
Rated impulse withstand voltage (Uimp)
6000 V AC
Shock resistance
4 g, Make contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 20 ms
Suitable for
DIN rail (top hat rail) mounting
Terminal capacity
2 x (0.5 - 1.5) mm², solid
1 x (0.5 - 2.5) mm², solid
1 x (0.5 - 2.5) mm², flexible with ferrule
1 x (20 - 14) AWG, solid or stranded
2 x (0.5 - 1.5) mm², flexible with ferrule
1 x (0.5 - 2.5) mm², solid
1 x (0.5 - 2.5) mm², flexible with ferrule
1 x (20 - 14) AWG, solid or stranded
2 x (0.5 - 1.5) mm², flexible with ferrule
Time range - min
0.05 s
Time range - max
360000 s
Type
Timer relay
Voltage type
AC
Klimatische Umweltbedingungen
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C
Ambient operating temperature (enclosed) - min
-25 °C
Ambient operating temperature (enclosed) - max
45 °C
Ambient storage temperature - min
-45 °C
Ambient storage temperature - max
85 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78
Damp heat, constant, to IEC 60068-2-78
Elektromagnetische Verträglichkeit
Air discharge
8 kV
Burst impulse
1 kV, Signal cable
According to IEC/EN 61000-4-4
2 kV, Supply cable
According to IEC/EN 61000-4-4
2 kV, Supply cable
Contact discharge
6 kV
Electromagnetic fields
3 V/m at 1.4 - 2 GHz (according to IEC EN 61000-4-3)
1 V/m at 2.0 - 2.7 GHz (according to IEC EN 61000-4-3)
10 V/m at 80 - 1000 MHz (according to IEC EN 61000-4-3)
1 V/m at 2.0 - 2.7 GHz (according to IEC EN 61000-4-3)
10 V/m at 80 - 1000 MHz (according to IEC EN 61000-4-3)
Immunity to line-conducted interference
10 V (according to IEC/EN 61000-4-6)
Radio interference class
Class B (EN 55011, conducted)
Class B (EN 55011, radiated)
Class B (EN 55011, radiated)
Surge rating
2 kV, symmetrical, power pulses (Surge), EMC
4 kV, asymmetrical, power pulses (Surge), EMC
According to IEC/EN 61000-4-5, power pulses (Surge), EMC
4 kV, asymmetrical, power pulses (Surge), EMC
According to IEC/EN 61000-4-5, power pulses (Surge), EMC
Bemessungswerte
Conventional thermal current ith of auxiliary contacts (1-pole, open)
6 A
Mains voltage tolerance
400 V AC (at 50/60 Hz)
Nominal current
3 A
Rated breaking capacity
3 A at AC-15 (cos ϕ = 0.3 220 V)
3 A at AC-14 (cos ϕ = 0.3 440 V)
1.1 x Iₑ (DC-11 L/R - 40 ms)
3 A at AC-14 (cos ϕ = 0.3 440 V)
1.1 x Iₑ (DC-11 L/R - 40 ms)
Rated insulation voltage (Ui)
600 V
Rated making capacity
1.1 x Iₑ (DC-11 L/R - 40 ms)
48 A (AC-14 cos ϕ = 0.3 400 V)
50 A (AC-15 cos ϕ = 0.3 220 V)
48 A (AC-14 cos ϕ = 0.3 400 V)
50 A (AC-15 cos ϕ = 0.3 220 V)
Rated operational current (Ie)
3 A at AC-14, 440 V
3 A at AC-14, 380 V 400 V 415 V
1.5 A at DC-11, 24 V
3 A at AC-15, 380 V 400 V 415 V
3 A at AC-15, 220 V 230 V 240 V
1.2 A at DC-11, L/R max. 50 ms
3 A at AC-14, 380 V 400 V 415 V
1.5 A at DC-11, 24 V
3 A at AC-15, 380 V 400 V 415 V
3 A at AC-15, 220 V 230 V 240 V
1.2 A at DC-11, L/R max. 50 ms
Rated operational voltage (Ue) at AC - max
440 V
Safe isolation
250 V AC, Between coil and auxiliary contacts, According to EN 61140
250 V AC, Between auxiliary contacts, According to EN 61140
250 V AC, Between auxiliary contacts, According to EN 61140
Short-circuit protection rating
Max. 6 A gG/gL, Fuse, Short-circuit rating without welding, Contacts
Max. 6 A gG/gL, fuse, Without welding, Contacts
Max. 6 A gG/gL, fuse, Without welding, Contacts
Magnetsystem
Command time
50 ms, AC
Contact changeover time
4 ms
Duty factor
100 %
Operating frequency
4000 Operations/h
Pick-up voltage
0.85 - 1.1 V AC x Uc
Power consumption
0.5 VA at AC (Sealing power)
0.5 VA at AC (Pick-up power)
0.5 VA at AC (Pick-up power)
Rated control supply voltage (Us) at AC, 50 Hz - min
400 V
Rated control supply voltage (Us) at AC, 50 Hz - max
400 V
Rated control supply voltage (Us) at AC, 60 Hz - min
400 V
Rated control supply voltage (Us) at AC, 60 Hz - max
400 V
Rated control supply voltage (Us) at DC - min
0 V
Rated control supply voltage (Us) at DC - max
0 V
Recovery time
70 ms (after 100 % time delay)
Repetition accuracy
≤ 0.5 % (deviation)
Bauartnachweis
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
1.4 W
Rated operational current for specified heat dissipation (In)
6 A
Static heat dissipation, non-current-dependent Pvs
0.5 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Merkmal | Wert |
|---|---|
| Ausführung des elektrischen Anschlusses (EF003961) | Schraubanschluss |
| Komplettgerät mit Sockel (EF003359) | Nein |
| Geeignet für Hutschienenmontage (EF007250) | Ja |
| Geeignet für Frontmontage (EF020288) | Nein |
| Aufsteckbar auf Schütz (EF006952) | Nein |
| Funktion ansprechverzögert (EF003374) | Ja |
| Funktion rückfallverzögert (EF003401) | Ja |
| Funktion einschaltwischend (EF003378) | Ja |
| Funktion ausschaltwischend (EF003402) | Ja |
| Funktion Stern/Dreieck (EF003380) | Nein |
| Funktion Impulsformend (EF003403) | Ja |
| Funktion blinkend mit Pause beginnend, Festzeit (EF003363) | Ja |
| Funktion blinkend mit Impuls beginnend, Festzeit (EF003364) | Ja |
| Funktion taktend mit Pause beginnend, variabel (EF003365) | Ja |
| Funktion taktend mit Impuls beginnend, variabel (EF003366) | Ja |
| Zeitbereich (EF003384) | 0.05 s |
| Fernbedienung möglich (EF003361) | Nein |
| Geeignet als Fernbedienung (EF003362) | Nein |
| Bemessungssteuerspeisespannung AC 50 Hz (EF003978) | 400 V |
| Bemessungssteuerspeisespannung AC 60 Hz (EF003979) | 400 V |
| Bemessungssteuerspeisespannung DC (EF003980) | 0 V |
| Spannungsart zur Betätigung (EF008242) | AC |
| Anzahl der Ausgänge, unverzögert, Öffner (EF006835) | 0 |
| Anzahl der Ausgänge, unverzögert, Schließer (EF006836) | 0 |
| Anzahl der Ausgänge, unverzögert, Wechsler (EF006837) | 1 |
| Anzahl der Ausgänge, verzögert, Öffner (EF006838) | 0 |
| Anzahl der Ausgänge, verzögert, Schließer (EF006839) | 0 |
| Anzahl der Ausgänge, verzögert, Wechsler (EF006840) | 1 |
| Ausgänge, umschaltbar verzögert/unverzögert (EF006988) | Ja |
| Mit Halbleiterausgang (EF003373) | Nein |
| Betriebsspannung AC 50 Hz (EF008206) | 400 V |
| Betriebsspannung AC 60 Hz (EF008207) | 400 V |
| Spannungsart der Betriebsspannung (EF005294) | AC |
| Nennstrom (EF000001) | 3 A |
| Schutzart (IP) (EF005474) | IP20 |
| Breite (EF000008) | 23 mm |
| Höhe (EF000040) | 83 mm |
| Tiefe (EF000049) | 103 mm |
Datasheet - PDF
▲| Titel: | Größe: | Typ: |
|---|---|---|
| PDF EATON EMR ERT EMT EN.pdf | 3 Mbytes |
|
| PDF EATON SAFETY RELAYS ESR5 EN.pdf | 1 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| ETR4-69-W Y7-31887 031887 ES_031883.pdf | 3 Mbytes |
|
Bewertungen (0) ▲
Es gibt keine Produktbewertungenvor.
Bewertung abgeben
Formular verstecken
| Wertung: |
|
| Name: | |
| E-Mail : | |
| Betreff: | |
| Text: | |
| Haben Sie dieses Produkt empfehlen zu kaufen? | |
|
|
|
| Bewertung abgeben | |
Alle Bewertungen wir von den Einzelteilen erhalten wir anbieten, sind real und verifiziert. Eine kleine Geste, aber sehr wertvoll. Also danke für die Minute, die Sie in, dass Sie uns Ihre Meinung und Bewertung von Produkten ausgeben, weil es mir hilft, weiter zu verbessern und noch mehr Servicequalität zu bieten.
