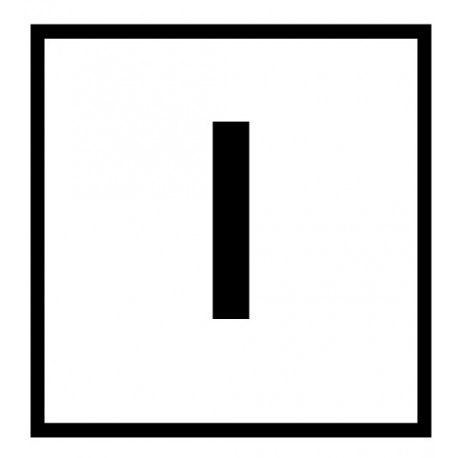

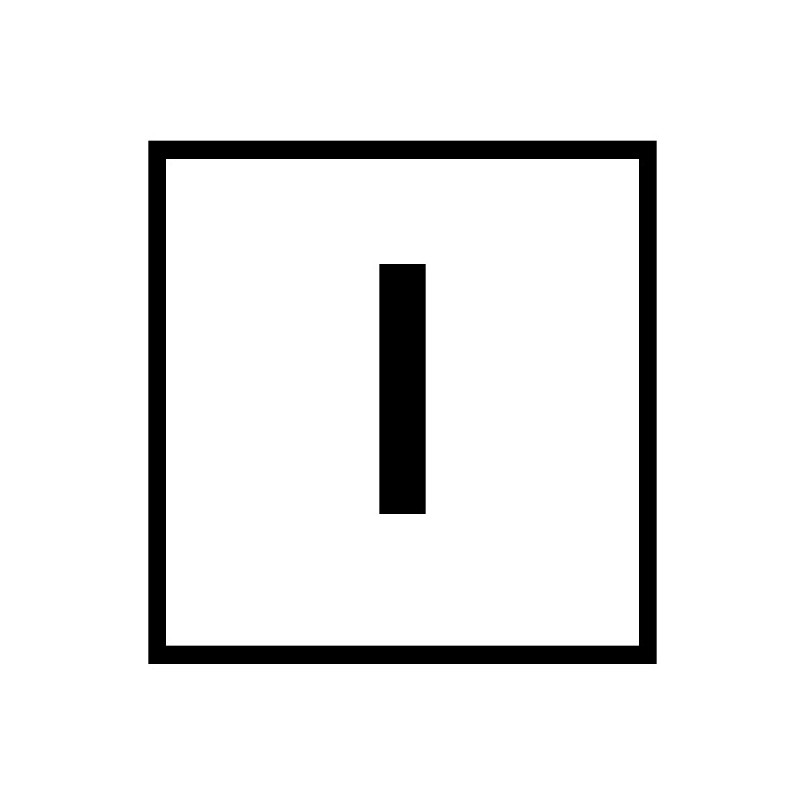

20TQ25 054507 EATON ELECTRIC Tastenplatte, weiß, Symbol START/EIN
20TQ25
054507
Y7-54507
EATON-MOELLER
Tastenplatte, weiß, Symbol START/EIN
Beschriftungsanzeigeplatte: Weißes "START"-Symbol für RMQ16 25x25
Eaton Moeller® series RMQ16 Button plate, 25 x 25 mm, white, symbol Start/On
Niederspannungsschaltgeräte > Tastenplatte für Befehls- und Meldegeräte
Hilfskontroll- und Signalelemente
* Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von EATON-MOELLER
Bestseller
▲Mehr Infos
▲Allgemeine Spezifikation
Product Name
Eaton Moeller® series RMQ16 Accessory Button plate
Catalog Number
054507
Product Length/Depth
3 mm
Product Height
19 mm
Product Width
19 mm
Product Weight
0.002 kg
Certifications
UL/CSA certification not required
EAN
4015080545071
Model Code
20TQ25
Merkmale und Funktionen
Color
White
Inscription
Other
Shape
Square
Allgemein
Product Category
Accessories
Size
25 × 25 mm
Suitable for
Push button
Klimatische Umweltbedingungen
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C
Kommunikation
Connection to SmartWire-DT
No
Bauartnachweis
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Datasheet - PDF
▲| Titel: | Größe: | Typ: |
|---|---|---|
| PDF EATON COMMAND INDICATION EN.pdf | 23 Mbytes |
|
| PDF CATALOGUE EATON EN.pdf | 51 Mbytes |
|
| 20TQ25 Y7-54507 054507 EN_025434.pdf | 1 Mbytes |
|
