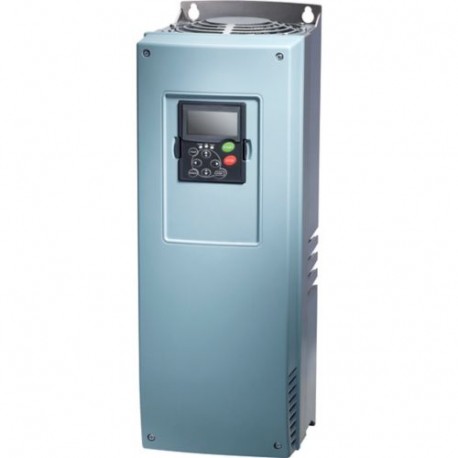

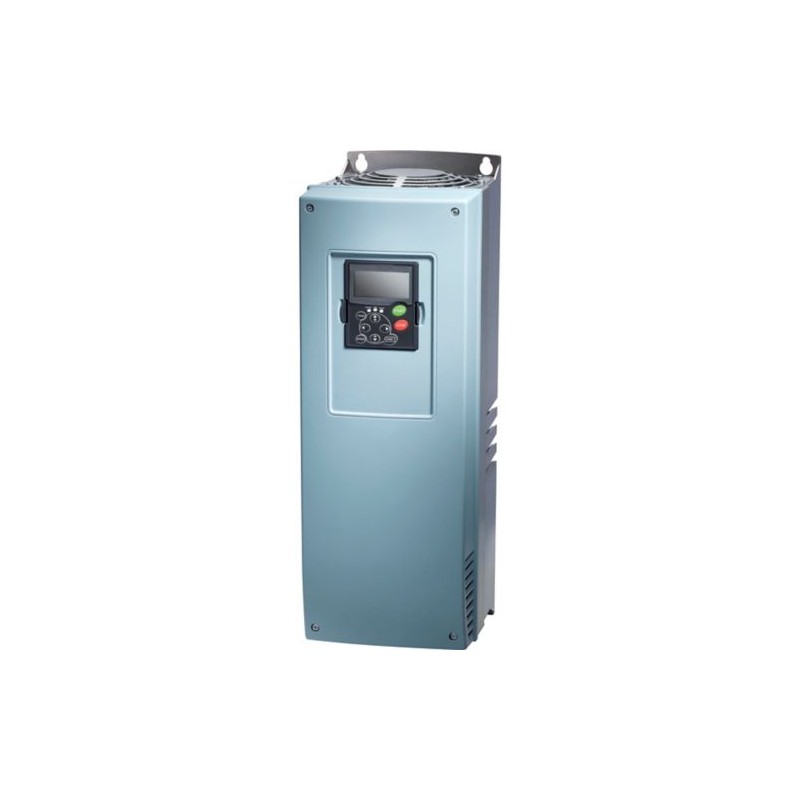

SVX004A1-5A4N2 180537 EATON ELECTRIC Frequenzumrichter

Name: SVX004A1-5A4N2 180537 EATON ELECTRIC Frequenzumrichter
Brand: EATON-MOELLER
SKU: ETN180537
Availability: Discontinued

0/5 - 0 Opiniones

Artikel-Nr.: SVX004A1-5A4N2

Code: 180537

Hersteller: EATON-MOELLER

Beschreibung:

Frequenzumrichter

SVX FreqD 4kW 690V IP21 m/Beschichtung

Mehr Infos

Kategorien
Niederspannungsschaltgeräte > Frequenzumrichter unter 1 kV

Eaton Frequenzumrichter

Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von EATON-MOELLER

Garantie, Reparatur, Umtausch.

* Dieser Artikel ist möglicherweise veraltet. Wenn Sie interessiert sind, fordern Sie uns ein Angebot und wir teilen Ihnen mit, ob Einheiten verfügbar sind. Sollten keine weiteren vorhanden sein, sucht einer unserer Techniker nach einer lieferbaren Alternative mit ähnlichen Eigenschaften.

Wenn unser Preis nicht der beste ist, fragen Sie uns nach einem Angebot Fordern Sie ein Angebot

ANGESEHENE ARTIKEL

Bestseller

▲

Mehr Infos

▲

Allgemeine Spezifikation

Product Name

Eaton SVX Variable frequency drive

Catalog Number

180537

Product Length/Depth

558 mm

Product Height

237 mm

Product Width

195 mm

Product Weight

18.5 kg

Certifications

CE
DNV
CE marking
UL 508C
RoHS, ISO 9001
CUL
CSA Class No.: 3211-06
UL File No.: E134360
IEC/EN 61800-5-1
UL Listed
RCM
UL
UL report applies to both US and Canada
Certified by UL for use in Canada
IEC/EN61800-5
CSA-C22.2 No. 14
UL Category Control No.: NMMS, NMMS2, NMMS7. NMMS8
IEC/EN 61800-2
IEC/EN 61800-3

EAN

4015081757022

Model Code

SVX004A1-5A4N2

Allgemein

Communication interface

PROFIBUS-DP
PROFINET, optional
LonWorks, optional
DeviceNet, optional
BACnet MS/TP, optional
Modbus-TCP, optional
EtherCAT, optional
Modbus-RTU, optional
CANopen®, optional
Ethernet IP, optional

Connection to SmartWire-DT

Degree of protection

IP21
NEMA Other

Electromagnetic compatibility

1st and 2nd environments (according to EN 61800-3)

Environmental class

3C2, 3S2 (Air quality)

Fitted with:

OLED display
Internal DC link
IGBT inverter
Additional PCB protection
Radio interference suppression filter

Frame size

FR6

Mounting position

Vertical

Product Category

Variable frequency drives

Protection

Finger and back-of-hand proof, Protection against direct contact (BGV A3, VBG4)

Radio interference class

C2, C3: depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary.

Suitable for

Branch circuits, (UL/CSA)

Klimatische Umweltbedingungen

Altitude

Above 1000 m with 1 % performance reduction per 100 m
Max. 3000 m
Max. 1000 m

Ambient operating temperature - min

-10 °C

Ambient operating temperature - max

50 °C

Ambient storage temperature - min

-40 °C

Ambient storage temperature - max

70 °C

Climatic proofing

< 95 % relative humidity, no condensation, no corrosion, no dripping water

Hauptkreis

Mains voltage - min

525 V

Mains voltage - max

690 V

Operating mode

U/f control
Sensorless vector control (SLV)

Output frequency - min

0 Hz

Output frequency - max

320 Hz

Output voltage (U2)

690 V AC, 3-phase
600 V AC, 3-phase

Rated control supply voltage

10 V DC (Us, max. 10 mA)

Rated frequency - min

45 Hz

Rated frequency - max

66 Hz

Rated operational current (Ie) at 110% overload

7.5 A

Rated operational current (Ie) at 150% overload

5.5 A

Rated operational power at 690 V, 50 Hz

4 kW

Rated operational power at 690 V, 50 Hz, 110% overload

5.5 kW

Rated operational voltage

600 V AC, 3-phase
690 V AC, 3-phase

Resolution

0.01 Hz (Frequency resolution, setpoint value)

Supply frequency

50/60 Hz

Switching frequency

1.5 kHz, 1 - 6 kHz adjustable, fPWM, Power section, Main circuit

System configuration type

AC supply systems with earthed center point

Voltage rating - max

690 V

Bemessungsbetriebsleistung

Assigned motor current IM at 690 V, 50 Hz, 110% overload

6.5 A

Assigned motor current IM at 690 V, 50 Hz, 150% overload

4.9 A

Assigned motor current IM at 690 V, 60 Hz, 110% overload

5.3 A

Assigned motor current IM at 690 V, 60 Hz, 150% overload

5.3 A

Assigned motor power at 690 V, 60 Hz

5 HP

Assigned motor power at 690 V, 60 Hz, 110% overload

5 HP

Steuerkreis

Number of inputs (analog)

2 (parameterizable, 0 - 10 V DC, 0/4 - 20 mA)

Number of inputs (digital)

6 (parameterizable, max. 30 V DC)

Number of outputs (analog)

Number of outputs (digital)

1 (parameterizable, 48 V DC/50 mA)

Number of relay outputs

2 (parameterizable, N/O, 8 A (24 V DC) / 8 A (250 V AC) / 0,4 A (125 V DC))

Rated control voltage (Uc)

24 V DC (external, max. 250 mA)

Bauartnachweis

Equipment heat dissipation, current-dependent Pvid

100 W

Heat dissipation capacity Pdiss

0 W

Heat dissipation per pole, current-dependent Pvid

0 W

Rated operational current for specified heat dissipation (In)

5.5 A

Static heat dissipation, non-current-dependent Pvs

0 W

10.2.2 Corrosion resistance
