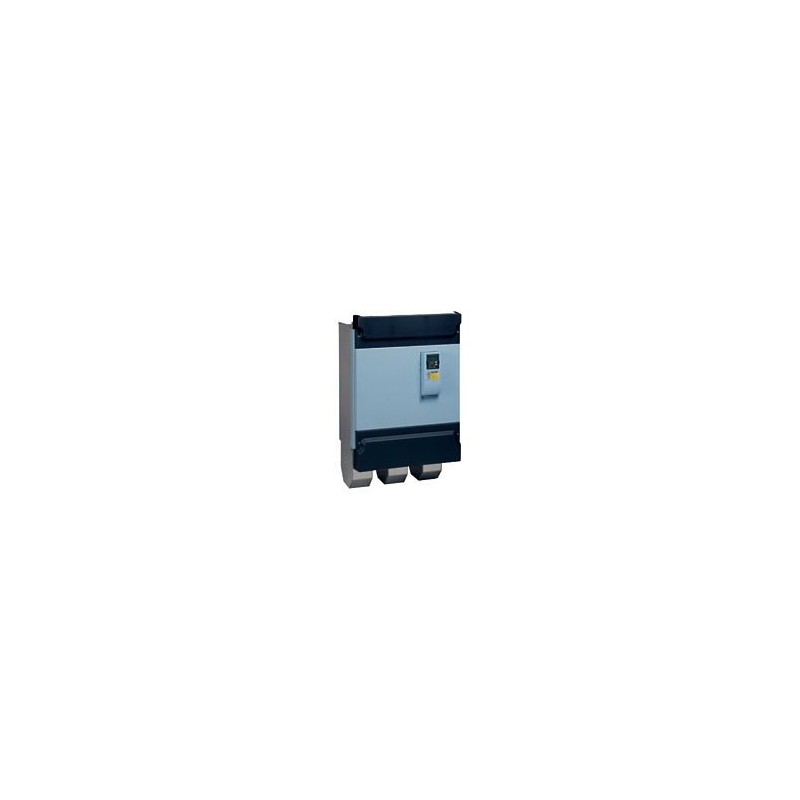

SPX400A0-5A2N1 129607 EATON ELECTRIC Frequenzumrichter, 600 V AC, 3-phasig, 355 kW, IP00, OLED-Anzeige, FR11
SPX400A0-5A2N1
129607
EATON-MOELLER
Frequenzumrichter, 600 V AC, 3-phasig, 355 kW, IP00, OLED-Anzeige, FR11
Frequenzumrichter; Hochleistung; 460 A; 450 kW; Schutzart IP00; 690 V Wechselstrom; EMV-Filter der Klasse C2
Niederspannungsschaltgeräte > Frequenzumrichter unter 1 kV
Eaton Frequenzumrichter
Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von EATON-MOELLER
Bestseller
▲Mehr Infos
▲Allgemeine Spezifikation
Product Name
Eaton SPX variable frequency drive
Catalog Number
129607
Product Length/Depth
1155 mm
Product Height
503 mm
Product Width
709 mm
Product Weight
350 kg
Certifications
RCM
Certified by UL for use in Canada
DNV
CSA Class No.: 3211-06
IEC/EN 61800-3
UL report applies to both US and Canada
Safety: EN 61800-5-1: 2003
UL File No.: E134360
UL Category Control No.: NMMS, NMMS2, NMMS7. NMMS8
UL
CUL
CSA-C22.2 No. 14
Specification for general requirements: IEC/EN 61800-2
CE
UL 508C
IEC/EN61800-3
IEC/EN61800-5
RoHS, ISO 9001
Certified by UL for use in Canada
DNV
CSA Class No.: 3211-06
IEC/EN 61800-3
UL report applies to both US and Canada
Safety: EN 61800-5-1: 2003
UL File No.: E134360
UL Category Control No.: NMMS, NMMS2, NMMS7. NMMS8
UL
CUL
CSA-C22.2 No. 14
Specification for general requirements: IEC/EN 61800-2
CE
UL 508C
IEC/EN61800-3
IEC/EN61800-5
RoHS, ISO 9001
EAN
4015081269341
Model Code
SPX400A0-5A2N1
Allgemein
Degree of protection
IP00
NEMA Other
NEMA Other
Electromagnetic compatibility
1st and 2nd environments (according to EN 61800-3)
Fitted with:
PC connection
Control unit
Internal DC link
OLED display
IGBT inverter
Control unit
Internal DC link
OLED display
IGBT inverter
Frame size
FR11
Functions
4-quadrant operation possible
Mounting position
Vertical
Product Category
Variable frequency drives
Protection
Finger and back-of-hand proof, Protection against direct contact (BGV A3, VBG4)
Radio interference class
C2, C3: depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary.
Suitable for
Branch circuits, (UL/CSA)
Klimatische Umweltbedingungen
Altitude
Above 1000 m with 1 % performance reduction per 100 m
Max. 1000 m
Max. 3000 m
Max. 1000 m
Max. 3000 m
Ambient operating temperature - min
-10 °C
Ambient operating temperature - max
40 °C
Ambient operating temperature at 150% overload - min
-10 °C
Ambient operating temperature at 150% overload - max
40 °C
Ambient storage temperature - min
-40 °C
Climatic proofing
< 95 % relative humidity, no condensation, no corrosion, no dripping water
Hauptkreis
Mains voltage - min
525 V
Mains voltage - max
690 V
Operating mode
Optional: Vector control with feedback (CLV)
Sensorless vector control (SLV)
U/f control
Sensorless vector control (SLV)
U/f control
Output frequency - min
0 Hz
Output frequency - max
320 Hz
Output voltage (U2)
690 V AC, 3-phase
600 V AC, 3-phase
600 V AC, 3-phase
Rated control supply voltage
10 V DC (Us, max. 10 mA)
Rated frequency - min
45 Hz
Rated frequency - max
66 Hz
Rated operational current (Ie) at 110% overload
460 A
Rated operational current (Ie) at 150% overload
385 A
Rated operational power at 690 V, 50 Hz, 3-phase
355 kW
Rated operational power at 690 V, 50 Hz, 3-phase, 110% overload
450 kW
Rated operational voltage
600 V AC, 3-phase
690 V AC, 3-phase
690 V AC, 3-phase
Resolution
0.01 Hz (Frequency resolution, setpoint value)
Supply frequency
50/60 Hz
Switching frequency
1.5 kHz, 1 - 6 kHz adjustable, fPWM, Power section, Main circuit
System configuration type
AC supply systems with earthed center point
Voltage rating - max
690 VAC
Bemessungsbetriebsleistung
Assigned motor current IM at 690 V, 50 Hz, 110% overload
446 A
Assigned motor current IM at 690 V, 60 Hz, 110% overload
358 A
Assigned motor current IM at 690 V, 60 Hz, 150% overload
332 A
Assigned motor power at 690 V, 60 Hz, 3-phase
400 HP
Assigned motor power at 690 V, 60 Hz, 3-phase, 110 % overload
450 HP
Steuerkreis
Number of inputs (analog)
2
Number of inputs (digital)
6
Number of outputs (analog)
1
Number of outputs (digital)
1
Number of relay outputs
2 (parameterizable, N/O, 8 A (24 V DC) / 8 A (250 V AC) / 0,4 A (125 V DC))
Rated control voltage (Uc)
24 V DC (external, max. 250 mA)
Kommunikation
Communication interface
LonWorks, optional
PROFIBUS-DP
BACnet/IP, optional
CANopen®, optional
DeviceNet, optional
Modbus-TCP, optional
BACnet MS/TP, optional
EtherCAT, optional
Ethernet IP, optional
Modbus-RTU, optional
PROFINET, optional
PROFIBUS-DP
BACnet/IP, optional
CANopen®, optional
DeviceNet, optional
Modbus-TCP, optional
BACnet MS/TP, optional
EtherCAT, optional
Ethernet IP, optional
Modbus-RTU, optional
PROFINET, optional
Connection to SmartWire-DT
No
Protocol
Other bus systems
LON
DeviceNet
Data-Highway
TCP/IP
PROFIBUS
CAN
LON
DeviceNet
Data-Highway
TCP/IP
PROFIBUS
CAN
Bauartnachweis
Equipment heat dissipation, current-dependent Pvid
8875 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
385 A
Static heat dissipation, non-current-dependent Pvs
0 W
Heat dissipation details
Operation (with 150 % overload)
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
