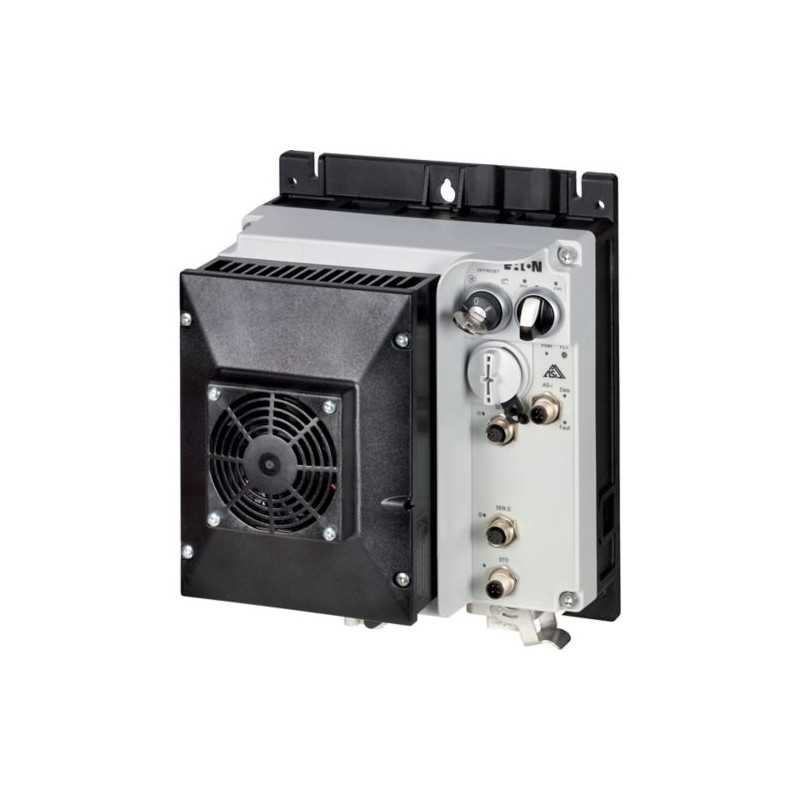

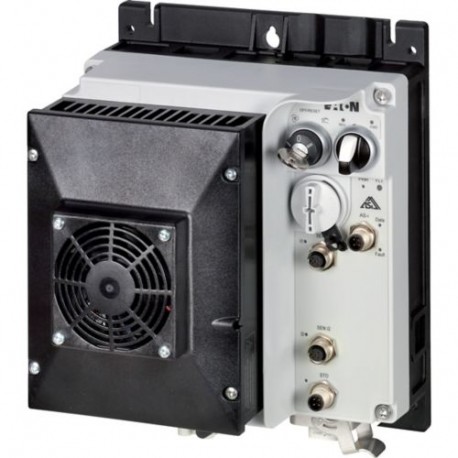

RASP5-8400A31-4120111S1 198848 Y7-198848 EATON ELECTRIC RASP5-8400A31-4120111S1
RASP5-8400A31-4120111S1
198848
Y7-198848
EATON-MOELLER
RASP5-8400A31-4120111S1
Eaton Moeller® series Rapid Link - Speed controllers, 8.5 A, 4 kW, Sensor input 4, AS-Interface®, S-7.4 for 31 modules, HAN Q4/2, with braking resistance, STO (Safe Torque Off), with fan
Drehzahlregler, 8,5 A, 4 kW, Sensoreingang 4, AS-Interface, S-7.4 für 31 Module®, HAN Q4/2, mit Bremswiderstand, STO (Safe Torque Off), mit Lüfter
Niederspannungsschaltgeräte > Frequenzumrichter unter 1 kV
Rapid Link Starter
Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von EATON-MOELLER
Related products
▲Bestseller
▲Mehr Infos
▲Allgemeine Spezifikation
Product Name
Eaton Moeller® series Rapid Link Speed controller
Catalog Number
198848
Product Length/Depth
195 mm
Product Height
270 mm
Product Width
220 mm
Product Weight
3.62 kg
Certifications
UL approval
UL 61800-5-1
IEC/EN 61800-5-1
CE
RoHS
UL 61800-5-1
IEC/EN 61800-5-1
CE
RoHS
Catalog Notes
EAN
4015081969067
Model Code
RASP5-8400A31-4120111S1
Merkmale und Funktionen
Features
Parameterization: Keypad
Parameterization: drivesConnect
Parameterization: Fieldbus
Diagnostics and reset on device and via AS-Interface
Parameterization: drivesConnect mobile (App)
Internal and on heat sink, temperature-controlled Fan
Parameterization: drivesConnect
Parameterization: Fieldbus
Diagnostics and reset on device and via AS-Interface
Parameterization: drivesConnect mobile (App)
Internal and on heat sink, temperature-controlled Fan
Fitted with:
Internal DC link
Key switch position HAND
Control unit
PC connection
Braking resistance
Thermo-click with safe isolation
Key switch position OFF/RESET
IGBT inverter
Key switch position AUTO
Selector switch (Positions: REV - OFF - FWD)
PTC thermistor monitoring
Fan
Breaking resistance
Two sensor inputs through M12 sockets (max. 150 mA) for quick stop and interlocked manual operation
Key switch position HAND
Control unit
PC connection
Braking resistance
Thermo-click with safe isolation
Key switch position OFF/RESET
IGBT inverter
Key switch position AUTO
Selector switch (Positions: REV - OFF - FWD)
PTC thermistor monitoring
Fan
Breaking resistance
Two sensor inputs through M12 sockets (max. 150 mA) for quick stop and interlocked manual operation
Functions
Brake chopper with braking resistance for dynamic braking
1 potentiometer speed
STO (Safe Torque Off)
4-quadrant operation possible
3 fixed speeds
1 potentiometer speed
STO (Safe Torque Off)
4-quadrant operation possible
3 fixed speeds
Allgemein
Degree of protection
IP65
NEMA 12
NEMA 12
Electromagnetic compatibility
1st and 2nd environments (according to EN 61800-3)
Overvoltage category
III
Product category
Speed controller
Protocol
AS-Interface profile cable: S-7.4 for 31 modules
ASI
ASI
Radio interference class
C2, C3: depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary.
C1: for conducted emissions only
C1: for conducted emissions only
Rated impulse withstand voltage (Uimp)
2000 V
System configuration type
Center-point earthed star network (TN-S network)
Phase-earthed AC supply systems are not permitted.
AC voltage
Phase-earthed AC supply systems are not permitted.
AC voltage
Umgebungsbedingungen, Mechanik
Mounting position
Vertical
Shock resistance
15 g, Mechanical, According to IEC/EN 60068-2-27, 11 ms, Half-sinusoidal shock 11 ms, 1000 shocks per shaft
Vibration
Resistance: 57 Hz, Amplitude transition frequency on acceleration
Resistance: 6 Hz, Amplitude 0.15 mm
Resistance: According to IEC/EN 60068-2-6
Resistance: 10 - 150 Hz, Oscillation frequency
Resistance: 6 Hz, Amplitude 0.15 mm
Resistance: According to IEC/EN 60068-2-6
Resistance: 10 - 150 Hz, Oscillation frequency
Klimatische Umweltbedingungen
Altitude
Max. 2000 m
Above 1000 m with 1 % performance reduction per 100 m
Above 1000 m with 1 % performance reduction per 100 m
Ambient operating temperature - min
-10 °C
Ambient operating temperature - max
40 °C
Ambient storage temperature - min
-40 °C
Ambient storage temperature - max
70 °C
Climatic proofing
< 95 %, no condensation
In accordance with IEC/EN 50178
In accordance with IEC/EN 50178
Hauptstromkreis
Current limitation
Adjustable, motor, main circuit
0.8 - 8.5 A, motor, main circuit
0.8 - 8.5 A, motor, main circuit
Delay time
< 10 ms, Off-delay
< 10 ms, On-delay
< 10 ms, On-delay
Efficiency
98 % (η)
Input current ILN at 150% overload
7.8 A
Leakage current at ground IPE - max
3.5 mA
Mains current distortion
120 %
Mains switch-on frequency
Maximum of one time every 60 seconds
Mains voltage - min
380 V
Mains voltage - max
480 V
Mains voltage tolerance
380 - 480 V (-10 %/+10 %, at 50/60 Hz)
Operating mode
Synchronous reluctance motors
Sensorless vector control (SLV)
U/f control
PM and LSPM motors
BLDC motors
Sensorless vector control (SLV)
U/f control
PM and LSPM motors
BLDC motors
Output frequency - min
0 Hz
Output frequency - max
500 Hz
Overload current
At 40 °C
For 60 s every 600 s
For 60 s every 600 s
Overload current IL at 150% overload
12.7 A
Rated frequency - min
45 Hz
Rated frequency - max
66 Hz
Rated operational power at 380/400 V, 50 Hz, 3-phase
4 kW
Rated operational voltage
400 V AC, 3-phase
480 V AC, 3-phase
480 V AC, 3-phase
Resolution
0.1 Hz (Frequency resolution, setpoint value)
Starting current - max
200 %, IH, max. starting current (High Overload), For 2 seconds every 20 seconds, Power section
Supply frequency
50/60 Hz
Switching frequency
8 kHz, 4 - 32 kHz adjustable, fPWM, Power section, Main circuit
System configuration type
Center-point earthed star network (TN-S network)
Phase-earthed AC supply systems are not permitted.
AC voltage
Phase-earthed AC supply systems are not permitted.
AC voltage
Bemessungsbetriebsleistung
Assigned motor power at 460/480 V, 60 Hz, 3-phase
5 HP
Trennfunktion
Braking current
≤ 0.6 A (max. 6 A for 120 ms), Actuator for external motor brake
Braking torque
Adjustable to 100 % (I/Ie), DC - Main circuit
Switch-on threshold for the braking transistor
765 VDC
Kurzschlussfestigkeit
Rated conditional short-circuit current (Iq)
10 kA
Short-circuit protection (external output circuits)
Type 1 coordination via the power bus' feeder unit, Main circuit
Steuerkreis
Rated control voltage (Uc)
24 V DC (-15 %/+20 %, external via AS-Interface® plug)
Kommunikation
Communication interface
AS-Interface
Connection
Plug type: HAN Q4/2
Interfaces
Specification: S-7.4 (AS-Interface®)
Number of slave addresses: 31 (AS-Interface®)
Max. total power consumption from AS-Interface® power supply unit (30 V): 190 mA
Number of slave addresses: 31 (AS-Interface®)
Max. total power consumption from AS-Interface® power supply unit (30 V): 190 mA
Kabel
Cable length
C3 ≤ 25 m, maximum motor cable length
C2 ≤ 5 m, maximum motor cable length
C1 ≤ 1 m, maximum motor cable length
C2 ≤ 5 m, maximum motor cable length
C1 ≤ 1 m, maximum motor cable length
Bauartnachweis
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Merkmal | Wert |
|---|---|
| Netzspannung (EF006780) | 380 V |
| Netzfrequenz (EF006783) | 50/60 Hz |
| Eingangsphasenzahl (EF007117) | 3 |
| Ausgangsphasenzahl (EF006998) | 3 |
| Max. Ausgangsfrequenz (EF007350) | 500 Hz |
| Max. Ausgangsspannung (EF009560) | 500 V |
| Nennausgangsstrom I2N (EF009561) | 8.5 A |
| Max. abgegebene Leistung bei quadrat. Belastung bei Bemessungsausgangsspannung (EF007366) | 4 kW |
| Max. abgegebene Leistung bei linearer Belastung bei Bemessungsausgangsspannung (EF007364) | 4 kW |
| Leistungsaufnahme (EF000346) | 95 W |
| Relative symmetrische Netzfrequenztoleranz (EF007454) | 10 % |
| Relative symmetrische Netzspannungstoleranz (EF007453) | 10 % |
| Anzahl der analogen Ausgänge (EF001995) | 0 |
| Anzahl der analogen Eingänge (EF001994) | 0 |
| Anzahl der digitalen Ausgänge (EF001993) | 0 |
| Anzahl der digitalen Eingänge (EF001992) | 4 |
| Mit Bedienelement (EF001538) | Ja |
| Einsatz im Industriebereich zulässig (EF007294) | Ja |
| Einsatz im Wohn- und Gewerbebereich zulässig (EF007295) | Ja |
| Unterstützt Protokoll für TCP/IP (EF003050) | Nein |
| Unterstützt Protokoll für PROFIBUS (EF003052) | Nein |
| Unterstützt Protokoll für CAN (EF003053) | Nein |
| Unterstützt Protokoll für INTERBUS (EF003054) | Nein |
| Unterstützt Protokoll für ASI (EF003051) | Ja |
| Unterstützt Protokoll für KNX (EF003055) | Nein |
| Unterstützt Protokoll für Modbus (EF003057) | Nein |
| Unterstützt Protokoll für Data-Highway (EF003058) | Nein |
| Unterstützt Protokoll für DeviceNet (EF003059) | Nein |
| Unterstützt Protokoll für SUCONET (EF003060) | Nein |
| Unterstützt Protokoll für LON (EF003017) | Nein |
| Unterstützt Protokoll für PROFINET IO (EF007525) | Nein |
| Unterstützt Protokoll für PROFINET CBA (EF007524) | Nein |
| Unterstützt Protokoll für SERCOS (EF006657) | Nein |
| Unterstützt Protokoll für Foundation Fieldbus (EF007522) | Nein |
| Unterstützt Protokoll für EtherNet/IP (EF007521) | Nein |
| Unterstützt Protokoll für AS-Interface Safety at Work (EF007519) | Nein |
| Unterstützt Protokoll für DeviceNet Safety (EF007520) | Nein |
| Unterstützt Protokoll für INTERBUS-Safety (EF006662) | Nein |
| Unterstützt Protokoll für PROFIsafe (EF007526) | Nein |
| Unterstützt Protokoll für SafetyBUS p (EF007527) | Nein |
| Unterstützt Protokoll für BACnet (EF011944) | Nein |
| Unterstützt Protokoll für sonstige Bussysteme (EF003062) | Nein |
| Anzahl der HW-Schnittstellen Industrial Ethernet (EF003020) | 0 |
| Anzahl der Schnittstellen PROFINET (EF006932) | 0 |
| Anzahl der HW-Schnittstellen seriell RS-232 (EF003021) | 0 |
| Anzahl der HW-Schnittstellen seriell RS-422 (EF003022) | 0 |
| Anzahl der HW-Schnittstellen seriell RS-485 (EF003023) | 1 |
| Anzahl der HW-Schnittstellen seriell TTY (EF003024) | 0 |
| Anzahl der HW-Schnittstellen USB (EF003025) | 0 |
| Anzahl der HW-Schnittstellen parallel (EF003026) | 0 |
| Anzahl der HW-Schnittstellen sonstige (EF003027) | 1 |
| Mit optischer Schnittstelle (EF003028) | Nein |
| Mit PC-Anschluss (EF006107) | Ja |
| Bremschopper integriert (EF007293) | Ja |
| 4-Quadrantenbetrieb möglich (EF006803) | Ja |
| Art des Umrichters (EF006978) | U-Umrichter |
| Schutzart (IP) (EF005474) | IP65 |
| Schutzart (NEMA) (EF011959) | 12 |
| Höhe (EF000040) | 270 mm |
| Breite (EF000008) | 220 mm |
| Tiefe (EF000049) | 195 mm |
Datasheet - PDF
▲| Titel: | Größe: | Typ: |
|---|---|---|
| PDF EATON STARTING CONTROLLING MOTORS EN.pdf | 37 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
Bewertungen (0) ▲
Es gibt keine Produktbewertungenvor.
Bewertung abgeben
Formular verstecken
| Wertung: |
|
| Name: | |
| E-Mail : | |
| Betreff: | |
| Text: | |
| Haben Sie dieses Produkt empfehlen zu kaufen? | |
|
|
|
| Bewertung abgeben | |
Alle Bewertungen wir von den Einzelteilen erhalten wir anbieten, sind real und verifiziert. Eine kleine Geste, aber sehr wertvoll. Also danke für die Minute, die Sie in, dass Sie uns Ihre Meinung und Bewertung von Produkten ausgeben, weil es mir hilft, weiter zu verbessern und noch mehr Servicequalität zu bieten.
