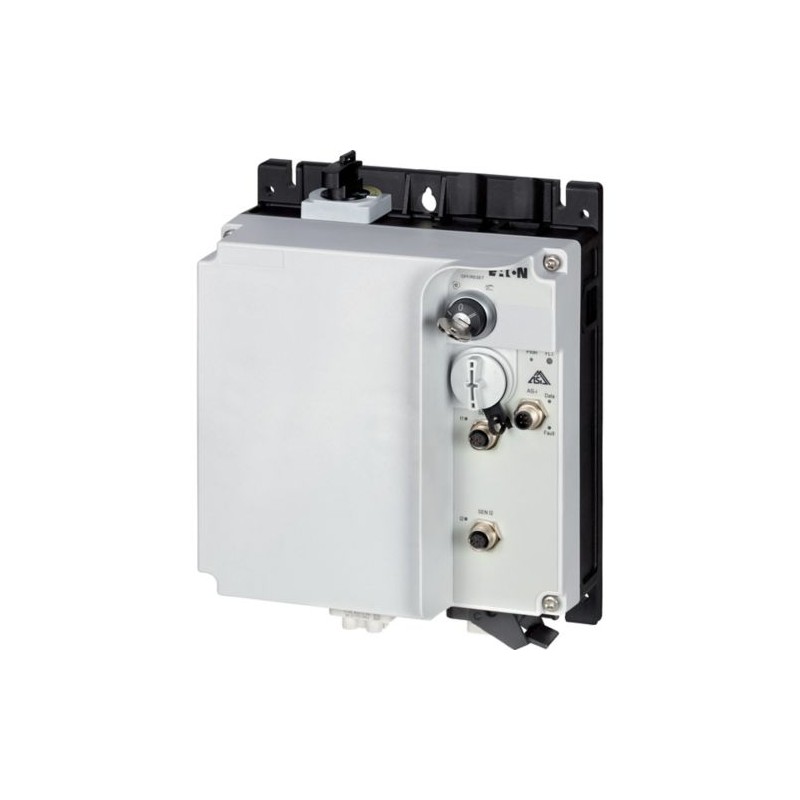

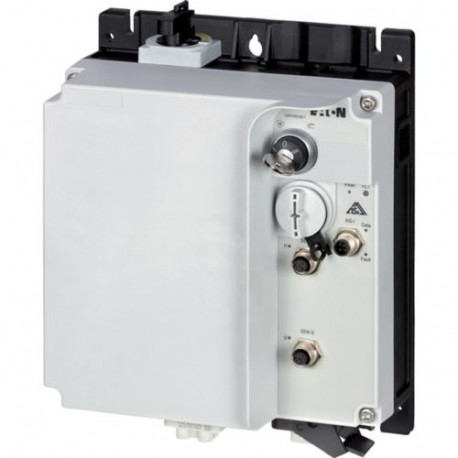

RAMO5-D204A31-412RS1 199072 Y7-199072 EATON ELECTRIC RAMO5-D204A31-412RS1-KARTON
RAMO5-D204A31-412RS1
199072
Y7-199072
EATON-MOELLER
RAMO5-D204A31-412RS1-KARTON
Eaton Moeller® series Rapid Link - DOL starter, 6.6 A, Sensor input 2, 400/480 V AC, AS-Interface®, S-7.4 for 31 modules, HAN Q4/2, with manual override switch
DOL-Starter, 6,6 A, Sensoreingang 2, 400/480 V AC, AS-Interface®, S-7,4 für 31 Module, HAN Q4/2, mit Handnotschalter
Niederspannungsschaltgeräte > Motorstarter/Motorstarterkombination
Rapid Link Starter
Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von EATON-MOELLER
Related products
▲Bestseller
▲Mehr Infos
▲Allgemeine Spezifikation
| Product Name | Eaton Rapid Link DOL starter |
| Catalog Number | 199072 |
| Product Length/Depth | 120 mm |
| Product Height | 270 mm |
| Product Width | 220 mm |
| Product Weight | 1.8 kg |
| Certifications | UL approval CCC UL 60947-4-2 RoHS CE IEC/EN 60947-4-2 |
| Catalog Notes | Assigned motor rating: for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm at 50 Hz or 1800 min at 60 Hz |
| EAN | 4015081971305 |
| Model Code | RAMO5-D204A31-412RS1 |
Features & Functions
| Features | Parameterization: drivesConnect mobile (App) Parameterization: Fieldbus Parameterization: drivesConnect Diagnostics and reset on device and via AS-Interface Parameterization: Keypad |
| Fitted with: | Thermistor monitoring PTC Key switch position AUTO Manual override switch Two sensor inputs through M12 sockets (max. 150 mA) for quick stop and interlocked manual operation Electronic motor protection Thermo-click Key switch position OFF/RESET Key switch position HAND Short-circuit release |
| Functions | For actuation of motors with mechanical brake External reset possible Temperature compensated overload protection |
General information
| Class | CLASS 10 A |
| Degree of protection | IP65 NEMA 12 |
| Electromagnetic compatibility | Class A |
| Lifespan, electrical | 10,000,000 Operations (at AC-3) |
| Lifespan, mechanical | 10,000,000 Operations (at AC-3) |
| Model | Direct starter |
| Overload release current setting - min | 0.3 A |
| Overload release current setting - max | 6.6 A |
| Overvoltage category | III |
| Product category | Motor starter |
| Product category | Motor starter |
| Protocol | AS-Interface profile cable: S-7.4 for 31 modules ASI |
| Rated impulse withstand voltage (Uimp) | 4000 V |
| System configuration type | Center-point earthed star network (TN-S network) Phase-earthed AC supply systems are not permitted. AC voltage |
| Type | DOL starter |
| Voltage type | DC |
Ambient conditions, mechanical
| Mounting position | Vertical |
| Shock resistance | 15 g, Mechanical, According to IEC/EN 60068-2-27, 11 ms, Half-sinusoidal shock 11 ms, 1000 shocks per shaft |
| Vibration | Resistance: 10 - 150 Hz, Oscillation frequency Resistance: According to IEC/EN 60068-2-6 Resistance: 57 Hz, Amplitude transition frequency on acceleration Resistance: 6 Hz, Amplitude 0.15 mm |
Climatic environmental conditions
| Altitude | Max. 1000 m Max. 2000 m Above 1000 m with 1 % performance reduction per 100 m |
| Ambient operating temperature - min | -10 °C |
| Ambient operating temperature - max | 55 °C |
| Ambient storage temperature - min | -40 °C |
| Ambient storage temperature - max | 70 °C |
| Climatic proofing | In accordance with IEC/EN 50178 < 95 %, no condensation |
Main circuit
| Current limitation | Adjustable, motor, main circuit 0.3 - 6.6 A, motor, main circuit |
| Input current | 6.6 A (at 150 % Overload) |
| Mains switch-on frequency | Maximum of one time every 60 seconds |
| Mains voltage tolerance | 380 - 480 V (-15 %/+10 %, at 50/60 Hz) |
| Off-delay | 20 - 35 ms |
| On-delay | 20 - 35 ms |
| Output frequency | 50/60 Hz |
| Overload cycle | AC-53a |
| Rated frequency - max | 63 Hz |
| Rated frequency - min | 47 Hz |
| Rated operational current (Ie) | 6.6 A |
| Rated operational current (Ie) at 150% overload | 6.6 A |
| Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V | 6.6 A |
| Rated operational power at 380/400 V, 50 Hz - max | 3 kW |
| Rated operational power at 380/400 V, 50 Hz - min | 0.09 kW |
| Rated operational power at AC-3, 380/400 V, 50 Hz | 3 kW |
| Rated operational voltage | 400 V AC, 3-phase 480 V AC, 3-phase |
| Supply frequency | 50/60 Hz, fLN, Main circuit |
Motor rating
| Assigned motor power at 460/480 V, 60 Hz, 3-phase | 3 HP |
Braking function
| Braking current | ≤ 0.6 A (max. 6 A for 120 ms), Actuator for external motor brake |
| Braking voltage | 400/480 V AC -15 % / +10 %, Actuator for external motor brake |
Short-circuit rating
| Rated conditional short-circuit current (Iq) | 10 kA |
| Short-circuit protection (external output circuits) | Type 1 coordination via the power bus' feeder unit, Main circuit |
Control circuit
| Rated control voltage (Uc) | 24 V DC (-15 %/+20 %, external via AS-Interface® plug) 400/480 V AC (external brake 50/60 Hz) |
Communication
| Connection | Connections pluggable in power section |
| Interfaces | Number of slave addresses: 31 (AS-Interface®) Max. total power consumption from AS-Interface® power supply unit (30 V): 190 mA Specification: S-7.4 (AS-Interface®) |
Contacts
| Number of auxiliary contacts (normally closed contacts) | 0 |
| Number of auxiliary contacts (normally open contacts) | 0 |
Cable
| Cable length | 10 m, Radio interference level, maximum motor cable length |
Design verification
| 10.2.2 Corrosion resistance | Meets the product standard's requirements. |
| 10.2.3.1 Verification of thermal stability of enclosures | Meets the product standard's requirements. |
| 10.2.3.2 Verification of resistance of insulating materials to normal heat | Meets the product standard's requirements. |
| 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects | Meets the product standard's requirements. |
| 10.2.4 Resistance to ultra-violet (UV) radiation | Meets the product standard's requirements. |
| 10.2.5 Lifting | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.6 Mechanical impact | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.7 Inscriptions | Meets the product standard's requirements. |
| 10.3 Degree of protection of assemblies | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.4 Clearances and creepage distances | Meets the product standard's requirements. |
| 10.5 Protection against electric shock | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.6 Incorporation of switching devices and components | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.7 Internal electrical circuits and connections | Is the panel builder's responsibility. |
| 10.8 Connections for external conductors | Is the panel builder's responsibility. |
| 10.9.2 Power-frequency electric strength | Is the panel builder's responsibility. |
| 10.9.3 Impulse withstand voltage | Is the panel builder's responsibility. |
| 10.9.4 Testing of enclosures made of insulating material | Is the panel builder's responsibility. |
| 10.10 Temperature rise | The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices. |
| 10.11 Short-circuit rating | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.12 Electromagnetic compatibility | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.13 Mechanical function | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
| Merkmal | Wert |
|---|---|
| Art des Motorstarters (EF009598) | Direktstarter (DOL) |
| Mit Kurzschlussauslöser (EF006691) | Ja |
| Bemessungssteuerspeisespannung AC 50 Hz (EF003978) | 0 V |
| Bemessungssteuerspeisespannung AC 60 Hz (EF003979) | 0 V |
| Bemessungssteuerspeisespannung DC (EF003980) | 0 V |
| Spannungsart zur Betätigung (EF008242) | DC |
| Bemessungsbetriebsleistung bei AC-3, 230 V, 3-phasig (EF009599) | 0 kW |
| Bemessungsbetriebsleistung bei AC-3, 400 V (EF001364) | 3 kW |
| Bemessungsleistung, 460 V, 60 Hz, 3-phasig (EF009600) | 2.238 kW |
| Bemessungsleistung, 575 V, 60 Hz, 3-phasig (EF009601) | 0 kW |
| Bemessungsbetriebsstrom Ie (EF001443) | 6.6 A |
| Bemessungsbetriebsstrom bei AC-3, 400 V (EF009602) | 6.6 A |
| Überlastauslöser Stromeinstellung (EF002336) | 0.3 A |
| Bedingter Bemessungskurzschlussstrom, Zuordnungsart 1, 480 Y/277 V (EF009607) | 10000 A |
| Bedingter Bemessungskurzschlussstrom, Zuordnungsart 1, 600 Y/347 V (EF009608) | 0 A |
| Bedingter Bemessungskurzschlussstrom, Zuordnungsart 2, 230 V (EF009606) | 0 A |
| Bedingter Bemessungskurzschlussstrom, Zuordnungsart 2, 400 V (EF009605) | 0 A |
| Leistungsaufnahme (EF000346) | 8 W |
| Anzahl der Hilfskontakte als Schließer (EF001376) | 0 |
| Anzahl der Hilfskontakte als Öffner (EF001377) | 0 |
| Umgebungstemperatur, Obergrenze ohne Einschränkungen (EF009603) | 55 °C |
| Temperaturkompensierter Überlastschutz (EF009604) | Ja |
| Auslöseklasse (EF006668) | CLASS 10 A |
| Anschlussart Hauptstromkreis (EF006819) | Steckanschluss |
| Ausführung elektrischer Anschluss für Hilfs- und Steuerstromkreis (EF006979) | Steckanschluss |
| Tragschienenmontage möglich (EF003972) | Nein |
| Mit Trafo (EF000278) | Nein |
| Anzahl der Befehlsstellen (EF001372) | 1 |
| Geeignet für NOT-AUS (EF001433) | Nein |
| Zuordnungsart nach IEC 60947-4-3 (EF012390) | Klasse 1 |
| Anzahl der Leuchtmelder (EF001965) | 0 |
| Externer Reset möglich (EF003426) | Ja |
| Mit Sicherung (EF006693) | Nein |
| Schutzart (IP) (EF005474) | IP65 |
| Schutzart (NEMA) (EF011959) | 12 |
| Unterstützt Protokoll für TCP/IP (EF003050) | Nein |
| Unterstützt Protokoll für PROFIBUS (EF003052) | Nein |
| Unterstützt Protokoll für CAN (EF003053) | Nein |
| Unterstützt Protokoll für INTERBUS (EF003054) | Nein |
| Unterstützt Protokoll für ASI (EF003051) | Ja |
| Unterstützt Protokoll für Modbus (EF003057) | Nein |
| Unterstützt Protokoll für Data-Highway (EF003058) | Nein |
| Unterstützt Protokoll für DeviceNet (EF003059) | Nein |
| Unterstützt Protokoll für SUCONET (EF003060) | Nein |
| Unterstützt Protokoll für LON (EF003017) | Nein |
| Unterstützt Protokoll für PROFINET IO (EF007525) | Nein |
| Unterstützt Protokoll für PROFINET CBA (EF007524) | Nein |
| Unterstützt Protokoll für SERCOS (EF006657) | Nein |
| Unterstützt Protokoll für Foundation Fieldbus (EF007522) | Nein |
| Unterstützt Protokoll für EtherNet/IP (EF007521) | Nein |
| Unterstützt Protokoll für AS-Interface Safety at Work (EF007519) | Nein |
| Unterstützt Protokoll für DeviceNet Safety (EF007520) | Nein |
| Unterstützt Protokoll für INTERBUS-Safety (EF006662) | Nein |
| Unterstützt Protokoll für PROFIsafe (EF007526) | Nein |
| Unterstützt Protokoll für SafetyBUS p (EF007527) | Nein |
| Unterstützt Protokoll für sonstige Bussysteme (EF003062) | Nein |
| Breite (EF000008) | 220 mm |
| Höhe (EF000040) | 270 mm |
| Tiefe (EF000049) | 120 mm |
