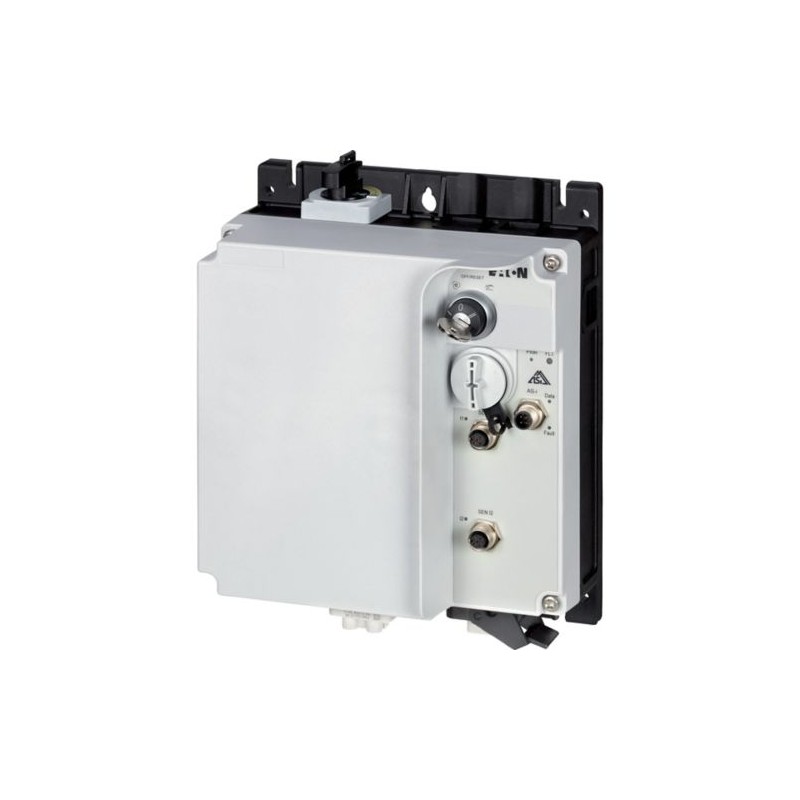

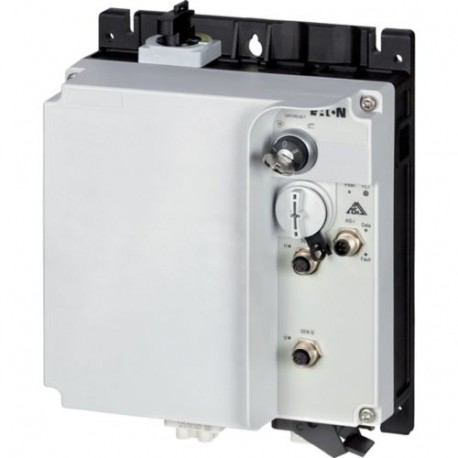

RAMO5-D200A32-412RS1 199075 Y7-199075 EATON ELECTRIC RAMO5-D200A32-412RS1
RAMO5-D200A32-412RS1
199075
Y7-199075
EATON-MOELLER
RAMO5-D200A32-412RS1
Eaton Moeller® series Rapid Link - DOL starter, 6.6 A, Sensor input 2, AS-Interface®, S-7.A.E. for 62 modules, HAN Q4/2, with manual override switch
DOL-Starter, 6,6 A, Sensoreingang 2, AS-Interface®, S-7.A.E. für 62 Module, HAN Q4/2, mit Handnotschalter
Niederspannungsschaltgeräte > Motorstarter/Motorstarterkombination
Rapid Link Starter
Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von EATON-MOELLER
Related products
▲Bestseller
▲Mehr Infos
▲Allgemeine Spezifikation
Product Name
Eaton Moeller® series Rapid Link DOL starter
Catalog Number
199075
Product Length/Depth
120 mm
Product Height
270 mm
Product Width
220 mm
Product Weight
1.8 kg
Certifications
CE
RoHS
UL 60947-4-2
UL approval
CCC
IEC/EN 60947-4-2
RoHS
UL 60947-4-2
UL approval
CCC
IEC/EN 60947-4-2
Catalog Notes
Assigned motor rating: for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm at 50 Hz or 1800 min at 60 Hz
EAN
4015081971336
Model Code
RAMO5-D200A32-412RS1
Merkmale und Funktionen
Features
Parameterization: drivesConnect mobile (App)
Diagnostics and reset on device and via AS-Interface
Parameterization: drivesConnect
Parameterization: Fieldbus
Parameterization: Keypad
Diagnostics and reset on device and via AS-Interface
Parameterization: drivesConnect
Parameterization: Fieldbus
Parameterization: Keypad
Fitted with:
Key switch position OFF/RESET
Key switch position HAND
Thermistor monitoring PTC
Electronic motor protection
Two sensor inputs through M12 sockets (max. 150 mA) for quick stop and interlocked manual operation
Key switch position AUTO
Thermo-click
Manual override switch
Short-circuit release
Key switch position HAND
Thermistor monitoring PTC
Electronic motor protection
Two sensor inputs through M12 sockets (max. 150 mA) for quick stop and interlocked manual operation
Key switch position AUTO
Thermo-click
Manual override switch
Short-circuit release
Functions
External reset possible
Temperature compensated overload protection
Temperature compensated overload protection
Allgemein
Class
CLASS 10 A
Degree of protection
NEMA 12
IP65
IP65
Electromagnetic compatibility
Class A
Lifespan, electrical
10,000,000 Operations (at AC-3)
Lifespan, mechanical
10,000,000 Operations (at AC-3)
Model
Direct starter
Overload release current setting - min
0.3 A
Overload release current setting - max
6.6 A
Overvoltage category
III
Product category
Motor starter
Protocol
AS-Interface profile cable: S-7.4 for 62 modules
ASI
ASI
Rated impulse withstand voltage (Uimp)
4000 V
System configuration type
AC voltage
Phase-earthed AC supply systems are not permitted.
Center-point earthed star network (TN-S network)
Phase-earthed AC supply systems are not permitted.
Center-point earthed star network (TN-S network)
Type
DOL starter
Voltage type
DC
Umgebungsbedingungen, Mechanik
Mounting position
Vertical
Shock resistance
15 g, Mechanical, According to IEC/EN 60068-2-27, 11 ms, Half-sinusoidal shock 11 ms, 1000 shocks per shaft
Vibration
Resistance: According to IEC/EN 60068-2-6
Resistance: 6 Hz, Amplitude 0.15 mm
Resistance: 10 - 150 Hz, Oscillation frequency
Resistance: 57 Hz, Amplitude transition frequency on acceleration
Resistance: 6 Hz, Amplitude 0.15 mm
Resistance: 10 - 150 Hz, Oscillation frequency
Resistance: 57 Hz, Amplitude transition frequency on acceleration
Klimatische Umweltbedingungen
Altitude
Above 1000 m with 1 % performance reduction per 100 m
Max. 1000 m
Max. 2000 m
Max. 1000 m
Max. 2000 m
Ambient operating temperature - min
-10 °C
Ambient operating temperature - max
55 °C
Ambient storage temperature - min
-40 °C
Ambient storage temperature - max
70 °C
Climatic proofing
< 95 %, no condensation
In accordance with IEC/EN 50178
In accordance with IEC/EN 50178
Hauptstromkreis
Current limitation
Adjustable, motor, main circuit
0.3 - 6.6 A, motor, main circuit
0.3 - 6.6 A, motor, main circuit
Input current
6.6 A (at 150 % Overload)
Mains switch-on frequency
Maximum of one time every 60 seconds
Mains voltage tolerance
380 - 480 V (-15 %/+10 %, at 50/60 Hz)
Off-delay
20 - 35 ms
On-delay
20 - 35 ms
Output frequency
50/60 Hz
Overload cycle
AC-53a
Rated frequency - min
47 Hz
Rated frequency - max
63 Hz
Rated operational current (Ie) at 150% overload
6.6 A
Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V
6.6 A
Rated operational power at 380/400 V, 50 Hz - min
0.09 kW
Rated operational power at 380/400 V, 50 Hz - max
3 kW
Rated operational power at AC-3, 220/230 V, 50 Hz
0 kW
Rated operational power at AC-3, 380/400 V, 50 Hz
3 kW
Rated operational voltage
480 V AC, 3-phase
400 V AC, 3-phase
400 V AC, 3-phase
Supply frequency
50/60 Hz, fLN, Main circuit
System configuration type
AC voltage
Phase-earthed AC supply systems are not permitted.
Center-point earthed star network (TN-S network)
Phase-earthed AC supply systems are not permitted.
Center-point earthed star network (TN-S network)
Bemessungsbetriebsleistung
Assigned motor power at 460/480 V, 60 Hz, 3-phase
3 HP
Kurzschlussfestigkeit
Rated conditional short-circuit current (Iq)
10 kA
Rated conditional short-circuit current (Iq), type 2, 380 V, 400 V, 415 V
0 A
Short-circuit protection (external output circuits)
Type 1 coordination via the power bus' feeder unit, Main circuit
Steuerkreis
Rated control supply voltage (Us) at AC, 50 Hz - min
0 V
Rated control supply voltage (Us) at AC, 50 Hz - max
0 V
Rated control supply voltage (Us) at AC, 60 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - max
0 V
Rated control supply voltage (Us) at DC - min
0 V
Rated control supply voltage (Us) at DC - max
0 V
Rated control voltage (Uc)
24 V DC (-15 %/+20 %, external via AS-Interface® plug)
Kommunikation
Connection
Connections pluggable in power section
Interfaces
Max. total power consumption from AS-Interface® power supply unit (30 V): 190 mA
Number of slave addresses: 62 (AS-Interface®)
Specification: S-7.A.E. (AS-Interface®)
Number of slave addresses: 62 (AS-Interface®)
Specification: S-7.A.E. (AS-Interface®)
Ansprechpartner
Number of auxiliary contacts (normally closed contacts)
0
Number of auxiliary contacts (normally open contacts)
0
Kabel
Cable length
10 m, Radio interference level, maximum motor cable length
Bauartnachweis
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Merkmal | Wert |
|---|---|
| Art des Motorstarters (EF009598) | Direktstarter (DOL) |
| Mit Kurzschlussauslöser (EF006691) | Ja |
| Bemessungssteuerspeisespannung AC 50 Hz (EF003978) | 0 V |
| Bemessungssteuerspeisespannung AC 60 Hz (EF003979) | 0 V |
| Bemessungssteuerspeisespannung DC (EF003980) | 0 V |
| Spannungsart zur Betätigung (EF008242) | DC |
| Bemessungsbetriebsleistung bei AC-3, 230 V, 3-phasig (EF009599) | 0 kW |
| Bemessungsbetriebsleistung bei AC-3, 400 V (EF001364) | 3 kW |
| Bemessungsleistung, 460 V, 60 Hz, 3-phasig (EF009600) | 2.238 kW |
| Bemessungsleistung, 575 V, 60 Hz, 3-phasig (EF009601) | 0 kW |
| Bemessungsbetriebsstrom Ie (EF001443) | 6.6 A |
| Bemessungsbetriebsstrom bei AC-3, 400 V (EF009602) | 6.6 A |
| Überlastauslöser Stromeinstellung (EF002336) | 0.3 A |
| Bedingter Bemessungskurzschlussstrom, Zuordnungsart 1, 480 Y/277 V (EF009607) | 10000 A |
| Bedingter Bemessungskurzschlussstrom, Zuordnungsart 1, 600 Y/347 V (EF009608) | 0 A |
| Bedingter Bemessungskurzschlussstrom, Zuordnungsart 2, 230 V (EF009606) | 0 A |
| Bedingter Bemessungskurzschlussstrom, Zuordnungsart 2, 400 V (EF009605) | 0 A |
| Leistungsaufnahme (EF000346) | 8 W |
| Anzahl der Hilfskontakte als Schließer (EF001376) | 0 |
| Anzahl der Hilfskontakte als Öffner (EF001377) | 0 |
| Umgebungstemperatur, Obergrenze ohne Einschränkungen (EF009603) | 55 °C |
| Temperaturkompensierter Überlastschutz (EF009604) | Ja |
| Auslöseklasse (EF006668) | CLASS 10 A |
| Anschlussart Hauptstromkreis (EF006819) | Steckanschluss |
| Ausführung elektrischer Anschluss für Hilfs- und Steuerstromkreis (EF006979) | Steckanschluss |
| Tragschienenmontage möglich (EF003972) | Nein |
| Mit Trafo (EF000278) | Nein |
| Anzahl der Befehlsstellen (EF001372) | 1 |
| Geeignet für NOT-AUS (EF001433) | Nein |
| Zuordnungsart nach IEC 60947-4-3 (EF012390) | Klasse 1 |
| Anzahl der Leuchtmelder (EF001965) | 0 |
| Externer Reset möglich (EF003426) | Ja |
| Mit Sicherung (EF006693) | Nein |
| Schutzart (IP) (EF005474) | IP65 |
| Schutzart (NEMA) (EF011959) | 12 |
| Unterstützt Protokoll für TCP/IP (EF003050) | Nein |
| Unterstützt Protokoll für PROFIBUS (EF003052) | Nein |
| Unterstützt Protokoll für CAN (EF003053) | Nein |
| Unterstützt Protokoll für INTERBUS (EF003054) | Nein |
| Unterstützt Protokoll für ASI (EF003051) | Ja |
| Unterstützt Protokoll für Modbus (EF003057) | Nein |
| Unterstützt Protokoll für Data-Highway (EF003058) | Nein |
| Unterstützt Protokoll für DeviceNet (EF003059) | Nein |
| Unterstützt Protokoll für SUCONET (EF003060) | Nein |
| Unterstützt Protokoll für LON (EF003017) | Nein |
| Unterstützt Protokoll für PROFINET IO (EF007525) | Nein |
| Unterstützt Protokoll für PROFINET CBA (EF007524) | Nein |
| Unterstützt Protokoll für SERCOS (EF006657) | Nein |
| Unterstützt Protokoll für Foundation Fieldbus (EF007522) | Nein |
| Unterstützt Protokoll für EtherNet/IP (EF007521) | Nein |
| Unterstützt Protokoll für AS-Interface Safety at Work (EF007519) | Nein |
| Unterstützt Protokoll für DeviceNet Safety (EF007520) | Nein |
| Unterstützt Protokoll für INTERBUS-Safety (EF006662) | Nein |
| Unterstützt Protokoll für PROFIsafe (EF007526) | Nein |
| Unterstützt Protokoll für SafetyBUS p (EF007527) | Nein |
| Unterstützt Protokoll für sonstige Bussysteme (EF003062) | Nein |
| Breite (EF000008) | 220 mm |
| Höhe (EF000040) | 270 mm |
| Tiefe (EF000049) | 120 mm |
Datasheet - PDF
▲| Titel: | Größe: | Typ: |
|---|---|---|
| PDF EATON STARTING CONTROLLING MOTORS EN.pdf | 37 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
Bewertungen (0) ▲
Es gibt keine Produktbewertungenvor.
Bewertung abgeben
Formular verstecken
| Wertung: |
|
| Name: | |
| E-Mail : | |
| Betreff: | |
| Text: | |
| Haben Sie dieses Produkt empfehlen zu kaufen? | |
|
|
|
| Bewertung abgeben | |
Alle Bewertungen wir von den Einzelteilen erhalten wir anbieten, sind real und verifiziert. Eine kleine Geste, aber sehr wertvoll. Also danke für die Minute, die Sie in, dass Sie uns Ihre Meinung und Bewertung von Produkten ausgeben, weil es mir hilft, weiter zu verbessern und noch mehr Servicequalität zu bieten.
