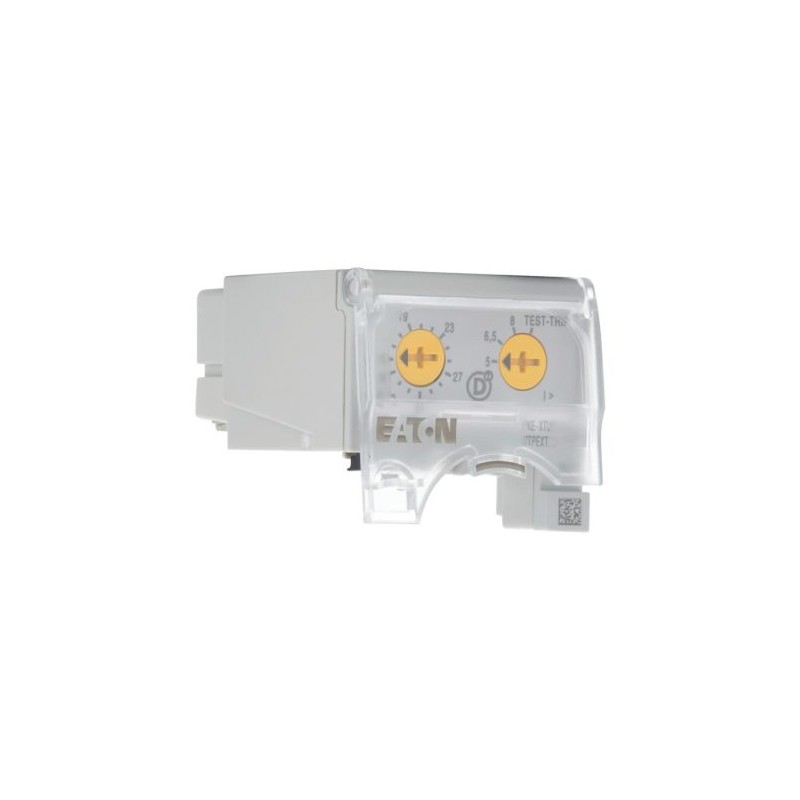

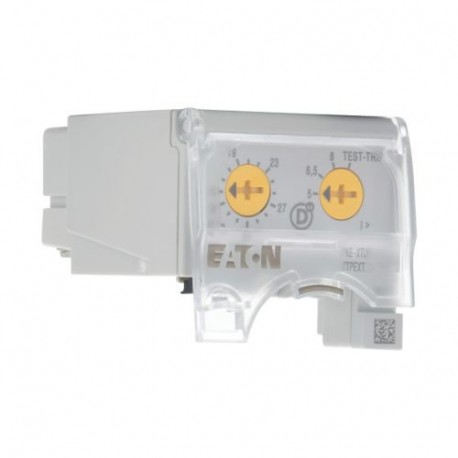

PKE-XTUACP-36 168795 Y7-168795 EATON ELECTRIC Auslöseblock, 15 36 A, vernetzbar, Anlagenschutz

PKE-XTUACP-36

168795

Y7-168795

EATON-MOELLER

Auslöseblock, 15 - 36 A, vernetzbar, Anlagenschutz

PKE-XTUACP-36-KARTON

Eaton Moeller® series PKE Trip block, 15 - 36 A, System protection, Connection to SmartWire-DT: yes, For use with: PKE32 basic device

Elektronisches Steuergerät für den Anlagenschutz nach IEC 60947-2, werkzeuglose Montage mit Basisgerät PKE32, einstellbarer elektronischer Weitbereichs-Überlastschutz (2, 4 : 1), einstellbare Kurzschlussauslöser, Schnittstelle zum Anschluss an SmartWire-DT über SmartWire-DT-Modul zur zusätzlichen Überwachung (Phasenstrom, Leistungsschalterzustand, Schalteinstellungen)

Mehr Infos


Niederspannungsschaltgeräte > Auslöseblock für Leistungsschalter

Elektronische Leistungsschalter

Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von EATON-MOELLER

Gesamtpreis: $232.87
Stückpreis: $232.87
Dieser Preis ist pro Einheit und ist der Nettowert (ohne Steuern, falls zutreffend).

Wenn unser Preis nicht der beste ist, fragen Sie uns nach einem Angebot Fordern Sie ein Angebot

Related products

Bestseller

Mehr Infos



Allgemeine Spezifikation

Product Name
Eaton Moeller® series PKE Trip block
Catalog Number
168795
Product Length/Depth
41.6 mm
Product Height
64.2 mm
Product Width
45 mm
Product Weight
0.09 kg
Certifications
IEC/EN 60947
VDE 0660
Catalog Notes
This is a product for Environment A (Industrial). In environment B (household) this device may cause undesirable radio interference. In this case the user may be obliged to take appropriate measures.
EAN
4015081652860
Model Code
PKE-XTUACP-36

Merkmale und Funktionen

Functions
Overcurrent protection
System protection
Short-circuit protection
Line and cable protection
Number of poles
Three-pole

Allgemein

Current flow times - min
500 (Class 5) AC-4 cycle operation, Main conducting paths
For all combinations with an SWD activation, you need not adhere to the minimum current flow times and minimum cut-out periods.
900 (Class 15) AC-4 cycle operation, Main conducting paths
1000 (Class 20) AC-4 cycle operation, Main conducting paths
Note: Going below the minimum current flow time can cause overheating of the load (motor).
700 (Class 10) AC-4 cycle operation, Main conducting paths
Cut-out periods - min
≤ 500 ms, main conducting paths, AC-4 cycle operation
Degree of protection
Terminals: IP00
Device: IP20
Operating frequency
60 Operations/h
Overload release current setting - min
15 A
Overload release current setting - max
36 A
Overvoltage category
III
Pollution degree
3
Product category
Accessories
Protection
Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)
Rated impulse withstand voltage (Uimp)
6000 V AC
Temperature compensation
-25 - 55 °C, Operating range
-5 - 40 °C to IEC/EN 60947, VDE 0660
Voltage type
Self powered

Umgebungsbedingungen, Mechanik

Shock resistance
25 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms

Klimatische Umweltbedingungen

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C
Ambient operating temperature (enclosed) - min
25 °C
Ambient operating temperature (enclosed) - max
40 °C
Ambient storage temperature - min
40 °C
Ambient storage temperature - max
80 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78

Bemessungswerte

Rated frequency - min
50 Hz
Rated frequency - max
60 Hz
Rated operational current (Ie)
36 A
Rated operational voltage (Ue) at AC - max
690 V
Rated uninterrupted current (Iu)
36 A
Supply voltage at AC, 50 Hz - min
690 V
Supply voltage at AC, 50 Hz - max
690 V

Kurzschlussfestigkeit

Short-circuit release
Trip block adjustable 5 - 8 x Ir
Delayed approx. 60 ms, Trip blocks
75 A - 288 A, Irm, Setting range
± 20% tolerance, Trip blocks

Magnetsystem

Rated control supply voltage (Us) at AC, 50 Hz - min
0 V
Rated control supply voltage (Us) at AC, 50 Hz - max
0 V
Rated control supply voltage (Us) at AC, 60 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - max
0 V
Rated control supply voltage (Us) at DC - min
0 V
Rated control supply voltage (Us) at DC - max
0 V

Kommunikation

Connection to SmartWire-DT
Yes
In conjunction with PKE-SWD-SP SmartWire DT PKE module

Ansprechpartner

Number of auxiliary contacts (change-over contacts)
0
Number of auxiliary contacts (normally closed contacts)
0
Number of auxiliary contacts (normally open contacts)
0

Bauartnachweis

Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
1.7 W
Rated operational current for specified heat dissipation (In)
36 A
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 168795 Niederspannungsschaltgeräte (EC000617)
Merkmal Wert
Ausführung des Motorschutzes (EF008234) elektronischer Auslöser
Polzahl (EF001391) 3
Bemessungsdauerstrom Iu (EF001389) 36 A
Überlastauslöser Stromeinstellung (EF002336) 15 A
Kurzschlussauslöserfunktion (EF001413) verzögert
Mit Erdschlussschutzfunktion (EF005601) Nein
Externe Stromversorgung erforderlich (EF003292) Nein
Breite (EF000008) 45 mm
Höhe (EF000040) 64.2 mm
Tiefe (EF000049) 41.6 mm
