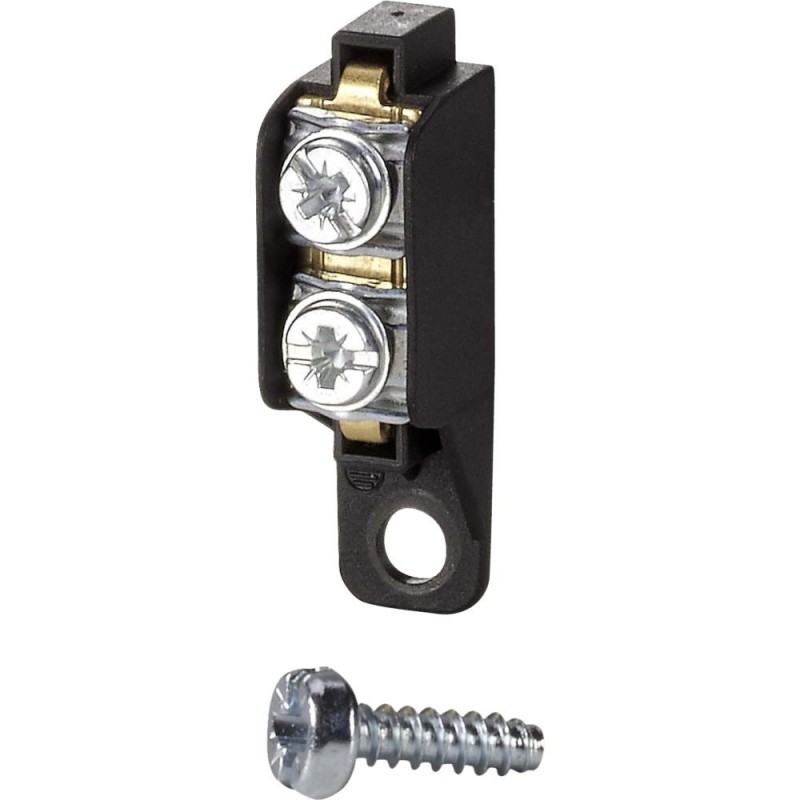

MBS-I2-PE 187713 EATON ELECTRIC PE-Klemme für MBS-I2
MBS-I2-PE
187713
EATON-MOELLER
PE-Klemme für MBS-I2
Earth Terminal; Für MBS-I2
Eaton Moeller® series MBS PE-terminal for MBS-I2
Trennschalter und Nockenschalter
* Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von EATON-MOELLER
Mehr Infos
▲Allgemeine Spezifikation
Product Name
Eaton Moeller® series MBS Accessory Insulated enclosure
Catalog Number
187713
Product Length/Depth
42 mm
Product Height
15 mm
Product Width
12 mm
Product Weight
0.01 kg
Compliances
CE
EAN
4015081853977
Model Code
MBS-I2-PE
Merkmale und Funktionen
Fitted with:
Can be used only in conjunction with MBS-I2 mounting plate
Allgemein
Accessory/spare part type
Connection technique
Type
Protective conductor terminals
Klimatische Umweltbedingungen
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
50 °C
Anschlussquerschnitte
Stripping length (main cable)
9 mm
Bauartnachweis
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Not applicable.
10.12 Electromagnetic compatibility
Not applicable.
10.13 Mechanical function
Not applicable.
