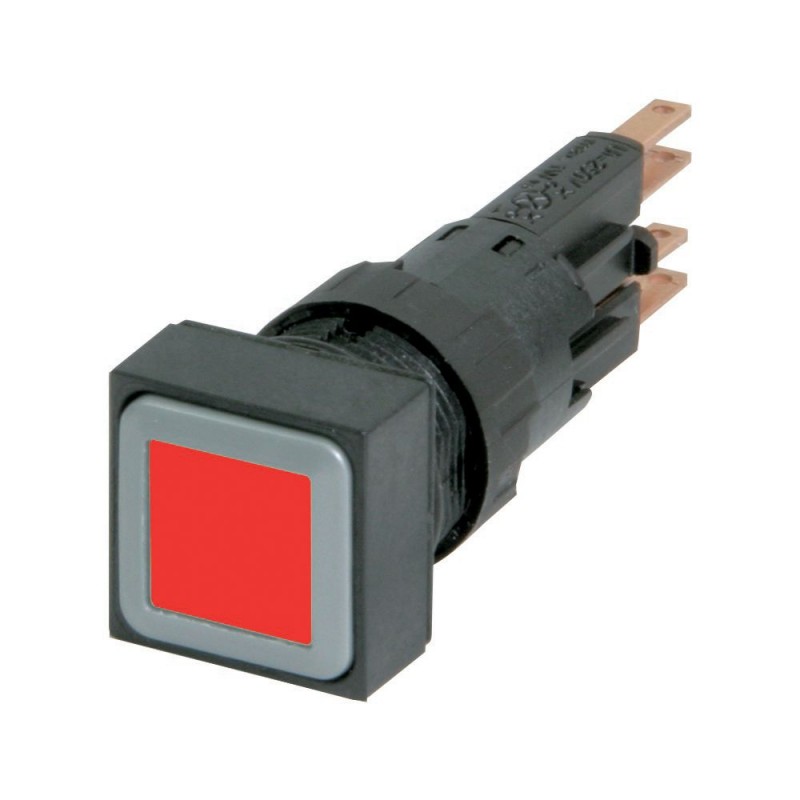

Q18LTR-RT 087918 EATON ELECTRIC Leuchtdrucktaste, rot, rastend Vergrößern
Die Bilder sind nur orientativ. Bitte prüfen Sie das Artikelstammdatenblatt.

Q18LTR-RT 087918 EATON ELECTRIC Leuchtdrucktaste, rot, rastend

Q18LTR-RT

087918

EATON-MOELLER

Leuchtdrucktaste, rot, rastend

Bündig beleuchteter Druckknopf 16 mm 18x18 mm Interlock Rot

Eaton Moeller® series RMQ16 Illuminated pushbutton actuator, red, maintained Q18LTR-RT

Mehr Infos


Niederspannungsschaltgeräte > Frontelement für Drucktaster

Hilfskontroll- und Signalelemente

* Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von EATON-MOELLER

Gesamtpreis: $15.28
Stückpreis: $15.28

*Dieser Preis ist pro Einheit und ist der Nettowert (ohne Steuern, falls zutreffend).

Wenn unser Preis nicht der beste ist, fragen Sie uns nach einem Angebot Fordern Sie ein Angebot

Mehr Infos

▲


Allgemeine spezifikation

Product Name
Eaton Moeller® series RMQ16 Illuminated pushbutton actuator
Catalog Number
087918
Product Length/Depth
59 mm
Product Height
18 mm
Product Width
18 mm
Product Weight
0.009 kg
Certifications
CSA-C22.2 No. 14-05
UL
UL Category Control No.: NKCR
CSA File No.: 46552
IEC/EN 60947
IEC/EN 60947-5
UL File No.: E29184
CE
UL 508
CSA
CSA Class No.: 3211-03
Catalog Notes
Filament bulb or LED needs to be ordered separately
EAN
4015080879183
Model Code
Q18LTR-RT

Merkmale und Funktionen

Bezel color
Black
Bezel material
Plastic
Design
Flat
Inscription
Blank

Allgemein

Degree of protection
NEMA 1
IP65
Degree of protection (front side)
IP65
NEMA 1
Lifespan, mechanical
30,000,000 Operations
Opening diameter
16 mm
Operating frequency
1800 Operations/h
Overvoltage category
III
Pollution degree
3
Product category
RMQ16
Rated impulse withstand voltage (Uimp)
800 V AC
Size
Front dimensions: 18 x 18 mm
Suitable for
Illumination
Terminal capacity
0.5 - 1.0 mm²
Terminal size
2.8 x 0.8 mm to DIN 46247 and IEC 60760, Fast-on connectors
2.8 x 0.8 mm to DIN 46244, Blade terminal
Type
Illuminated pushbutton actuator

Umgebungsbedingungen, Mechanik

Mounting position
As required
Shock resistance
Mechanical, According to IEC/EN 60068-2-27
40 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms

Klimatische Umweltbedingungen

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C
Ambient operating temperature (enclosed) - min
25 °C
Ambient operating temperature (enclosed) - max
40 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30

Bemessungswerte

Rated insulation voltage (Ui)
250 V

Betätigungselement

Actuating force
4 N
Actuator color
Red
Actuator function
Maintained
Switching function latching

Kommunikation

Connection to SmartWire-DT
No

Bauartnachweis

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

Datasheet - PDF

▲
Titel: Größe: Typ:
PDF EATON COMMAND INDICATION EN.pdf 23 Mbytes
Q18LTR-RT Q18LTR-RT 087918 EN_025434.pdf 1 Mbytes Q18LTR-RT Q18LTR-RT 087918 EN_025434.pdf
