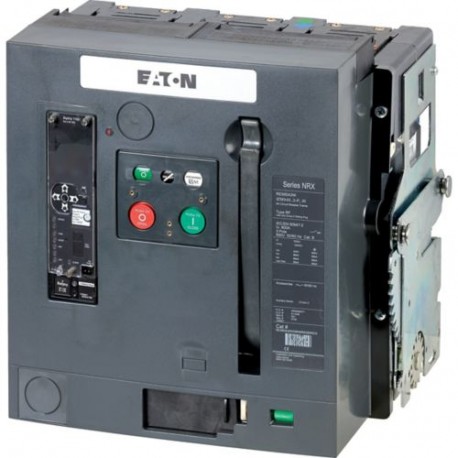

IZMX40B3-P20W 149785 EATON ELECTRIC Leistungsschalter, 3p, 2000A, Einschub
IZMX40B3-P20W
149785
EATON-MOELLER
Leistungsschalter, 3p, 2000A, Einschub
Leistungsschalter IZMX40 ( Offene Leistungsschalter/Lasttrennschalter), 3-polig, Strombereich: Bis 4000 A, Nennstrom = Bemessungsdauerstrom ( In = Iu): 2000 A, bis 440 V 50/60 Hz( Icu): 66 kA, bis 440 V 50/60 Hz( Ics): 66 kA, Überlastauslöser, min.( Ir): 1000 A, Überlastauslöser, max.( Ir): 2000 A, Einbauart: Einschub, Norm/Zulassung: IEC, Schutzfunktion: Professioneller Schutz
Niederspannungsschaltgeräte > Leistungsschalter für Trafo-, Generator- und Anlagenschutz
Home > EATON - MOELLER
Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von EATON-MOELLER
Bestseller
▲Mehr Infos
▲Allgemeine Spezifikation
Product Name
Eaton Moeller series IZMX/INX circuit-breaker
Catalog Number
149785
Product Length/Depth
584 mm
Product Height
597 mm
Product Width
521 mm
Product Weight
69 kg
Compliances
IEC
IEC/EN 60947
RoHS conform
IEC/EN 60947
RoHS conform
Certifications
IEC Rated
EN 60947
IEC 60947
EN Listed
EN 60947
IEC 60947
EN Listed
EAN
4015081463695
Model Code
IZMX40B3-P20W
Delivery program
Type
Air circuit breakers/switch-disconnectorOpen circuit breaker
Frame
IZMX40
Number of poles
Three-pole
Amperage Rating
2000 A
Release system
Electronic release
Technical data - electrical
Voltage rating
690 V
Voltage rating at AC
690 V AC
Rated insulation voltage (Ui)
1000 V
Rated impulse withstand voltage (Uimp)
12 kV AC
Rated uninterrupted current (Iu)
2000 A
Rated uninterrupted current (Iu) at 50°C
2000 A
Rated uninterrupted current (Iu) at 60°C
2000 A
Rated uninterrupted current (Iu) at 70°C
2000 A
Rated short-time withstand current (t = 1 s)
66 kA
Rated short-time withstand current at 50/60 Hz (t = 3 s)
53 kA
Overload release current setting - min
1000 A
Overload release current setting - max
2000 A
Short-circuit release delayed setting - min
2000 A
Short-circuit release delayed setting - max
20000 A
Short-circuit release non-delayed setting
2 - 10 x Ir
Short-circuit release non-delayed setting - min
0 A
Short-circuit release non-delayed setting - max
24000 A
Adjustment range short-term delayed short-circuit release - min
4000 A
Adjustment range short-term delayed short-circuit release - max
20000 A
Adjustment range undelayed short-circuit release - min
4000 A
Adjustment range undelayed short-circuit release - max
24000 A
Rated short-circuit breaking capacity at 400 V, 50 Hz
66 kA
Rated short-circuit making capacity up to 440 V, 50/60 Hz
145 kA
Rated short-circuit making capacity up to 690 V, 50/60 Hz
145 kA
Power of withdrawable switch with cassette
395 W
Closing delay via spring release
35 ms
Electrical connection type of main circuit
Rail connection
Number of standard mechanical operations per hour - max
60
Operating sequence up to 690 V, 50/60 Hz (IEC/EN 60947)
66 kA
Utilization category
B
Overvoltage category
III
Pollution degree
3
Direction of incoming supply
As required
Technical data - mechanical
Device construction
Built-in device slide-in technique
Mounting Method
Withdrawable
Degree of protection
IP20
IP55 with protective cover
IP41 with door sealing frame
IP55 with protective cover
IP41 with door sealing frame
Protection
Professional protection
Number of auxiliary contacts (change-over contacts)
2
Number of auxiliary contacts (normally closed contacts)
0
Number of auxiliary contacts (normally open contacts)
0
Position of connection for main current circuit
Back side
Weight of cassette version (3-pole)
27 kg
Weight of cassette version (4-pole)
35 kg
Weight of fixed withdrawable version (3-pole)
70 kg
Weight of fixed withdrawable version (4-pole)
86 kg
Actuator type
Push button
Terminal capacity (copper bar)
60 mm x 10 mm (1x) for withdrawable units (black)
Design verification as per IEC/EN 61439 - technical data
Rated operational current for specified heat dissipation (In)
2000 A
Equipment heat dissipation, current-dependent
395 W
Ambient operating temperature details
Device with LCD-display -20 °C - 70 °C
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Ambient storage temperature - min
-25 °C
Ambient storage temperature - max
70 °C
Design verification as per IEC/EN 61439
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Additional information
Features
Motor drive optional
Fitted with:
Switched-off indicator
Special features
Cassette must be separately ordered.IZMX-DTP-PTM external voltage measuring module requiredsuitable for zone selectivitysuitable for communicationwith integrated system monitorwith integrated test possibilitywith graphic LCD color displayoptionally fittable by user with comprehensive accessoriesThese are values used in separate switchgear. The actual values will depend on the temperature around the circuit-breaker, which is influenced by the ambient temperature, the degree of protection (IP), the mounting height, the partitions, and any external ventilation. Depending on the specific switchgear design, this may result in derating, which can then be compensated for by increasing the cross-sectional area. Temperature rise tests in the specific switchgear can provide specific and detailed information.
Suitable for
Main conducting paths with 36 kA in IT electrical power networks up to U = 440 V
Used with
Mechanical interlock, IZMX-MIL...C-F Series, IZMX-MIL...C-W Series
Open circuit breaker
Air circuit breakers/switch-disconnector
Open circuit breaker
Air circuit breakers/switch-disconnector
| Merkmal | Wert |
|---|---|
| Bemessungsdauerstrom Iu (EF001389) | 2000 A |
| Bemessungsgrenzkurzschlussausschaltstrom Icu bei 400 V, 50 Hz (EF007048) | 66 kA |
| Überlastauslöser Stromeinstellung (EF002336) | 1000 A |
| Einstellbereich des kurzzeitverzögerten Kurzschlussauslösers (EF007129) | 4000 A |
| Einstellbereich des unverzögerten Kurzschlussauslösers (EF007131) | 4000 A |
| Integrierter Erdschlussschutz (EF007296) | Nein |
| Anschlussart Hauptstromkreis (EF006819) | Schienenanschluss |
| Geeignet für Hutschienenmontage (EF007250) | Nein |
| Hutschienenmontage optional (EF008904) | Nein |
| Anzahl der Hilfskontakte als Öffner (EF001377) | 0 |
| Anzahl der Hilfskontakte als Schließer (EF001376) | 0 |
| Anzahl der Hilfskontakte als Wechsler (EF003531) | 2 |
| Mit Ausgelöstmelder (EF007006) | Ja |
| Mit integriertem Unterspannungsauslöser (EF001390) | Nein |
| Polzahl (EF001391) | 3 |
| Position des Anschlusses für Hauptstromkreis (EF006671) | hinten |
| Ausführung des Betätigungselements (EF006976) | Drucktaster |
| Komplettgerät mit Schutzeinheit (EF008906) | Nein |
| Motorantrieb integriert (EF006697) | Nein |
| Motorantrieb optional (EF007386) | Ja |
| Schutzart (IP) (EF005474) | IP20 |
Datasheet - PDF
▲| Titel: | Größe: | Typ: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| IZMX40B3-P20W 149785 149785_DE.pdf | 281 Kbytes |
|
