IP65DBLLEG EATON ELECTRIC Europäische format, seitlich doppelte legende kit
IP65DBLLEG
EATON-MOELLER
Europäische format, seitlich doppelte legende kit
i-P65, - piktogramm zweiseitig EURO
Eaton i-P65 Doppelseitiges Beschriftungsset, europäisches Format
Leuchtenzubehör > Piktogramm für Not-/Hinweisleuchte
In sich geschlossen
Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von EATON-MOELLER
Bestseller
▲Mehr Infos

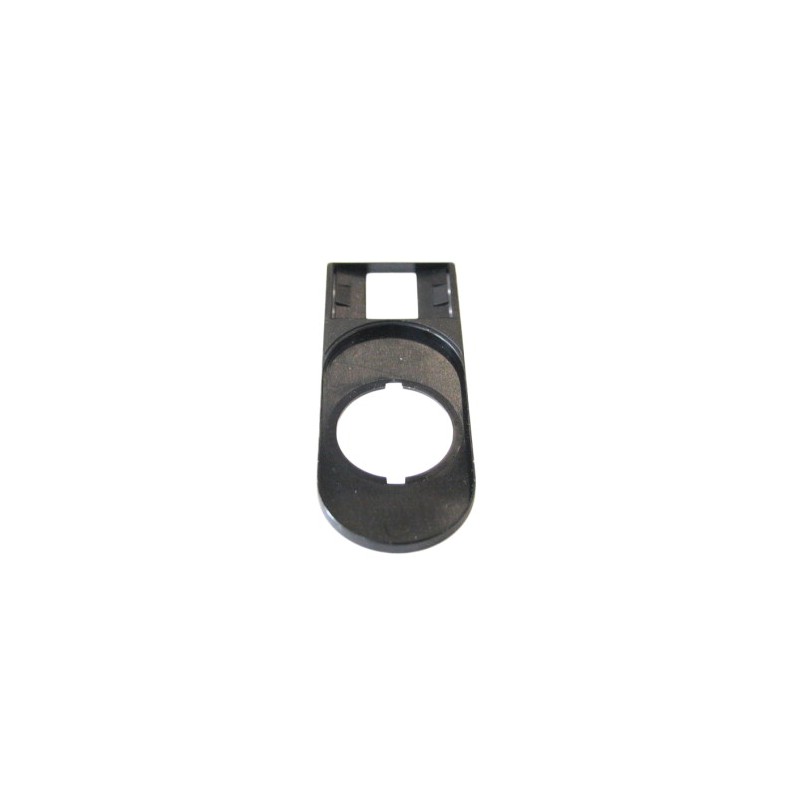

▲Label mount without label, for double actuator pushbutton
Alternate Catalog No.
M22S-STDD-XQ
EL-Nummer (Norway)
4355413
Legend holder, RMQ system, 30x75mm round, black, without label for double actuator pushbutton
Delivery program
Product range
Accessories
Basic function accessories
Legend holder
Single unit/Complete unit
Single unit
Without label
Width
30 mm
Height
75 mm
Design
Round
Colour
Black
RAL Value
RAL 9005
Degree of Protection
IP66
For use with
for double actuators
Connection to SmartWire-DT
no
Technical data
General
Degree of Protection
IP66
Ambient temperatureOpen
-25 - +70 °C
Design verification as per IEC/EN 61439
Technical data for design verification
Rated operational current for specified heat dissipation [In]
0 A
Heat dissipation per pole, current-dependent [Pvid]
0 W
Equipment heat dissipation, current-dependent [Pvid]
0 W
Static heat dissipation, non-current-dependent [Pvs]
0 W
Heat dissipation capacity [Pdiss]
0 W
Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+70 °C
IEC/EN 61439 design verification
10.2 Strength of materials and parts10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2 Strength of materials and parts10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9 Insulation properties10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9 Insulation properties10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9 Insulation properties10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 7.0
Low-voltage industrial components (EG000017) / Text plate holder for control circuit devices (EC001032)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Command and alarm device / Sign carrier for command devices ([email protected] [AKF047014])
Width
30 mm
Height
50 mm
Hole diameter
22 mm
Width opening
0 mm
Height opening
0 mm
Colour
Black
Shape
Rectangular
Approvals
North America Certification
UL/CSA certification not required
Dimensions
Mounting hole with lug slot
Actuating and indicator elements
| Merkmal | Wert |
|---|---|
| Ausführung (EF000010) | Aufkleber |
| Bedeutung des Piktogramms (EF001271) | Rettungsweg |
| Richtung (EF005209) | sonstige |
| Doppelseitig (EF001067) | Ja |
| Länge (EF001438) | 190 mm |
| Breite (EF000008) | 110.5 mm |
| Materialstärke (EF000386) | 2 mm |
| Erkennungsweite (EF008732) | 20 m |
