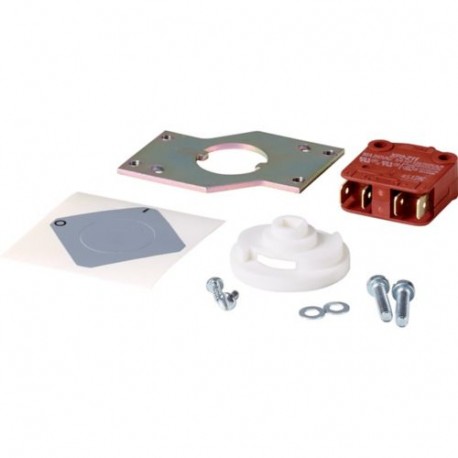

AUX1NO+1NCDCM/DMM 1314300 Y8-1314300 EATON ELECTRIC Hilfsschalter, 1 Schließer + 1 Öffner, für DMM Vergrößern
Die Bilder sind nur orientativ. Bitte prüfen Sie das Artikelstammdatenblatt.

AUX1NO+1NCDCM/DMM 1314300 Y8-1314300 EATON ELECTRIC Hilfsschalter, 1 Schließer + 1 Öffner, für DMM

AUX1NO+1NCDCM/DMM

1314300

Y8-1314300

EATON-MOELLER

Hilfsschalter, 1 Schließer + 1 Öffner, für DMM

AUX1NO+1NCDCM/DMM

Eaton Auxiliary contact, 1N/O+1N/C for DMM part no.

Mehr Infos


Niederspannungsschaltgeräte > Hilfsschalterblock

DUMECO Lasttrennschalter

Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von EATON-MOELLER

Gesamtpreis: $41.51
Stückpreis: $41.51
Dieser Preis ist pro Einheit und ist der Nettowert (ohne Steuern, falls zutreffend).

Wenn unser Preis nicht der beste ist, fragen Sie uns nach einem Angebot Fordern Sie ein Angebot

Bestseller

▲

Mehr Infos

▲


Allgemeine Spezifikation

Product Name
Eaton Accessory Auxiliary contact
Catalog Number
1314300
Product Length/Depth
140 mm
Product Height
4 mm
Product Width
90 mm
Product Weight
0.05 kg
Compliances
CE
Catalog Notes
Switching duty 16 A, 250 V AC
EAN
8711426790063
Model Code
AUX1NO+1NCDCM/DMM

Merkmale und Funktionen

Electric connection type
Screw connection

Allgemein

Model
Top mounting
Mounting method
Front fastening
Type
Auxiliary contact

Klimatische Umweltbedingungen

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
50 °C

Bemessungswerte

Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V
6 A

Ansprechpartner

Number of contacts (change-over contacts)
0
Number of contacts (normally closed contacts)
1
Number of contacts (normally open contacts)
1

Bauartnachweis

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0.11 W
Rated operational current for specified heat dissipation (In)
16 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

Datasheet - PDF

▲
Titel: Größe: Typ:
PDF EATON INDUSTRIAL SWITCH DISCONNECTORS EN.pdf 8 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
AUX1NO+1NCDCM/DMM Y8-1314300 1314300 ES_1314300.pdf 1 Mbytes AUX1NO+1NCDCM/DMM Y8-1314300 1314300 ES_1314300.pdf
