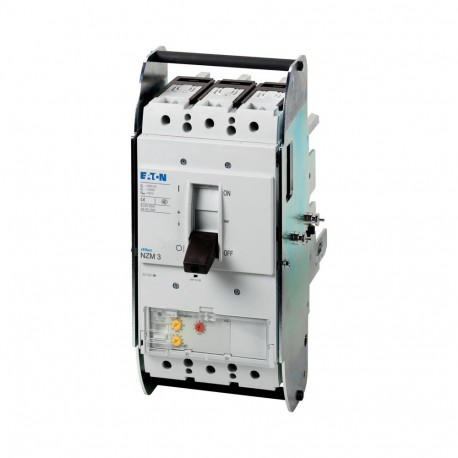

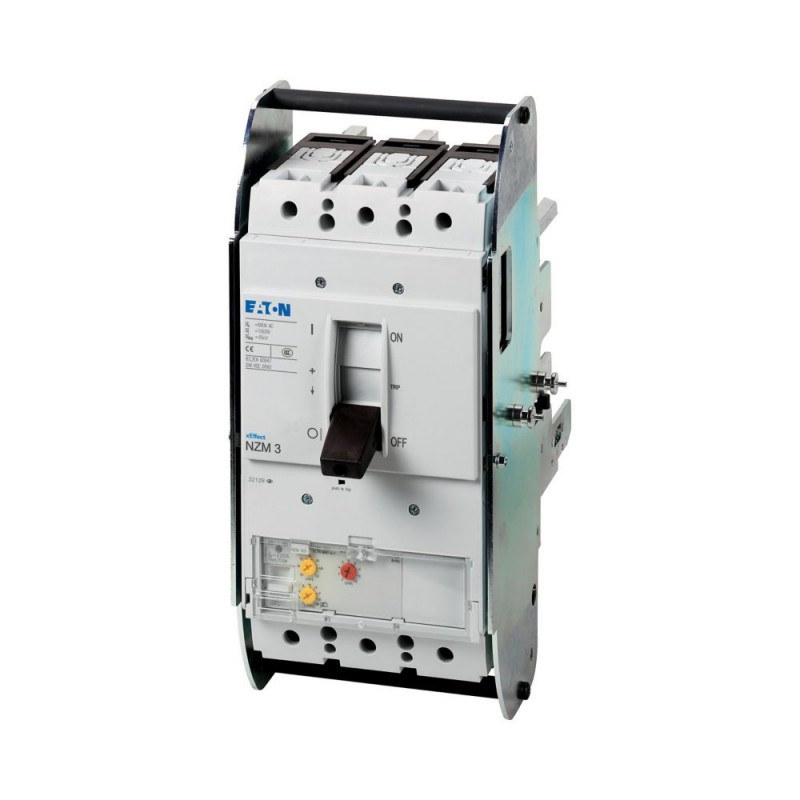

NZMN3-ME220-AVE 110846 EATON MOELLER disjuntor motor, 3P, Iu: 220A Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

NZMN3-ME220-AVE 110846 EATON MOELLER disjuntor motor, 3P, Iu: 220A

NZMN3-ME220-AVE

110846

EATON - MOELLER

Disponível

Envio hoje

Produto sob demanda, sem reembolso.

disjuntor motor, 3P, Iu: 220A

Mais detalhes


Disjuntores

Circuit-breakers NZM - EATON - MOELLER

NZM3 - EATON - MOELLER

* Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Como funciona

Como é que isso funciona?

1 Adicione os produtos de sua escolha ao carrinho de compras
2 Introduza os seus dados de contato e envie sua solicitação
3 Você será notificado por e-mail com a nossa cotação
4 Você simplesmente aceite o orçamento e espere a sua encomenda

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Produtos relacionados

Mais informação



Delivery programme
Product range
  Circuit-breaker
Protective function
  Motor protection
Standard/Approval
  IEC
Installation type
  Withdrawable
Release system
  Electronic release
Construction size
  NZM3
Description
  IEC/EN 60947-4-1, IEC/EN 60947-2

The circuit-breaker fulfills all requirements for AC-3 switching category.


R.m.s. value measurement and “thermal memory”
adjustable time delay setting to overcome current peaks tr: 2 – 20 s at 6 x Ir also infinity (without overload releases)
All AC-3 rating data applies to direct switching by the circuit-breaker under normal operating conditions. If, for example, a contactor takes over AC-3 switching under normal operating conditions, the full rated uninterrupted current applies to the circuit-breaker, In = Iu.
Number of poles
  3 pole
Standard equipment
  Screw connection
Switching capacity

400/415 V 50 Hz
IcukA50
Rated current = rated uninterrupted current
In = IuA220
Setting range

Overload trip

General
Standards
  IEC/EN 60947
Protection against direct contact
  Finger and back of hand proof to VDE 0106 Part 100
Climatic proofing
  Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Ambient temperature

Ambient temperature, storage
 °C- 40 - + 80
Operation
 °C-25 - +70
Mechanical shock resistance (10 ms half-sinusoidal shock) according to IEC 60068-2-27
 g20 (half-sinusoidal shock 20 ms)
Safe isolation to EN 61140

Between auxiliary contacts and main contacts
 V AC500
between the auxiliary contacts
 V AC300
Weight
 kg6.34
Mounting position

Vertical and 90° in all directions

Technical data for design verification

Rated operational current for specified heat dissipation
InA220
Equipment heat dissipation, current-dependent
PvidW14.52
Operating ambient temperature min.
 °C-25
Operating ambient temperature max.
 °C70
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Meets the product standard's requirements.
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0
Low-voltage industrial components (EG000017) / Motor protection circuit-breaker (EC000074)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Circuit breaker (LV < 1 kV) / Motor protection circuit-breaker ([email protected] [AGZ529013])
Overload release current setting
 A110 - 220
Adjustment range undelayed short-circuit release
 A220 - 3080
Thermal protection
  No
Phase failure sensitive
  Yes
Switch off technique
  Electronic
Rated operating voltage
 V690 - 690
Rated permanent current Iu
 A220
Rated operation power at AC-3, 230 V
 kW55
Rated operation power at AC-3, 400 V
 kW110
Type of electrical connection of main circuit
  Screw connection
Type of control element
  Rocker lever
Device construction
  Built-in device slide-in technique (withdrawable)
With integrated auxiliary switch
  No
With integrated under voltage release
  No
Number of poles
  3
Rated short-circuit breaking capacity lcu at 400 V, AC
 kA50
Degree of protection (IP)
  IP20
Height
 mm346
Width
 mm185
Depth
 mm260
