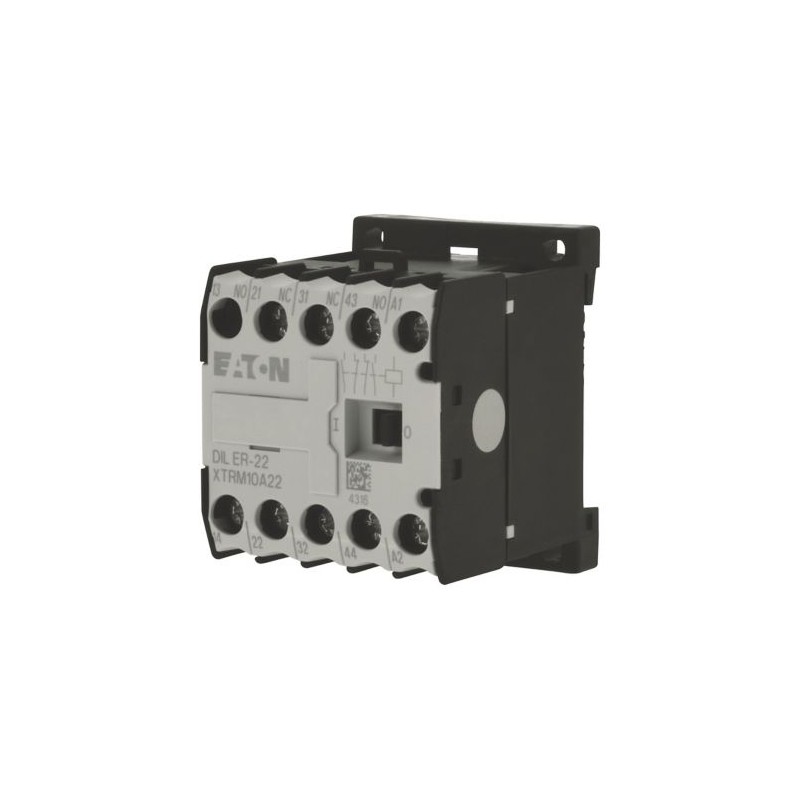

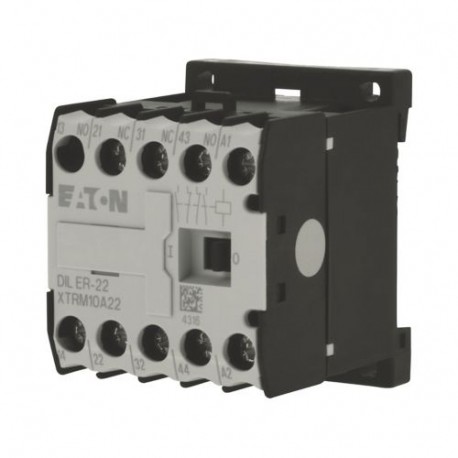

DILER-22-G(24VDC) 010042 EATON MOELLER XTRM10A22TD Minicontactor auxiliar 2no + 24vdc 2NF DILER-22 (24VDC) Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

DILER-22-G(24VDC) 010042 EATON MOELLER XTRM10A22TD Minicontactor auxiliar 2no + 24vdc 2NF DILER-22 (24VDC)

DILER-22-G(24VDC)

010042

EATON - MOELLER

Disponível

Envio hoje

XTRM10A22TD Minicontactor auxiliar 2no + 24vdc 2NF DILER-22 (24VDC)

Mais detalhes


Contatores

DIL Contactors - EATON - MOELLER

Mini Contactor Relays DILE - EATON - MOELLER

* Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

QuantidadePreço
1+$24.66
5+$22.80
10+$22.23
15+$21.95
20+$21.77
*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Como funciona

Como é que isso funciona?

1 Adicione os produtos de sua escolha ao carrinho de compras
2 Introduza os seus dados de contato e envie sua solicitação
3 Você será notificado por e-mail com a nossa cotação
4 Você simplesmente aceite o orçamento e espere a sua encomenda

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Produtos relacionados

Mais informação



Delivery programme
Product range
  DILER Mini-contactors
Application
  Contactor relays
Description
  with interlocked opposing contacts
Connection technique
  Screw terminals
Rated operational current

Conventional free air thermal current, 3 pole, 50 - 60 Hz

Open

at 50 °C
Ith =IeA10
AC-15

220 V 230 V 240 V
IeA6
380 V 400 V 415 V
IeA3
Contacts

N/O = Normally open
  2 N/O
N/C = Normally closed
  2 NC
Contact sequence
  >
Code number and version of combination

Distinctive number
  22E
Actuating voltage
  24 V DC
Voltage AC/DC
  DC operation
Instructions
  Contact numbers to EN 50011
Coil terminal markings to EN 50005
Integrated diode-resistor combination
Coil rating 2.6 W
Technical data
General
Standards
  IEC/EN 60947, VDE 0660, UL, CSA
Lifespan, mechanical

DC operated
Operationsx 10620
Maximum operating frequency
Operations/h 9000
Climatic proofing
  Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Ambient temperature

Open
 °C-25 - +50
Enclosed
 °C- 25 - 40
Mounting position

Mounting position
  As required, except vertical with terminals A1/A2 at the bottom
Mounting position
  >
Mechanical shock resistance (IEC/EN 60068-2-27)

Half-sinusoidal shock, 10 ms

Basic unit with auxiliary contact module
 g
N/O contact
 g10
N/C contact
 g8
Degree of Protection
  IP20
Protection against direct contact when actuated from front (EN 50274)
  Finger and back-of-hand proof
Weight

DC operated
 kg0.2
Terminal capacities
 mm2
Screw terminals

Solid
 mm21 x (0.75 - 2.5)
2 x (0.75 - 2.5)
Flexible with ferrule
 mm21 x (0.75 - 1.5)
2 x (0.75 - 1.5)
Solid or stranded
 AWG18 - 14
Terminal screw
  M3.5
Pozidriv screwdriver
 Size2
Standard screwdriver
 mm0.8 x 5.5
1 x 6
Max. tightening torque
 Nm1.2
Contacts
Positive operating contacts to EN 60947-5-1 appendix L, including auxiliary contact module
  Yes
Rated impulse withstand voltage
UimpV AC6000
Overvoltage category/pollution degree
  III/3
Rated insulation voltage
UiV AC690
Rated operational voltage
UeV AC600
Safe isolation to EN 61140

between coil and auxiliary contacts
 V AC300
between the auxiliary contacts
 V AC300
Rated operational current
 A
Conventional free air thermal current, 3 pole, 50 - 60 Hz

Open

at 50 °C
Ith =IeA10
AC-15

220 V 230 V 240 V
IeA6
380 V 400 V 415 V
IeA3
500 V
IeA1.5
DC current

Notes
  Switch-on and switch-off conditions based on DC-13, time constant as specified.
DC-13 L/R - 15 ms

Contacts in series:
 A
1
24 VA2.5
2
60 VA2.5
3
110 VA1.5
3
220 VA0.5
Control circuit reliability
Failure rateλ<10-8, < one failure at 100 million operations
(at Ue = 24 V DC, Umin = 17 V, Imin = 5.4 mA)
Short-circuit rating without welding

Maximum overcurrent protective device

220 V 230 V 240 V
 PKZM04
380 V 400 V 415 V
 PKZM04
Short-circuit protection maximum fuse

500 V
 A gG/gL6
500 V
 A fast10
Current heat loss at Ith

DC operated
 W0.3
Magnet systems
Voltage tolerance

DC operated

Notes
  Smoothed DC, three-phase bridge rectifiers or smoothed double-wave rectification
Pick-up voltage
  0.85 1.3
at 24 V: without auxiliary contact component (40 °C)
Pick-upx Uc0.7 - 1.3
Power consumption

DC operation

Power consumption Pick-up = Sealing
 VA/W2.6
duty factor
 % DF100
Switching times at 100 % Uc (approximate values)

DC operated closing delay
 ms26 - 35
DC operated N/O contact opening delay
 ms15 - 25
DC operated With auxiliary contact module Max. closing delay
 ms70
Design verification as per IEC/EN 61439(Show features)(Hide features)
Technical data for design verification

Rated operational current for specified heat dissipation
InA6
Heat dissipation per pole, current-dependent
PvidW0.4
Equipment heat dissipation, current-dependent
PvidW0
Static heat dissipation, non-current-dependent
PvsW2.3
Heat dissipation capacity
PdissW0
Operating ambient temperature min.
 °C-25
Operating ambient temperature max.
 °C50
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Meets the product standard's requirements.
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0(Show features)(Hide features)
Low-voltage industrial components (EG000017) / Contactor relay (EC000196)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Contactor (LV) / Contactor relay ([email protected] [AAB716011])
Rated control supply voltage Us at AC 50HZ
 V0 - 0
Rated control supply voltage Us at AC 60HZ
 V0 - 0
Rated control supply voltage Us at DC
 V24 - 24
Voltage type for actuating
  DC
Rated operation current Ie , 400 V
 A3
Connection type auxiliary circuit
  Screw connection
Mounting method
  DIN-rail/screw
Interface
  No
Number of auxiliary contacts as normally closed contact
  2
Number of auxiliary contacts as normally open contact
  2
Number of auxiliary contacts as normally closed contact, delayed switching
  0
Number of auxiliary contacts as normally open contact, leading
  0
With LED indication
  No
Number of auxiliary contacts as change-over contact
  0
Manual operation possible
  No
Approvals
Product Standards  IEC/EN 60947-4-1; UL 508; CSA-C22.2 No. 14-05; CE marking
UL File No.  E29184
UL Category Control No.  NKCR
CSA File No.  012528
CSA Class No.  3211-03
North America Certification  UL listed, CSA certified
Specially designed for North America  No
Characteristics
>
Component lifespan (operations)
Ie = Rated operational current
Dimensions
>
DILER-…
DILER-…-G(-C)
>
DILER-…(-C) + …DILE(-C)
DILER-…-G(-C) + …DILE(-C)
>
2DILE-… + MVDILE + …DILE
2DILE-…-G + MVDILE + …DILE
CAD data
>Product-specific CAD data
>3D Preview

Datasheet - PDF
