> >>M22-WRS-2K10-BVP 110918 M22-WRS-2K10-BVPQ ELECTRIC M22-WRS-2K10-BVPQ seletor de chave completa
Produto anterior Próximo produto

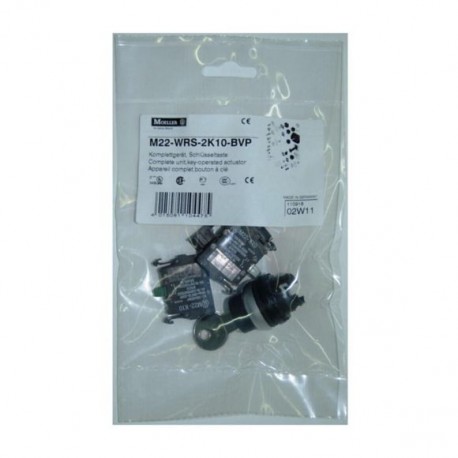

M22-WRS-2K10-BVP 110918 M22-WRS-2K10-BVPQ EATON ELECTRIC M22-WRS-2K10-BVPQ seletor de chave completa Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

M22-WRS-2K10-BVP 110918 M22-WRS-2K10-BVPQ EATON ELECTRIC M22-WRS-2K10-BVPQ seletor de chave completa

M22-WRS-2K10-BVP

110918

M22-WRS-2K10-BVPQ

EATON-MOELLER

M22-WRS-2K10-BVPQ seletor de chave completa

Seletor de teclas completo; Interligadas; 2 vagas; Chave MS1; 2 NÃO;

Eaton Moeller® series M22 Key-operated actuator, RMQ-Titan, maintained, 2 positions, 2 NO, Blister pack for hanging

Mais detalhes


Disjuntores de baixa tensão > Elemento frontal para interruptor seletor

Auxiliares de controle e sinalização

* Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER

Preço total: $51.65
Preço unitário: $51.65

Quantidade Preço
1+$51.65
2+$47.70
3+$43.55
4+$41.20
6+$39.60
*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Se o nosso preço não é o melhor, peça-nos uma cotação Solicitar uma cotação

Mais informação

▲


General specifications

Product Name
Eaton Moeller® series M22 Key-operated actuator
Catalog Number
110918
EAN
4015081104475
Product Length/Depth
50 mm
Product Height
80 mm
Product Width
50 mm
Product Weight
0.063 kg
Compliances
CE
Certifications
DNV
GL
LR
Model Code
M22-WRS-2K10-BVP

Especificações do produto

Actuator color
Black
Actuator function
Switching function latching
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Fitted with:
Front ring
Pollution degree
3
Connection to SmartWire-DT
No
Actuator type
Key
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0.11 W
Opening diameter
22.5 mm
Opening height
0 mm
Rated operational current for specified heat dissipation (In)
6 A
Static heat dissipation, non-current-dependent Pvs
0 W
Width opening
0 mm
Bezel color
Titanium
Bezel material
Plastic
Overvoltage category
III
Degree of protection
NEMA 4X
Degree of protection (front side)
IP66
Indicator color
Other
Lens type
Round
Number of switch positions
2
Product category
RMQ-Titan

Datasheet - PDF

▲
Título: Tamanho: Tipo:
PDF EATON COMMAND INDICATION EN.pdf 23 Mbytes
M22-WRS-2K10-BVP M22-WRS-2K10-BVPQ 110918 EN_289241.pdf 3 Mbytes M22-WRS-2K10-BVP M22-WRS-2K10-BVPQ 110918 EN_289241.pdf
