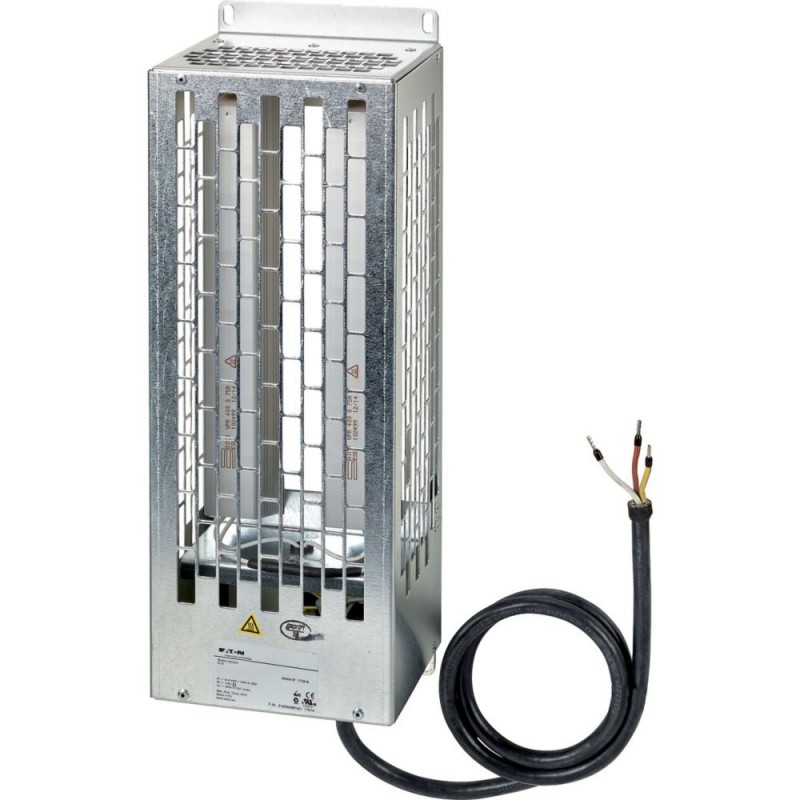

DX-BR100-1K4 171896 EATON MOELLER DX-BR100-1K1 PowerXL Resistência de frenagem Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

DX-BR100-1K4 171896 EATON MOELLER DX-BR100-1K1 PowerXL Resistência de frenagem

DX-BR100-1K4

171896

EATON - MOELLER

Disponível

Envio hoje

Produto sob demanda, sem reembolso.

DX-BR100-1K1 PowerXL - Resistência de frenagem

Mais detalhes


Frequency inverters - EATON - MOELLER

Frequency inverters M-MAX - EATON - MOELLER

* Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

QuantidadePreço
1+$429.89
2+$424.98
*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Como funciona

Como é que isso funciona?

1 Adicione os produtos de sua escolha ao carrinho de compras
2 Introduza os seus dados de contato e envie sua solicitação
3 Você será notificado por e-mail com a nossa cotação
4 Você simplesmente aceite o orçamento e espere a sua encomenda

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Produtos relacionados

Mais informação



Delivery programme
Product range
  Accessories
Accessories
  Braking resistances
Degree of Protection
  IP20
For use with
  DA1, DL1, DG1, SVX, SPX
Description
  Wire wound resistor in ceramic potting compound inside aluminum case, combined
Installed in a housing designed to prevent accidental contact and featuring a temperature monitoring switch and a 1-meter connection cable
Resistance value
R100
Continuous braking rating
PDBkW1.1
Design verification as per IEC/EN 61439(Show features)(Hide features)
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Meets the product standard's requirements.
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0(Show features)(Hide features)
Low-voltage industrial components (EG000017) / Accessories for frequency controller (EC002025)
Electric engineering, automation, process control engineering / Electrical drive / Electrical drive (accessories) / Frequency controller (accessories) ([email protected] [ACN127008])
Type of accessory
  Breaking resistance
Approvals
Product Standards  UL508; C22.2
UL File No.  E300273
UL Category Control No.  NMTR2, NMTR8
CSA File No.  UL report applies to both US and Canada
North America Certification  UL listed, certified by UL for use in Canada
Suitable for  Branch circuits
Max. Voltage Rating  600
Degree of Protection  IEC: IP00
Dimensions
IL040015ZU Braking resistances

>>

Datasheet - PDF
