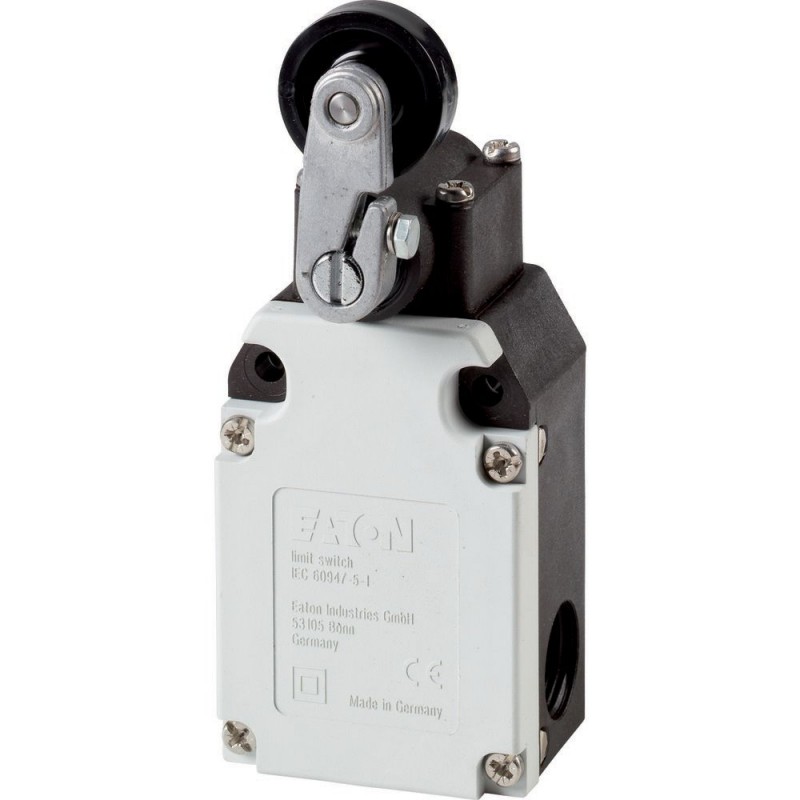

AT4/11-1/IA/R316 026601 EATON MOELLER Int.Pos., Roller Lever, 1C + 1A Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

AT4/11-1/IA/R316 026601 EATON MOELLER Int.Pos., Roller Lever, 1C + 1A

AT4/11-1/IA/R316

026601

EATON - MOELLER

Disponível

Envio hoje

Produto sob demanda, sem reembolso.

Int.Pos., Roller Lever, 1C + 1A

Mais detalhes


* Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Produtos relacionados

Mais informação



Delivery programme
Basic function
  Position switches
Safety position switches
Part group reference
  AT4
Product range
  Rotary lever
Degree of Protection
  IP65
Features
  Complete unit
Ambient temperature
 °C-25 - +70
Design
  EN 50041 Form A
Approval

General
Standards
  IEC/EN 60947
Climatic proofing
  Damp heat, constant, to IEC 60068-2-78; damp heat, cyclical, to IEC 60068-2-30
Ambient temperature
 °C-25 - +70
Mounting position
  As required
Degree of Protection
  IP65
Terminal capacities
 mm2
Solid
 mm21 x (0.75 - 2.5)
2 x (0.75 - 1.5)
Flexible with ferrule
 mm21 x (0.5 - 1.5)
2 x (0.5 - 1.5)
Contacts/switching capacity
Rated impulse withstand voltage
UimpV AC6000
Rated insulation voltage
UiV500
Overvoltage category/pollution degree
  III/3
Rated operational current
IeA
AC-15

24 V
IeA10
220 V 230 V 240 V
IeA6
380 V 400 V 415 V
IeA4
DC-13

24 V
IeA10
110 V
IeA1
220 V
IeA0.5
Supply frequency
 Hzmax. 400
Short-circuit rating to IEC/EN 60947-5-1

max. fuse
 A gG/gL6
Repetition accuracy
 mm0.02
Mechanical variables
Lifespan, mechanical
Operationsx 1068
Contact temperature of roller head
 °C
Technical data for design verification

Operating ambient temperature min.
 °C-25
Operating ambient temperature max.
 °C70
Technical data ETIM 6.0(Show features)(Hide features)
Sensors (EG000026) / End switch (EC000030)
Electric engineering, automation, process control engineering / Binary sensor technology, safety-related sensor technology / Position switch / Position switch (Type 1) ([email protected] [AGZ382012])
Width sensor
 mm56
Diameter sensor
 mm0
Height of sensor
 mm83
Length of sensor
 mm0
Rated operation current Ie at AC-15, 24 V
 A6
Rated operation current Ie at AC-15, 125 V
 A0
Rated operation current Ie at AC-15, 230 V
 A6
Rated operation current Ie at DC-13, 24 V
 A10
Rated operation current Ie at DC-13, 125 V
 A1
Rated operation current Ie at DC-13, 230 V
 A0.6
Switching function
  Slow-action switch
Output electronic
  No
Forced opening
  Yes
Number of safety auxiliary contacts
  1
Number of contacts as normally closed contact
  1
Number of contacts as normally open contact
  1
Number of contacts as change-over contact
  0
Type of interface
  None
Type of interface for safety communication
  None
Housing according to norm
  -
Construction type housing
  Cuboid
Material housing
  Plastic
Coating housing
  -
Type of control element
  Square roller lever
Alignment of the control element
  -
Type of electric connection
  -
With status indication
  No
Suitable for safety functions
  Yes
Explosion safety category for gas
  None
Explosion safety category for dust
  None
Ambient temperature during operating
 °C-25 - 70
Degree of protection (IP)
  IP65

Datasheet - PDF

Title:Language:Size:Type:
pdf- Position switch, 1N/O1N/C, wide, IP65_x, roller lever - EATON - AT4/11-1/IA/R316 - 26601English209 Kbytespdf- Position switch, 1N/O1N/C, wide, IP65_x, roller lever - EATON - AT4/11-1/IA/R316 - 26601
