Ver maior

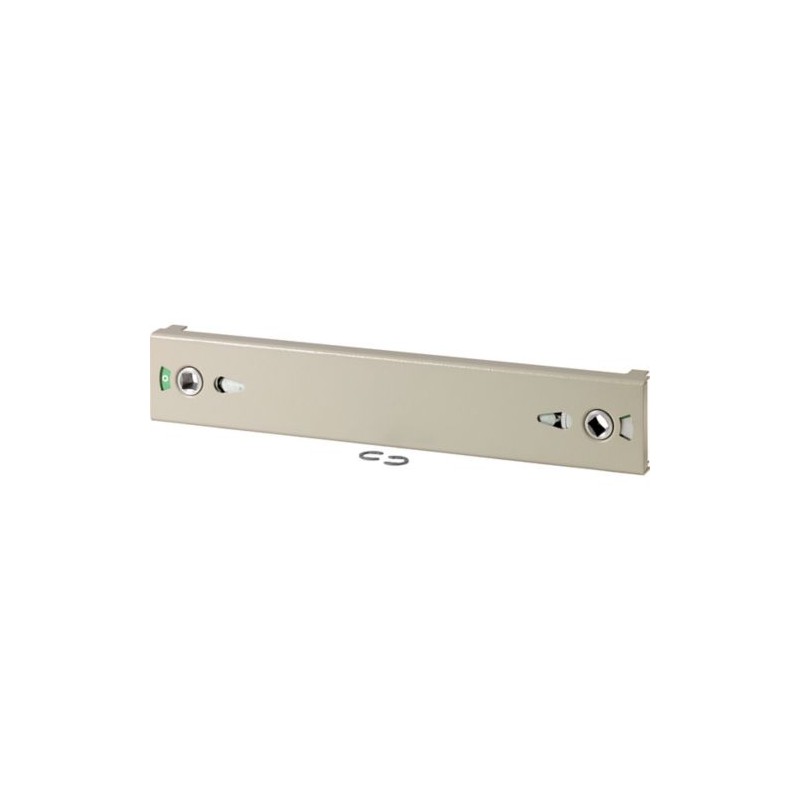

CODMV630N/1000N 1314682 EATON ELECTRIC DMV interruptor 630n / 1000N
CODMV630N/1000N
1314682
EATON-MOELLER
DMV interruptor 630n / 1000N
Mecanismo de comutação DMV 630N/1000N
Eaton DMV Change-Over Mechanism, for DMV630N/1000N
Disjuntores de baixa tensão > Acessórios para a tecnologia de comutação por baixa tensão
DUMECO Switch Disconnectors
* Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER
Best sellers
▲Mais informação
▲General specifications
Product Name
Eaton DMV Accessory Change-over mechanism
Catalog Number
1314682
EAN
8711426181762
Product Length/Depth
49 mm
Product Height
5 mm
Product Width
19 mm
Product Weight
2.48 kg
Compliances
CE
Catalog Notes
Changeover switch 1 - 0 - 2
Model Code
CODMV630N/1000N
Especificações do produto
Type
Changeover mechanism
Accessories
Without switch, drive shaft, and rotary handle.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Accessory/spare part type
Converter
Ambient operating temperature - max
55 °C
Ambient operating temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
Datasheet - PDF
▲| Título: | Tamanho: | Tipo: |
|---|---|---|
| PDF EATON INDUSTRIAL SWITCH DISCONNECTORS EN.pdf | 8 Mbytes |
|
| PDF CATALOGUE EATON EN.pdf | 51 Mbytes |
|
| CODMV630N/1000N 1314682 ES_1314682.pdf | 1 Mbytes |
|
