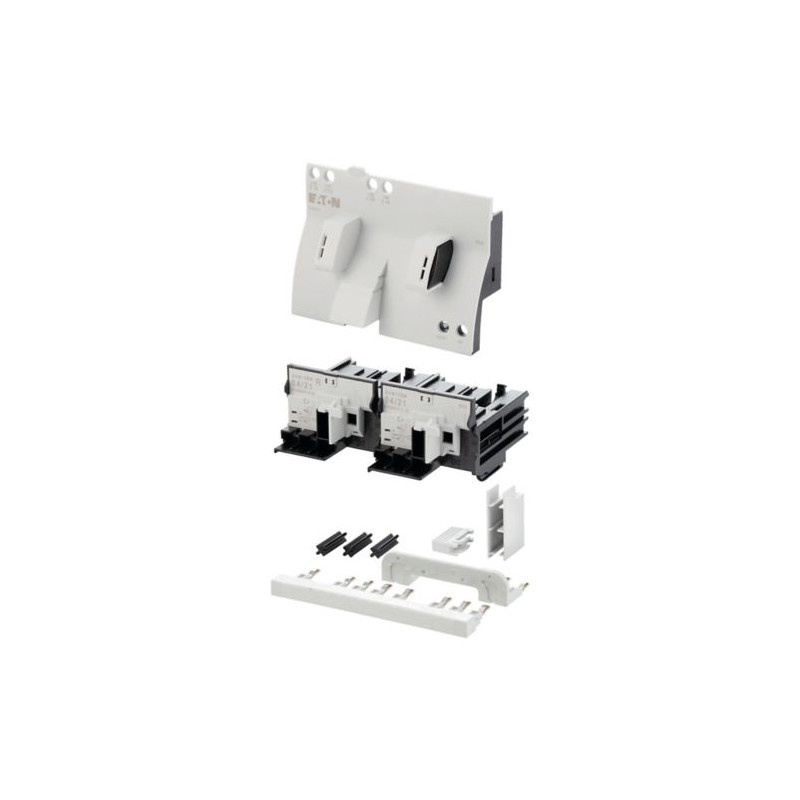

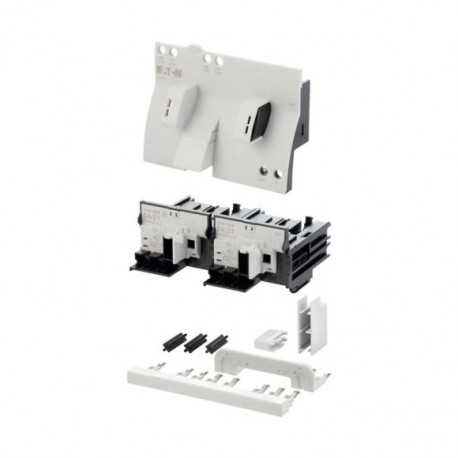

PKZM0-XRM12 283185 XTPAXTPCRB EATON ELECTRIC Conexões Jogo XTPAXTPCRB
PKZM0-XRM12
283185
XTPAXTPCRB
EATON-MOELLER
Conexões Jogo XTPAXTPCRB
Conexão Set Inverter Starter Para conexão entre PKZM0 e
Eaton Moeller® series PKZM0 Wiring set, For reversing starters, DILM7-M12
Disjuntores de baixa tensão > Jogo de cabos para disjuntor
Acessórios PKZ
* Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER
geralmente comprados juntos
▲Best sellers
▲Mais informação
▲General specifications
Product Name
Eaton Moeller® series PKZM0 Accessory Wiring set
Catalog Number
283185
EAN
4015082831851
Product Length/Depth
95 mm
Product Height
67 mm
Product Width
90 mm
Product Weight
0.14 kg
Certifications
CSA-C22.2 No. 14
IEC/EN 60947-4-1
CE
CSA Class No.: 3211-05
UL File No.: E36332
UL Category Control No.: NLRV
CSA
CSA File No.: 165628
UL
UL 508
IEC/EN 60947-4-1
CE
CSA Class No.: 3211-05
UL File No.: E36332
UL Category Control No.: NLRV
CSA
CSA File No.: 165628
UL
UL 508
Model Code
PKZM0-XRM12
Geral
Model
Reversing switching
Product category
Accessories
Condições meteorológicas
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C
Classificação elétrica
Rated operational voltage (Ue) - max
415 VAC
Verificação do design
Equipment heat dissipation, current-dependent Pvid
1.5 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0.5 W
Rated operational current for specified heat dissipation (In)
15.5 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Datasheet - PDF
▲| Título: | Tamanho: | Tipo: |
|---|---|---|
| PDF EATON SWITCHING PROTECTING MOTORS EN.pdf | 34 Mbytes |
|
| PDF CATALOGUE EATON EN.pdf | 51 Mbytes |
|
| PKZM0-XRM12 XTPAXTPCRB 283185 DE_103007.pdf | 1 Mbytes |
|
