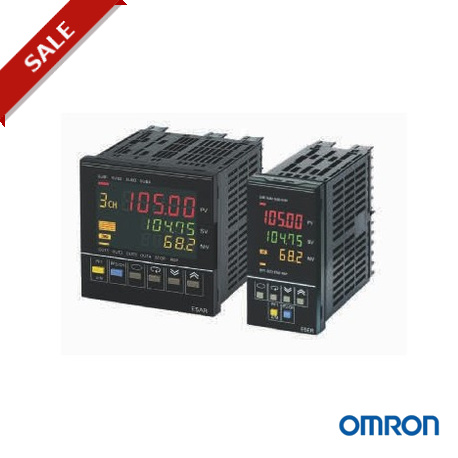

E5AR-QQ43DW-FLK 100-240 VAC 129533 OMRON 2 Legami Di 4 Eventi 4 Sale (V/I+V) 4 Allarme.SPDT RS485

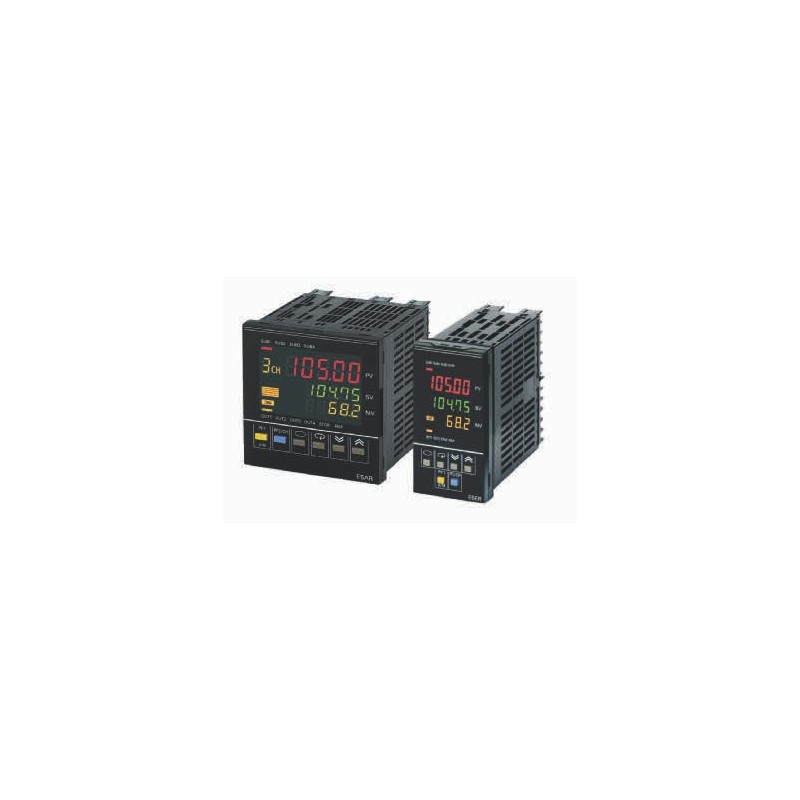

E5_R/E5_R-T Advanced and Multi-Loop controllers
Fast, accurate and equipped for application specific needs
The E5_R series provides you with high accuracy inputs (0.01°C for Pt100) and
a 50 ms sample and control cycle for all four loops. Its unique Disturbance Overshoot
Reduction Adjustment ensures solid, robust control.
• Easy and clear read-out thanks to bright Liquid Crystal Display
• Exceptional versatility – multi-loop control, cascade control, and valve control
• Easy integration with DeviceNet, PROFIBUS or Modbus
• SV programmer optional, 32 programs with up to 256 segments
Ordering information
Function Loops Input
Event
Number of Outputs AUX
Communication Order code (96 × 96 mm)
analog
Inputs
outputs
outputs
100 to 240 VAC 24 VAC/DC
standard 1 1 2 2 QC,Q 4R – E5AR-Q4B AC100-240 E5AR-Q4B AC/DC24 standard 1 1 2 2 QC,Q 4R RS-485 E5AR-Q43B-FLK AC100-240V
standard 1 1 6 2 QC,Q 4R RS-485 E5AR-Q43DB-FLK AC100-240V
standard 1 1 6 4 QC,Q,C,C 4R RS-485 E5AR-QC43DB-FLK AC100-240 E5AR-QC43DB-FLK AC/DC24 standard max 2 2 4 2 QC,Q 4R RS-485 E5AR-Q43DW-FLK AC100-240V
standard max 2 2 4 4 QC,Q,QC,Q 4R RS-485 E5AR-QQ43DW-FLK AC100-240 E5AR-QQ43DW-FLK AC/24 standard max 4 4 4 4 QC,Q,QC,Q 4R RS-485 E5AR-QQ43DWW-FLK AC100-240V
standard 1 1 2 2 C,C 4R – E5AR-C4B AC100-240 E5AR-C4B AC/DC24 standard 1 1 2 2 C,C 4R RS-485 E5AR-C43B-FLK AC100-240V
standard 1 1 6 2 C,C 4R RS-485 E5AR-C43DB-FLK AC100-240V
standard max 2 2 4 2 C,C 4R RS-485 E5AR-C43DW-FLK AC100-240V
standard max 4 4 4 4 C,C,C,C 4R RS-485 E5AR-CC43DWW-FLK AC100-240 E5AR-CC43DWW-FLK AC/DC24 valve 1 1 + pot 4 2 R,R 4R – E5AR-PR4DF AC100-240 E5AR-PR4DF AC/DC24
valve 1 1 + pot 4 4 R,R,QC,Q 4R RS-485 E5AR-PRQ43DF-FLK AC100-240 E5AR-PRQ43DF-FLK AC/DC24 standard 1 1 2 2 QC,Q 4R DeviceNet E5AR-Q4B-DRT AC100-240V E5AR-Q4B-DRT AC24V standard 1 1 2 4 QC,Q,C,C 4R DeviceNet E5AR-QC4B-DRT AC100-240V E5AR-QC4B-DRT AC24V standard max 2 2 – 4 QC,Q,QC,Q 4R DeviceNet E5AR-QQ4W-DRT AC100-240V E5AR-QQ4W-DRT AC24V standard 1 1 2 2 C,C 4R DeviceNet E5AR-C4B-DRT AC100-240V E5AR-C4B-DRT AC24V standard max 4 4 – 4 C,C,C,C 4R DeviceNet E5AR-CC4WW-DRT AC100-240V
valve 1 1 + pot – 2 R,R 4R DeviceNet E5AR-PR4F-DRT AC100-240V E5AR-PR4F-DRT AC24V valve 1 1 + pot – 4 R,R,QC,Q 4R DeviceNet E5AR-PRQ4F-DRT AC100-240V E5AR-PRQ4F-DRT AC24V SV programmer 1 1 2 2 QC,Q 4R – E5AR-TQ4B AC100-240 E5AR-TQ4B AC/DC24
SV programmer 1 1 2 2 C,C 4R – E5AR-TC4B AC100-240 E5AR-TC4B AC/DC24
SV programmer 1 1 2 2 QC,Q 4R RS-485 E5AR-TQ43B-FLK AC100-240
SV programmer 1 1 2 2 C,C 4R RS-485 E5AR-TC43B-FLK AC100-240
SV programmer 1 1 10 2 QC,Q 10T RS-485 E5AR-TQE3MB-FLK AC100-240
SV programmer 1 1 10 2 C,C 10T RS-485 E5AR-TCE3MB-FLK AC100-240
SV programmer 1 1 10 4 QC,Q,C,C 10T RS-485 E5AR-TQCE3MB-FLK AC100-240V E5AR-TQCE3MB-FLK AC/DC24
SV programmer max 2 2 4 2 QC,Q 4R RS-485 E5AR-TQ43DW-FLK AC100-240
SV programmer max 2 2 4 2 C,C 4R RS-485 E5AR-TC43DW-FLK AC100-240
SV programmer max 2 2 8 4 QC,Q,QC,Q 10T RS-485 E5AR-TQQE3MW-FLK AC100-240 E5AR-TQQE3MW-FLK AC/DC24
SV programmer max 4 4 8 2 C,C,C,C 10T RS-485 E5AR-TCCE3MWW-FLK AC100-240 E5AR-TCCE3MWW-FLK AC/DC24
SV programmer max 4 4 8 4 QC,Q,QC,Q 10T RS-485 E5AR-TQQE3MWW-FLK AC100-240
SV programmer + valve 1 1 + pot 4 2 R,R 4R – E5AR-TPR4DF AC100-240 E5AR-TPR4DF AC/DC24
SV programmer + valve 1 1 + pot 8 4 R,R,QC,Q 10T RS-485 E5AR-TPRQE3MF-FLK AC100-240 E5AR-TPRQE3MF-FLK AC/DC24
Note • Standard = heat and/or cool PID control, valve = valve positioning (relay up/down) (PRR)
• max 2 = 2 loops heat and/or cool or 1 loop cascade, ratio or remote SP
• max 4 = 4 loops heat and/or cool
• 1, 2 or 4 = number of analog universal input 1 + pot = 1 universal and 1 slide wire feedback from valve
• QC = voltage (pulse) or current (switch), Q = voltage (pulse), C = current, 4R = 4 two pole relay, 2T = two transistor output NPN
531
E5_R/E5_R-T Advanced and Multi-Loop controllers
Function Loops Input
Event
Number of Outputs AUX
Communication Order code (48 × 96 mm)
analog
Inputs
outputs
outputs
100 to 240 VAC 24 VAC/DC
standard 1 1 2 2 QC+Q 4R – E5ER-Q4B AC100-240 E5ER-Q4B AC/DC24 standard 1 1 2 2 QC+Q 4R RS-485 E5ER-Q43B-FLK AC100-240V
standard 1 1 2 4 QC+Q+C+C 4R RS-485 E5ER-QC43B-FLK AC100-240 E5ER-QC43B-FLK AC/DC24 standard 1 1 6 2 QC+Q 2T RS-485 E5ER-QT3DB-FLK AC100-240V
standard max 2 2 4 2 QC+Q 2T RS-485 E5ER-QT3DW-FLK AC100-240 E5ER-QT3DW-FLK AC/DC24 standard 1 1 2 2 C+C 4R – E5ER-C4B AC100-240 E5ER-C4B AC/DC24 standard 1 1 2 2 C+C 4R RS-485 E5ER-C43B-FLK AC100-240V
standard 1 1 6 2 C+C 2T RS-485 E5ER-CT3DB-FLK AC100-240V
standard max 2 2 4 2 C+C 2T RS-485 E5ER-CT3DW-FLK AC100-240 E5ER-CT3DW-FLK AC/DC24 valve 1 1 + pot 4 2 R+R 2T – E5ER-PRTDF AC100-240 E5ER-PRTDF AC/DC24
valve 1 1 + pot – 4 R+R+QC+Q 4R RS-485 E5ER-PRQ43F-FLK AC100-240 E5ER-PRQ43F-FLK AC/DC24 standard 1 1 2 2 QC+Q 2T DeviceNet E5ER-QTB-DRT AC100-240V E5ER-QTB-DRT AC24V standard max 2 2 – 2 QC+Q 2T DeviceNet E5ER-QTW-DRT AC100-240V E5ER-QTW-DRT AC24V standard 1 1 2 2 C+C 2T DeviceNet E5ER-CTB-DRT AC100-240V E5ER-CTB-DRT AC24V standard max 2 2 – 2 C+C 2T DeviceNet E5ER-CTW-DRT AC100-240V E5ER-CTW-DRT AC24V
valve 1 1 + pot – 2 R+R 2T DeviceNet E5ER-PRTF-DRT AC100-240V E5ER-PRTF-DRT AC24V SV programmer 1 1 2 2 QC+Q 4R – E5ER-TQ4B AC100-240 E5ER-TQ4B AC/DC24
SV programmer 1 1 2 2 C+C 4R – E5ER-TC4B AC100-240 E5ER-TC4B AC/DC24
SV programmer 1 1 2 2 QC+Q 4R RS-485 E5ER-TQC43B-FLK AC100-240 E5ER-TQC43B-FLK AC/DC24
SV programmer max 2 2 4 2 QC+Q 2T RS-485 E5ER-TQT3DW-FLK AC100-240 E5ER-TQT3DW-FLK AC/DC24
SV programmer max 2 2 4 2 C+C 2T RS-485 E5ER-TCT3DW-FLK AC100-240 E5ER-TCT3DW-FLK AC/DC24
SV programmer + valve 1 1 + pot 4 2 R+R 2T – E5ER-TPRTDF AC100-240 E5ER-TPRTDF AC/DC24
SV programmer + valve 1 1 + pot – 3 R+R+QC 4R RS-485 E5ER-TPRQ43F-FLK AC100-240 E5ER-TPRQ43F-FLK AC/DC24
Note • Standard = heat and/or cool PID control, valve = valve positioning (relay up/down) (PRR)
• max 2 = 2 loops heat and/or cool or 1 loop cascade, ratio or remote SP
• max 4 = 4 loops heat and/or cool
• 1, 2 or 4 = number of analog universal input 1 + pot = 1 universal and 1 slide wire feedback from valve
• QC = voltage (pulse) or current (switch), Q = voltage (pulse), C = current, 4R = 4 two pole relay, 2T = two transistor output NPN
Accessories
Terminal covers Order code
Terminal cover for E5AR E53-COV14
Terminal cover for E5ER E53-COV15
E5_R/E5_R-T optional tools
Option Order code
PC based configuration and tuning software CX-Thermo EST2-2C-MV4
Specifications
Item
Thermocouple input type K, J, T, E, L, U, N, R, S, B, W
RTD input type Pt100
Linear input type mA, V
Control mode 2-PID or ON/OFF control
Accuracy ±0.1% FS
Auto-tuning yes
RS-485 optional Event input optional Ambient temperature –10 to 55°C IP rating front panel IP66
Sampling period 50 ms
Size in mm (H×W×D) E5ER: 96×48×110
E5AR: 96×96×110
