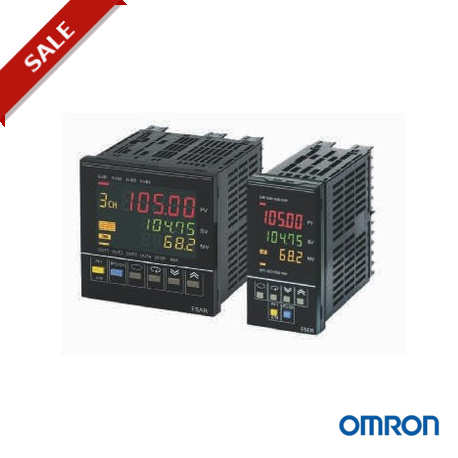

E5AR-CC43DWW-FLK 100-240 VAC
129535
OMRON
1
Disponibile Invio oggi
4 Legami di 4 Eventi 4 Sale corr. 4 Allarme. SPDT RS485
Temperatura e processo > E5AR
* Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de OMRON
Grazie per il suo interesse nei nostri prodotti, speriamo che il tempo di consegna indicato sia conveniente per lei.
Durante l’elaborazione dell’ordine potrà selezionare il tipo di invio che meglio si adatti alle sue necessità: Aéreo Express 24Hrs, Terrestre Standard 48/72Hrs, etc.

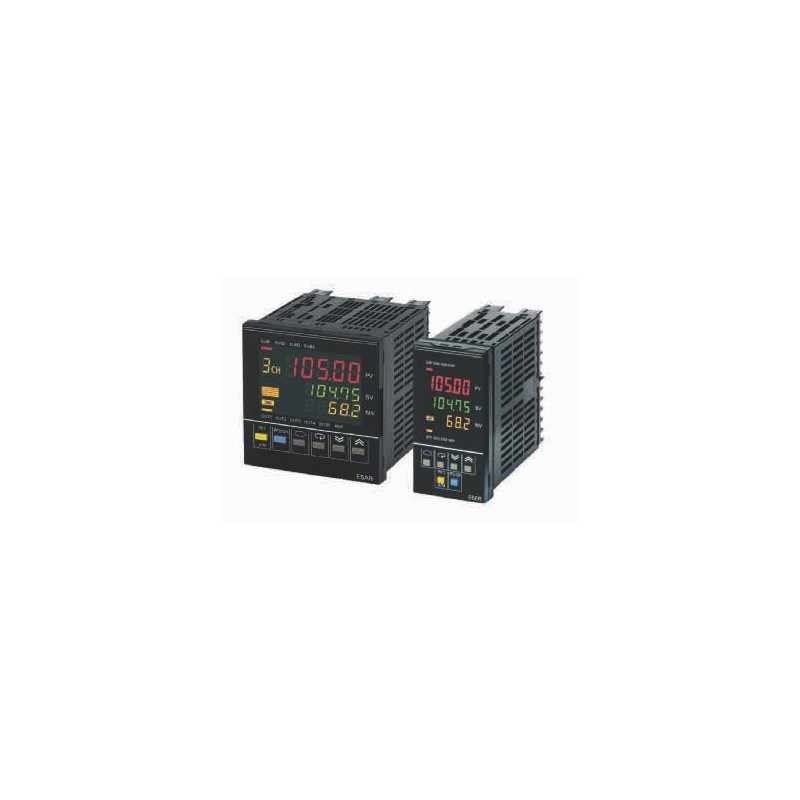

E5_R/E5_R-T Advanced and Multi-Loop controllers
Fast, accurate and equipped for application specific needs
The E5_R series provides you with high accuracy inputs (0.01°C for Pt100) and
a 50 ms sample and control cycle for all four loops. Its unique Disturbance Overshoot
Reduction Adjustment ensures solid, robust control.
• Easy and clear read-out thanks to bright Liquid Crystal Display
• Exceptional versatility – multi-loop control, cascade control, and valve control
• Easy integration with DeviceNet, PROFIBUS or Modbus
• SV programmer optional, 32 programs with up to 256 segments
Ordering information
Function Loops Input
Event
Number of Outputs AUX
Communication Order code (96 × 96 mm)
analog
Inputs
outputs
outputs
100 to 240 VAC 24 VAC/DC
standard 1 1 2 2 QC,Q 4R – E5AR-Q4B AC100-240 E5AR-Q4B AC/DC24 standard 1 1 2 2 QC,Q 4R RS-485 E5AR-Q43B-FLK AC100-240V
standard 1 1 6 2 QC,Q 4R RS-485 E5AR-Q43DB-FLK AC100-240V
standard 1 1 6 4 QC,Q,C,C 4R RS-485 E5AR-QC43DB-FLK AC100-240 E5AR-QC43DB-FLK AC/DC24 standard max 2 2 4 2 QC,Q 4R RS-485 E5AR-Q43DW-FLK AC100-240V
standard max 2 2 4 4 QC,Q,QC,Q 4R RS-485 E5AR-QQ43DW-FLK AC100-240 E5AR-QQ43DW-FLK AC/24 standard max 4 4 4 4 QC,Q,QC,Q 4R RS-485 E5AR-QQ43DWW-FLK AC100-240V
standard 1 1 2 2 C,C 4R – E5AR-C4B AC100-240 E5AR-C4B AC/DC24 standard 1 1 2 2 C,C 4R RS-485 E5AR-C43B-FLK AC100-240V
standard 1 1 6 2 C,C 4R RS-485 E5AR-C43DB-FLK AC100-240V
standard max 2 2 4 2 C,C 4R RS-485 E5AR-C43DW-FLK AC100-240V
standard max 4 4 4 4 C,C,C,C 4R RS-485 E5AR-CC43DWW-FLK AC100-240 E5AR-CC43DWW-FLK AC/DC24 valve 1 1 + pot 4 2 R,R 4R – E5AR-PR4DF AC100-240 E5AR-PR4DF AC/DC24
valve 1 1 + pot 4 4 R,R,QC,Q 4R RS-485 E5AR-PRQ43DF-FLK AC100-240 E5AR-PRQ43DF-FLK AC/DC24 standard 1 1 2 2 QC,Q 4R DeviceNet E5AR-Q4B-DRT AC100-240V E5AR-Q4B-DRT AC24V standard 1 1 2 4 QC,Q,C,C 4R DeviceNet E5AR-QC4B-DRT AC100-240V E5AR-QC4B-DRT AC24V standard max 2 2 – 4 QC,Q,QC,Q 4R DeviceNet E5AR-QQ4W-DRT AC100-240V E5AR-QQ4W-DRT AC24V standard 1 1 2 2 C,C 4R DeviceNet E5AR-C4B-DRT AC100-240V E5AR-C4B-DRT AC24V standard max 4 4 – 4 C,C,C,C 4R DeviceNet E5AR-CC4WW-DRT AC100-240V
valve 1 1 + pot – 2 R,R 4R DeviceNet E5AR-PR4F-DRT AC100-240V E5AR-PR4F-DRT AC24V valve 1 1 + pot – 4 R,R,QC,Q 4R DeviceNet E5AR-PRQ4F-DRT AC100-240V E5AR-PRQ4F-DRT AC24V SV programmer 1 1 2 2 QC,Q 4R – E5AR-TQ4B AC100-240 E5AR-TQ4B AC/DC24
SV programmer 1 1 2 2 C,C 4R – E5AR-TC4B AC100-240 E5AR-TC4B AC/DC24
SV programmer 1 1 2 2 QC,Q 4R RS-485 E5AR-TQ43B-FLK AC100-240
SV programmer 1 1 2 2 C,C 4R RS-485 E5AR-TC43B-FLK AC100-240
SV programmer 1 1 10 2 QC,Q 10T RS-485 E5AR-TQE3MB-FLK AC100-240
SV programmer 1 1 10 2 C,C 10T RS-485 E5AR-TCE3MB-FLK AC100-240
SV programmer 1 1 10 4 QC,Q,C,C 10T RS-485 E5AR-TQCE3MB-FLK AC100-240V E5AR-TQCE3MB-FLK AC/DC24
SV programmer max 2 2 4 2 QC,Q 4R RS-485 E5AR-TQ43DW-FLK AC100-240
SV programmer max 2 2 4 2 C,C 4R RS-485 E5AR-TC43DW-FLK AC100-240
SV programmer max 2 2 8 4 QC,Q,QC,Q 10T RS-485 E5AR-TQQE3MW-FLK AC100-240 E5AR-TQQE3MW-FLK AC/DC24
SV programmer max 4 4 8 2 C,C,C,C 10T RS-485 E5AR-TCCE3MWW-FLK AC100-240 E5AR-TCCE3MWW-FLK AC/DC24
SV programmer max 4 4 8 4 QC,Q,QC,Q 10T RS-485 E5AR-TQQE3MWW-FLK AC100-240
SV programmer + valve 1 1 + pot 4 2 R,R 4R – E5AR-TPR4DF AC100-240 E5AR-TPR4DF AC/DC24
SV programmer + valve 1 1 + pot 8 4 R,R,QC,Q 10T RS-485 E5AR-TPRQE3MF-FLK AC100-240 E5AR-TPRQE3MF-FLK AC/DC24
Note • Standard = heat and/or cool PID control, valve = valve positioning (relay up/down) (PRR)
• max 2 = 2 loops heat and/or cool or 1 loop cascade, ratio or remote SP
• max 4 = 4 loops heat and/or cool
• 1, 2 or 4 = number of analog universal input 1 + pot = 1 universal and 1 slide wire feedback from valve
• QC = voltage (pulse) or current (switch), Q = voltage (pulse), C = current, 4R = 4 two pole relay, 2T = two transistor output NPN
531
E5_R/E5_R-T Advanced and Multi-Loop controllers
Function Loops Input
Event
Number of Outputs AUX
Communication Order code (48 × 96 mm)
analog
Inputs
outputs
outputs
100 to 240 VAC 24 VAC/DC
standard 1 1 2 2 QC+Q 4R – E5ER-Q4B AC100-240 E5ER-Q4B AC/DC24 standard 1 1 2 2 QC+Q 4R RS-485 E5ER-Q43B-FLK AC100-240V
standard 1 1 2 4 QC+Q+C+C 4R RS-485 E5ER-QC43B-FLK AC100-240 E5ER-QC43B-FLK AC/DC24 standard 1 1 6 2 QC+Q 2T RS-485 E5ER-QT3DB-FLK AC100-240V
standard max 2 2 4 2 QC+Q 2T RS-485 E5ER-QT3DW-FLK AC100-240 E5ER-QT3DW-FLK AC/DC24 standard 1 1 2 2 C+C 4R – E5ER-C4B AC100-240 E5ER-C4B AC/DC24 standard 1 1 2 2 C+C 4R RS-485 E5ER-C43B-FLK AC100-240V
standard 1 1 6 2 C+C 2T RS-485 E5ER-CT3DB-FLK AC100-240V
standard max 2 2 4 2 C+C 2T RS-485 E5ER-CT3DW-FLK AC100-240 E5ER-CT3DW-FLK AC/DC24 valve 1 1 + pot 4 2 R+R 2T – E5ER-PRTDF AC100-240 E5ER-PRTDF AC/DC24
valve 1 1 + pot – 4 R+R+QC+Q 4R RS-485 E5ER-PRQ43F-FLK AC100-240 E5ER-PRQ43F-FLK AC/DC24 standard 1 1 2 2 QC+Q 2T DeviceNet E5ER-QTB-DRT AC100-240V E5ER-QTB-DRT AC24V standard max 2 2 – 2 QC+Q 2T DeviceNet E5ER-QTW-DRT AC100-240V E5ER-QTW-DRT AC24V standard 1 1 2 2 C+C 2T DeviceNet E5ER-CTB-DRT AC100-240V E5ER-CTB-DRT AC24V standard max 2 2 – 2 C+C 2T DeviceNet E5ER-CTW-DRT AC100-240V E5ER-CTW-DRT AC24V
valve 1 1 + pot – 2 R+R 2T DeviceNet E5ER-PRTF-DRT AC100-240V E5ER-PRTF-DRT AC24V SV programmer 1 1 2 2 QC+Q 4R – E5ER-TQ4B AC100-240 E5ER-TQ4B AC/DC24
SV programmer 1 1 2 2 C+C 4R – E5ER-TC4B AC100-240 E5ER-TC4B AC/DC24
SV programmer 1 1 2 2 QC+Q 4R RS-485 E5ER-TQC43B-FLK AC100-240 E5ER-TQC43B-FLK AC/DC24
SV programmer max 2 2 4 2 QC+Q 2T RS-485 E5ER-TQT3DW-FLK AC100-240 E5ER-TQT3DW-FLK AC/DC24
SV programmer max 2 2 4 2 C+C 2T RS-485 E5ER-TCT3DW-FLK AC100-240 E5ER-TCT3DW-FLK AC/DC24
SV programmer + valve 1 1 + pot 4 2 R+R 2T – E5ER-TPRTDF AC100-240 E5ER-TPRTDF AC/DC24
SV programmer + valve 1 1 + pot – 3 R+R+QC 4R RS-485 E5ER-TPRQ43F-FLK AC100-240 E5ER-TPRQ43F-FLK AC/DC24
Note • Standard = heat and/or cool PID control, valve = valve positioning (relay up/down) (PRR)
• max 2 = 2 loops heat and/or cool or 1 loop cascade, ratio or remote SP
• max 4 = 4 loops heat and/or cool
• 1, 2 or 4 = number of analog universal input 1 + pot = 1 universal and 1 slide wire feedback from valve
• QC = voltage (pulse) or current (switch), Q = voltage (pulse), C = current, 4R = 4 two pole relay, 2T = two transistor output NPN
Accessories
Terminal covers Order code
Terminal cover for E5AR E53-COV14
Terminal cover for E5ER E53-COV15
E5_R/E5_R-T optional tools
Option Order code
PC based configuration and tuning software CX-Thermo EST2-2C-MV4
Specifications
Item
Thermocouple input type K, J, T, E, L, U, N, R, S, B, W
RTD input type Pt100
Linear input type mA, V
Control mode 2-PID or ON/OFF control
Accuracy ±0.1% FS
Auto-tuning yes
RS-485 optional Event input optional Ambient temperature –10 to 55°C IP rating front panel IP66
Sampling period 50 ms
Size in mm (H×W×D) E5ER: 96×48×110
E5AR: 96×96×110
532
