Unit type | Specifications | Size in mm (H×W×D) | Remarks | Order code |
|---|
4-point PNP input unit | 24 V, 6 mA | 123×60×44 | Separate I/O power supply connection | DRT2-ID04CL-1 |
8-point PNP input unit | 24 V, 6 mA | 175×60×44 | Separate I/O power supply connection | DRT2-ID08CL-1 |
8-point PNP input unit | 24 V, 11 mA, with power short-circuit and sensor disconnection detection | 175×60×38 | Unit power supply via DeviceNet cable | DRT2-ID08C-1 |
16-point PNP input unit | 24 V, 6 mA, 2 inputs per M12 connector | 175×60×44 | Separate I/O power supply connection | DRT2-HD16CL-1 |
16-point PNP input unit | 24 V, 11 mA, 2 inputs per M12 connector,
with power short-circuit and sensor disconnection detection | 175×60×38 | Unit power supply via DeviceNet cable | DRT2-HD16C-1 |
4-point PNP output unit | 24 V, 0.5 A per point | 123×60×44 | Separate I/O power supply connection | DRT2-OD04CL-1 |
8-point PNP output unit | 24 V, 0.5 A per point | 175×60×44 | Separate I/O power supply connection | DRT2-OD08CL-1 |
8-point PNP output unit | 24 V, 1.5 A per point (8 A total), with short-circuit protection + indication | 175×60×44 | Separate I/O power supply connection | DRT2-OD08C-1 |
16-point PNP output unit | 24 V, 0.5 A per point, 2 points per M12 connector | 175×60×44 | Separate I/O power supply connection | DRT2-WD16CL-1 |
8-point input + 8-point PNP output unit | 24 V, 6 mA input, 0.5 A output per point, 2 points per M12 connector | 175×60×44 | Separate I/O power supply connection | DRT2-MD16CL-1 |
Unit type | Specifications | Order code |
|---|
DeviceNet thin cable | with one M12 socket connector (female), 1 m | DCA1-5CN01F1 |
DeviceNet thin cable | with one M12 socket connector (female), 2 m | DCA1-5CN02F1 |
DeviceNet thin cable | with one M12 socket connector (female), 5 m | DCA1-5CN05F1 |
DeviceNet thin cable | with one M12 socket connector (female) and one M12 plug connector (male), 1 m | DCA1-5CN01W1 |
DeviceNet thin cable | with one M12 socket connector (female) and one M12 plug connector (male), 2 m | DCA1-5CN02W1 |
DeviceNet thin cable | with one M12 socket connector (female) and one M12 plug connector (male), 5 m | DCA1-5CN05W1 |
DeviceNet T-connector for thin cable | with two M12 socket connectors (female) + one M12 plug connector (male) | DCN2-1 |

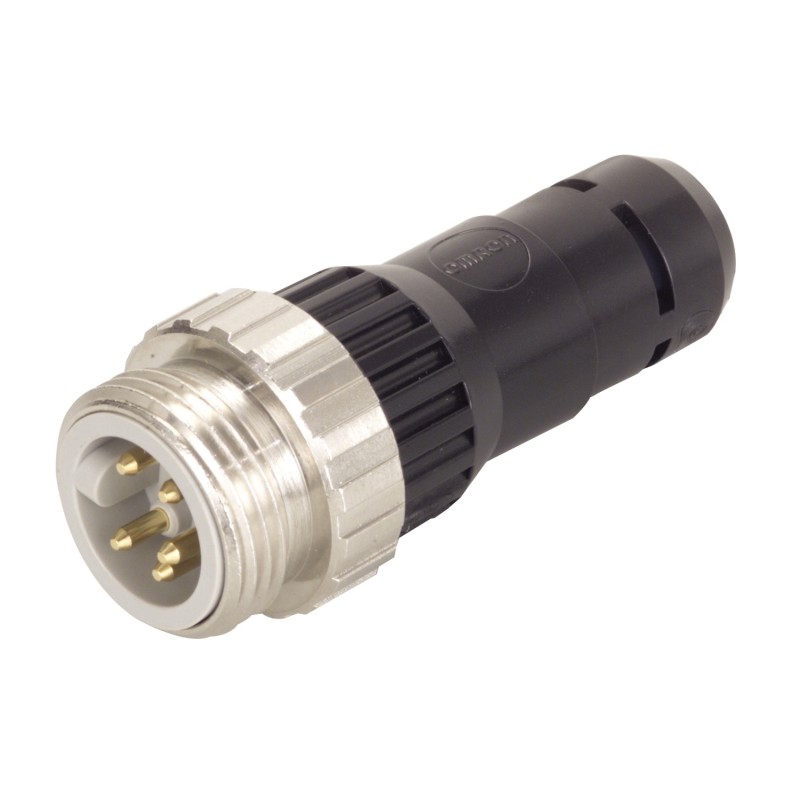

DeviceNet terminator | with M12 plug connector | DRS2-1 |
Power supply cable | with one 7/8 inches socket connector (female), 2 m | XS4F-D421-102-A |
Power supply cable | with one 7/8 inches socket connector (female), 5 m | XS4F-D421-105-A |
Power supply cable | with one 7/8 inches socket connector (female) and one 7/8 inches plug connector (male), 2 m | XS4W-D421-102-A |
Power supply cable | with one 7/8 inches socket connector (female) and one 7/8 inches plug connector (male), 5 m | XS4W-D421-105-A |
Power supply T-connector | with two 7/8 inches socket connectors (female) + one 7/8 inches plug connector (male) | XS4R-D424-5 |
4-wire I/O connection cable | with one M12 plug connector (male), 1 m | XS2H-D421-C80-A |
4-wire I/O connection cable | with one M12 plug connector (male), 2 m | XS2H-D421-D80-A |
4-wire I/O connection cable | with one M12 plug connector (male), 5 m | XS2H-D421-G80-A |
4-wire I/O connection cable | with one M12 socket connector (female) and one M12 plug connector (male), 1 m | XS2W-D421-C81-A |
4-wire I/O connection cable | with one M12 socket connector (female) and one M12 plug connector (male), 2 m | XS2W-D421-D81-A |
4-wire I/O connection cable | with one M12 socket connector (female) and one M12 plug connector (male), 5 m | XS2W-D421-G81-A |
Y-connector for 16-point I/O units | Splits the 2 I/O points per M12 connector to two M12 connectors | XS2R-D426-1 |
Y-connector cable for 16-point I/O units | Splits the 2 I/O points per M12 connector to two M12 connectors, 1 m | XS2R-D426-C11-F |
M12 connector | M12 plug connector (male), solder type | XS2G-D421 |
M12 connector | M12 socket connector (female), solder type | XS2C-D421 |
IP67 cap for M12 sockets | Metal cap for unused I/O connections | XS2Z-12 |
