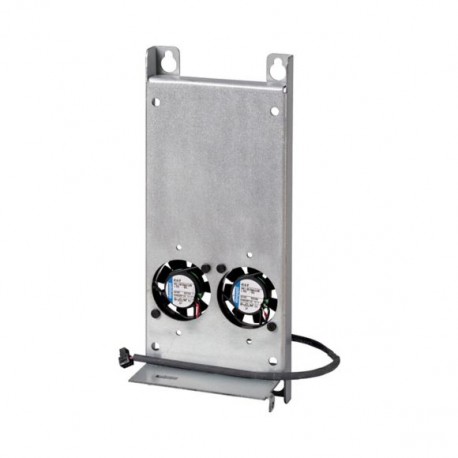

DS7-FAN-100 169021 EATON ELECTRIC Ventilatore, per softstarter DS7, BG 3
DS7-FAN-100
169021
EATON-MOELLER
Ventilatore, per softstarter DS7, BG 3
Ventola DS7 con avvio graduale taglia 2
Eaton DS7 Fan, for DS7 soft starter, BG3
apparecchi elettrici a bassa tensione > Accessori per controllo elettronico del motore e dispositivo di protezione
Soft Starter standard
* Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Comprati di solito insieme
▲Dettagli
▲General specifications
Product Name
Eaton DS7 Accessory Device fan
Catalog Number
169021
EAN
4015081655144
Product Length/Depth
50 mm
Product Height
210 mm
Product Width
90 mm
Product Weight
0.248 kg
Certifications
UL/CSA certification not required
Model Code
DS7-FAN-100
Modelli & caratteristiche
Fitted with:
Device fan for increasing the load cycle
Bottom fans
Bottom fans
Informazioni generali
Accessory/spare part type
Other
Condizioni ambientali e climatiche
Ambient operating temperature - max
40 °C
Ambient operating temperature - min
-5 °C
Verifica di progetto
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Datasheet - PDF
▲| Titolo: | Dimensione: | Tipo: |
|---|---|---|
| PDF EATON EMS EN.pdf | 1 Mbytes |
|
| PDF EATON STARTING CONTROLLING MOTORS EN.pdf | 32 Mbytes |
|
| DS7-FAN-100 DS7-FAN-100 169021 ES_134956.pdf | 2 Mbytes |
|
