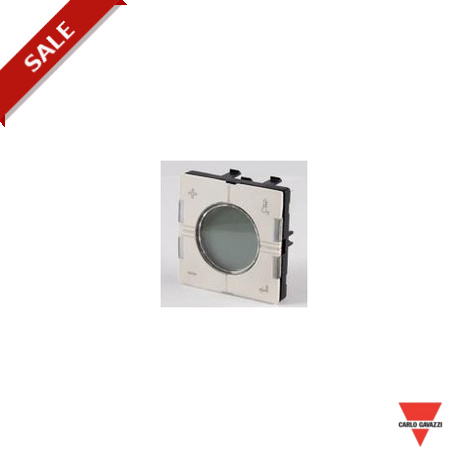

Aurora Temperature Controller
B4X-TEMDIS
smart-house temperature controller with display Developed to fit into wall socket from Fuga, NICO an Bticino
Shows current room temperature
Shows outdoor temperature Turns on/off heating and cooling Set wanted room temperature
Energy Save through night setback temperature Channel Programming using BGP-COD-BAT The use of floor sensor is optional
Delivered with pre-programmed address on I/O 2
Delivered with both white and charcoal grey pushbutton covers Non-activated inputs and backlight indicated by orange light Orange LED can be de-activated by an internal dip switch Activated inputs indicated by blue light
GENERAL SPECIFICATIONS
Channel programming By BGP-COD-BAT and special cable: GAP-TPH-CAB. After mounting, reprogramming can be done by removing the slim pushbutton cover and pull the switch element with a a pair of pointed pliers (see drawing next page), and connect the cable
to the connector on the back of the switch element.
No. of channels 2 needed + 3 Optional
Channel assignment I/O 1: Not programmed I/O 2: Pre-programmed to address B2
I/O 3: Not programmed
I/O 4: Not programmed
I/O 5: Not programmed Enclosure Aurora 44 x 44 mechanics Environment
Degree of protection IP 20
Pollution degree 3 (IEC 60664)
Operating temperature 0° to +50°C (32° to +122°F)
Storage temperature -20° to +70°C (-4° to +158°F)
Humidity (Non condensing) 20 - 80% Weight 50 g Dimensions
Aurora (WxHxD) 44 x 44 x 26 mm
Max. wire in terminals Max. 2 x 0.75 mm2
SUPPLY SPECIFICATIONS
Power supply Supplied by smart-house
Consumption (typical)
Activated (guidelight OFF) 1.5 mA Activated (guidelight ON) 2 mA Not activated (guidelight OFF) 0.6 mA Not activated (guidelight ON) 1.1 mA
TYPE SELECTION
Supply Ordering no.
By smart-house bus B4X-TEMDIS
Delivered with both white and charcoal grey pushbutton covers. Frame not included.
Floor sensor BSO-TEMDIG is not included.
INPUT SPECIFICATIONS Sensor 1 integrated temperature sensor Range 0 - 50°C (32 - 122°F)
Precision ± 1°C
Floor sensor (not included) Temperature range 0 - 50°C (32 - 122°F) Cable length 4 m
Cable consists of 4 wires:
Brown Connect to “+” on Temperature controller
White Connect to “c” on Temperature controller
Yellow Connect to “d” on Temperature controller
Green Connect to “T” on Temperature controller
See wiring diagram
The floor sensor is an active 4-wire sensor and will only work together with the temperature controller unit.
Specifications are subject to change without notice (25.09.2009) - A product of the CARLO GAVAZZI Group
