MSFH06
ELDON
7
Disponible Envío el hoy

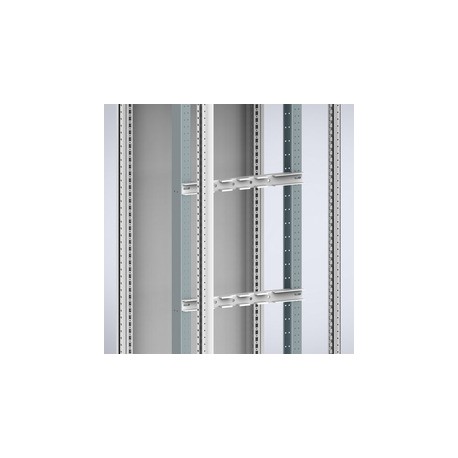

Soporte barras vert. post. 600, hasta 1600A, 7 piezas
Soporte barras vert. post. 600, hasta 1600A, 7 piezas. 7 unidades
This fix system vertical busbar support, MSFH, for two bars up to 40 x 10 mm, is available off the shelf and has been tested according to IEC 61439.
Sistemas de distribución de energía / conmutadores > Accesorios para barras colectoras
Potencia y distribución
* Producto nuevo en su embalaje original con todas las garantías y certificaciones de ELDON
Gracias por su interés en nuestros productos, esperamos que el plazo indicado sea conveniente para usted.
Durante la tramitación del pedido podrá seleccionar el tipo de envío que mejor se adapte a sus necesidades: Aéreo Express 24Hrs, Terrestre Standard 48/72Hrs, etc.
Descripción: | Busbar supports up to 1600A to be mounted vertically behind the fixed compartments. Mounts to the vertical profiles MSFP. Rated short-time withstand current up to 35 kA with rear supports and up to 50 kA with rear and front supports. |
Material: | Polycarbonate reinforced with 10% of glass material. |
Suministro: | 7 busbar supports for 3 phases and neutral, and mounting material. |

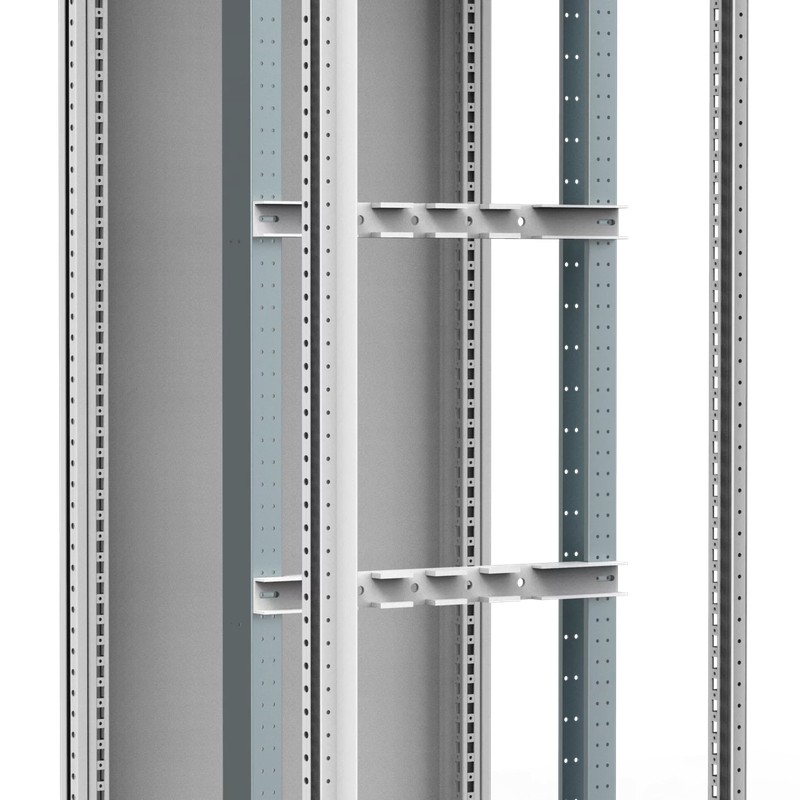

Feature: | Vertical distribution busbar support for 2 bars up to 40 x 10 mm, which should be mounted onto the rear of fix system vertical profiles, behind compartments. |
Advantage: | The standard supports are available off the shelf and have been tested according to IEC 61439. The supports are suitable for the most common bars on the market. |
Benefit: | A flexible and reliable solution that ensures procurement, design and installation can be done efficiently reducing the labour time required. |
Comment: | Fix system vertical profiles (MSFP) are required in order to mount the busbar supports. |
Título: | Tamaño: | Tipo: |
---|---|---|
MSFH06 MSFH06 ES_MSFH06.pdf | 181 Kbytes | |
Descargar catálogo general |
