MPP0610
ELDON
1
Disponible Envío el hoy

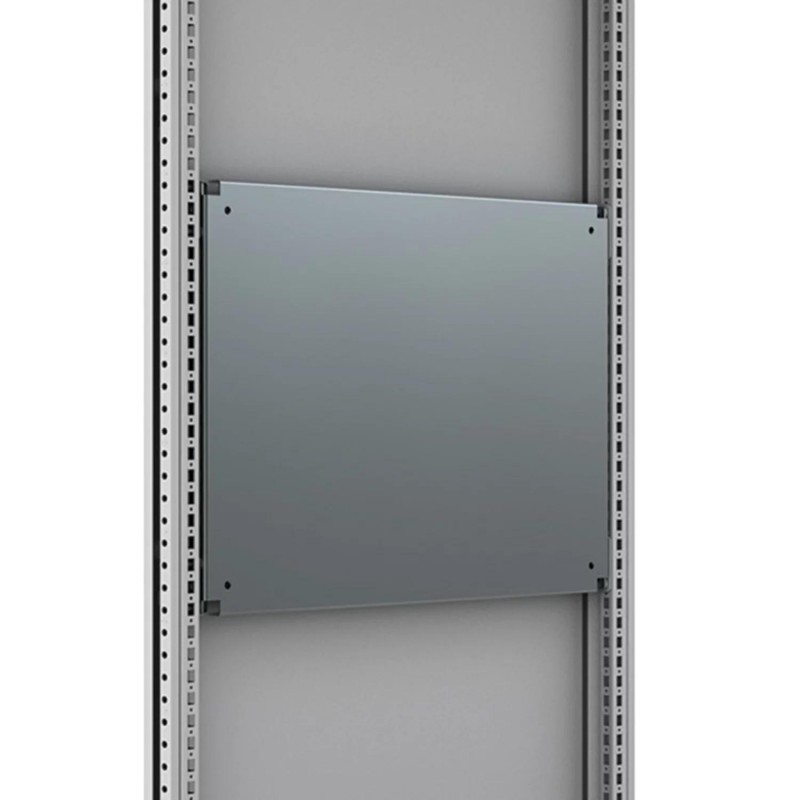

Placa de montaje, 600x1000 MPP0610
Placa de montaje, 600x1000, acero galvanizado, parcial
This small mounting plate only occupies part of the enclosure and is ideal when more mounting space is needed for other components that do not require a mounting plate. It can be fully equipped before it is fitted in place by a single person.
Sistemas de distribución de energía / conmutadores > Placa de montaje para caja de distribuidor
Armarios Autoportantes de acero
* Producto nuevo en su embalaje original con todas las garantías y certificaciones de ELDON
Gracias por su interés en nuestros productos, esperamos que el plazo indicado sea conveniente para usted.
Durante la tramitación del pedido podrá seleccionar el tipo de envío que mejor se adapte a sus necesidades: Aéreo Express 24Hrs, Terrestre Standard 48/72Hrs, etc.
Descripción: | Mounted directly on the enclosure's frame or onto the click-in profiles (CLPK). Special design of the bracket allows one man mounting. Can be mounted in any height or depth position within the 25 mm hole pattern. Appropriate sizes can also be used on the sides of the enclosure. |
Material: | 3 mm galvanized steel. |
Cantidad por embalaje: : | 1 plate with mounting accessories. |
Instrucciones de montaje: | Add CLPK for depth adjustment. |
Nota: | MPP can be mounted in both directions. |
Feature: | A mounting plate that is smaller than the size of the enclosure. |
Advantage: | The mounting plate can be machined and equipped with components before it is assembled in the enclosure and it does not consume more enclosure space than required for the installation. |
Benefit: | Fast machining and assembly of components and more mounting space is available for other components that do not require a mounting plate. |
Título: | Tamaño: | Tipo: |
---|---|---|
PDF CATÁLOGO NVENT ES.pdf | 45 Mbytes | |
MPP0610 MPP0610 ES_MPP0604.pdf | 127 Kbytes | |
Descargar catálogo general |
