MSCC0606
ELDON
1
Disponible Envío el hoy

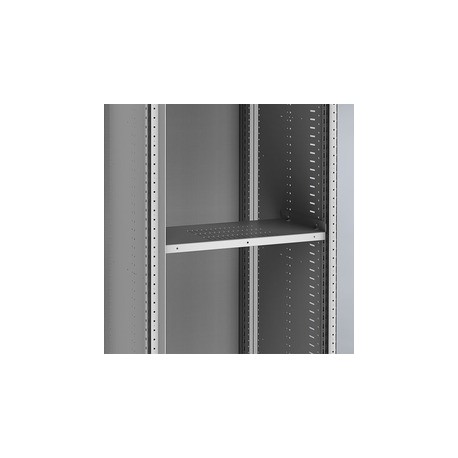

Bandeja para ACB, 600x600 MSCC0606
Bandeja para ACB, 600x600, para interruptor de corte al aire

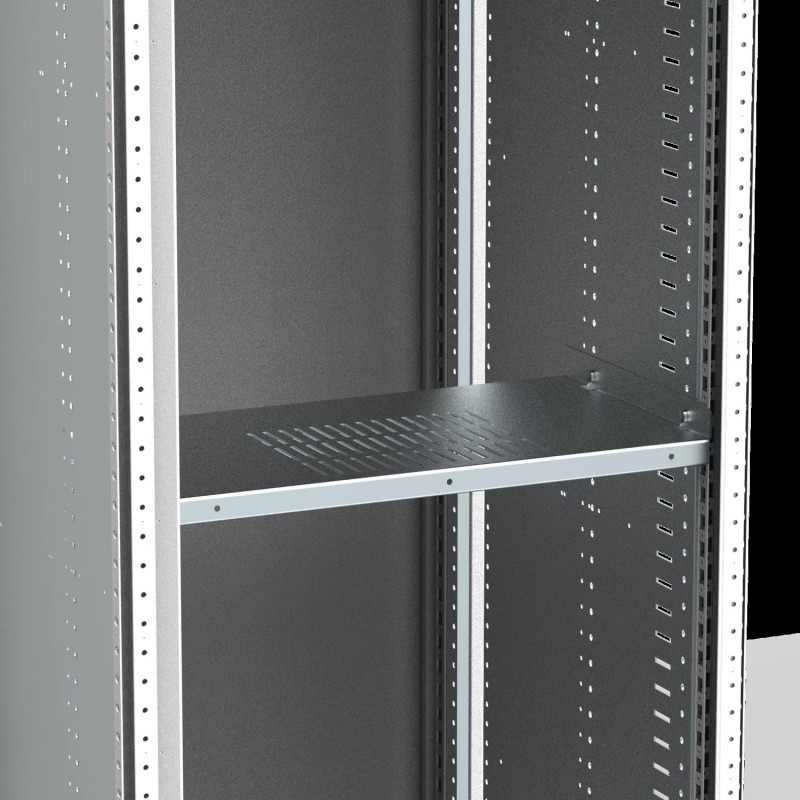

The galvanised steel shelf, MSCC, covers a partial depth of an enclosure and is ideal for equipment requiring strong fixation, such as heavy air circuit brakers. It leaves the rear of the enclosure accessible for easy installation and wiring.
Sistemas de armarios eléctricos > Componente para ampliación (armario de control)
Potencia y distribución
* Producto nuevo en su embalaje original con todas las garantías y certificaciones de ELDON
Gracias por su interés en nuestros productos, esperamos que el plazo indicado sea conveniente para usted.
Durante la tramitación del pedido podrá seleccionar el tipo de envío que mejor se adapte a sus necesidades: Aéreo Express 24Hrs, Terrestre Standard 48/72Hrs, etc.
Descripción: | Shelf to mount air circuit-breakers, fixed or withdrawable version and MCCB's version in cassette. The shelf has ventilation slots to allow air circulation in the section. It can be mounted only if we have internal side panels MSPSxx06 in both sides. Adjustable height position in steps of 25mm. It can not be used with the front covers system, if it is neccessary to increase the internal segregation or limit the access, we recommend to use top and bottom shelf and 3 partial doors to separate the incoming, ACB and outgoing subsections. |
Material: | 2 mm galvanised steel. |
Suministro: | 1 piece with mounting material. |
Feature: | Galvanised steel shelf, only covers the partial depth of the enclosure and can only be fitted between internal side panels (MSPSxx06). |
Advantage: | The shelf provides a horizontal surface, ideal for equipment that requires a rigid and strong fixation method, while ensuring that the rear of the enclosure remains free, for ease of installation and wiring. |
Benefit: | Heavy air circuit breakers can be securely mounted within the enclosure. The free space behind the shelf allows customers to easily install incoming and outgoing cables and/or busbars. |
Comment: | In order to mount the shelf, internal side panels (MSPS), are required. |
Título: | Tamaño: | Tipo: |
---|---|---|
MSCC0606 MSCC0606 ES_MSCC0606.pdf | 164 Kbytes | |
Descargar catálogo general |
