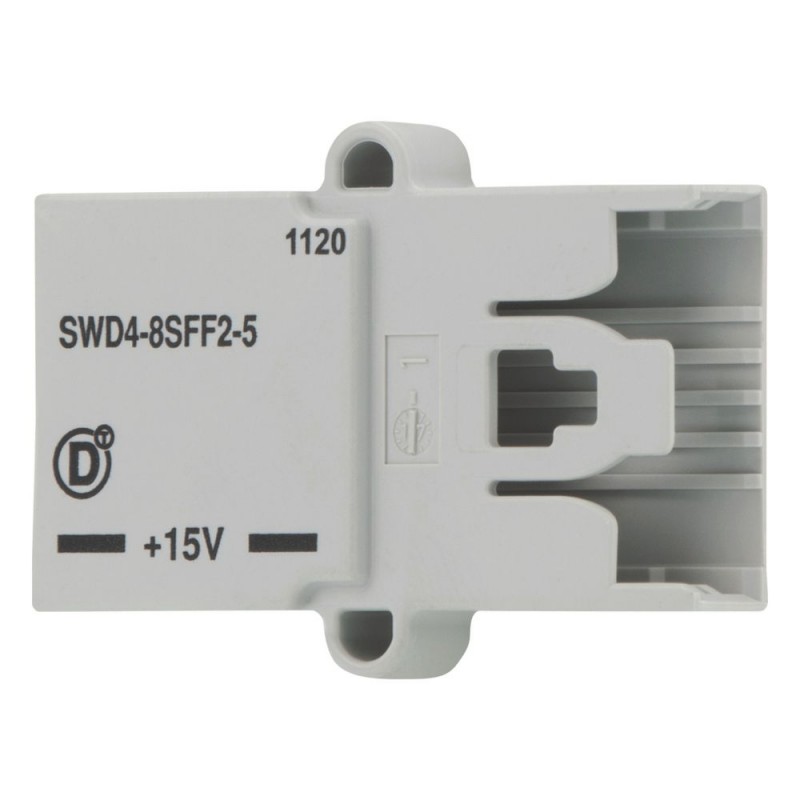

SWD4-8SFF2-5 116024 EATON MOELLER SWD Conector

SWD4-8SFF2-5

116024

EATON - MOELLER

Disponible

Envío el hoy

SWD - Conector

Más detalles


Relés Programables Programadores

SmartWire-DT

SmartWire-DT - EATON - MOELLER

* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON - MOELLER

CantidadPrecio
1+$9.82
21+$8.22
41+$8.02
61+$7.93
81+$7.86
*Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Cómo funciona

¿Cómo funciona ésto?

1 Añada los productos de su elección al carro de la compra
2 Introduzca sus datos de contacto y envíe la solicitud
3 Le enviaremos un email con un presupuesto para esos productos
4 Usted simplemente finalice la compra y recibirá su pedido

Existen varias opciones para realizar el pago
- Tarjeta de crédito
- Transferencia
- PayPal


Productos relacionados

Más Información



Delivery programme
Product range
  SmartWire-DT accessories
Basic function
  Coupling
Function
  To connect SWD ribbon cables over SWD4-8MF2 blade terminals
Description
  Coupling via two 8-pin blade terminals
Connection to SmartWire-DT
  yes
For use with
  EU5C-SWD…
EU5E-SWD…
M22-SWD…
SWD4-8SFF2-5
For use with
  for 8-pin blade terminal
Technical data
General
Standards
  IEC/EN 61131-2
EN 50178
Dimensions (W x H x D)
 mm48.4 x 34.3 x 10.15
Weight
 kg0.0045
Mounting position
  As required
Power loss
PW0
Note on heat dissipation
  not relevant
Ambient conditions, mechanical
Protection type (IEC/EN 60529, EN50178, VBG 4)
  IP20
Vibrations (IEC/EN 61131-2:2008)

Constant amplitude 3,5 mm
 Hz
constant amplitude 0.15 mm max.
 Hz8.4
Constant amplitude 0.15 mm min. (RefExtrakt)
 Hz5
Constant acceleration 1 g
 Hz
constant acceleration 1 g max.
 Hz150
constant acceleration 1 g min.
 Hz8.4
Mechanical shock resistance (IEC/EN 60068-2-27) semi-sinusoidal 15 g/11 ms
 Impacts9
Electromagnetic compatibility (EMC)
Electrostatic discharge (IEC/EN 61131-2:2008)

Air discharge (Level 3)
  kV8
Contact discharge (Level 2)
  kV4
Climatic environmental conditions
Climatic proofing
  Dry heat to IEC 60068-2-2
Damp heat as per EN 60068-2-3
Air pressure (operation)
 hPa795 - 1080
Ambient temperature

Operation
ϑ°C-25 - +55
Storage / Transport
ϑ°C-40 - +70
Relative humidity

Condensation
  Take appropriate measures to prevent condensation
Relative humidity, non-condensing (IEC/EN 60068-2-30)
 %5 - 95
Connection options
Connection 1
  Plug, 8-pole
Number of insertion cycles
  ≥ 200
Connection 2
  Bus, 8-pole
Number of insertion cycles
  ≥ 200
Design verification as per IEC/EN 61439(Show features)(Hide features)
Technical data for design verification

Rated operational current for specified heat dissipation
InA0
Heat dissipation per pole, current-dependent
PvidW0
Equipment heat dissipation, current-dependent
PvidW0
Static heat dissipation, non-current-dependent
PvsW0
Heat dissipation capacity
PdissW0
Operating ambient temperature min.
 °C-25
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Meets the product standard's requirements.
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Meets the product standard's requirements.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0(Show features)(Hide features)
PLC's (EG000024) / Accessories for controls (EC002584)
Electric engineering, automation, process control engineering / Control / Control (accessories) / Control (accessories, unspecified) ([email protected] [AKN560011])
Type of electrical accessory
  Plug
Type of mechanical accessory
  -
Type of documentation
  -
Approvals
UL File No.  E29184
UL Category Control No.  NKCR
CSA File No.  2324643
CSA Class No.  3211-07
North America Certification  UL listed, CSA certified
Specially designed for North America  No
Dimensions
IL04716001Z (AWA1160-2512) SmartWire-DT: Wiring material and accessories

>
>
>
>
>>

Datasheet - PDF
