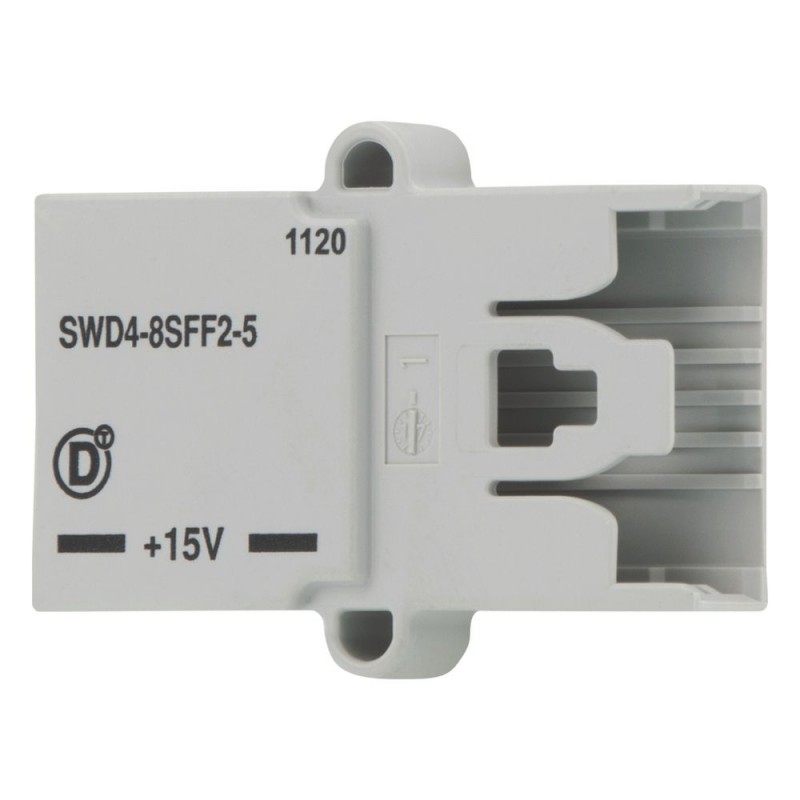

SWD4-8SFF2-5 116024 Y7-116024 EATON ELECTRIC Congiuntore, SmartWire-DT, per collegare cavi piatti mediante c.. Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

SWD4-8SFF2-5 116024 Y7-116024 EATON ELECTRIC Congiuntore, SmartWire-DT, per collegare cavi piatti mediante c..

SWD4-8SFF2-5

116024

Y7-116024

EATON-MOELLER

Congiuntore, SmartWire-DT, per collegare cavi piatti mediante connettori piatti SWD4-8MF2

Adattatore SWDT per il collegamento di 2 cavi a nastro con connettore SWD4-8MF2

Eaton SWD4 Coupling, SmartWire-DT, for connecting ribbon cables via blade terminal SWD4-8MF 2

Giunto SmartWire-DT per il collegamento di conduttori a nastro piatto SWD tramite due cavi a nastro SWD4-8MF2

Maggiori dettagli


sistemi di controllo industriali (PLC) > accessori per controlli

Smartwire Darwin

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Prezzo totale: $31.67
Prezzo unitario: $31.67
Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Comprati di solito insieme

▲

Più venduti

▲

Dettagli

▲


General specifications

Product Name
Eaton SWD4 Accessory Coupling
Catalog Number
116024
EAN
4015081157648
Product Length/Depth
10 mm
Product Height
35 mm
Product Width
49 mm
Product Weight
0.004 kg
Certifications
CSA File No.: 2324643
UL
CSA
UL Category Control No.: NKCR
CSA Class No.: 3211-07
EN 50178
UL File No.: E29184
IEC/EN 61131-2
Catalog Notes
not relevant
Model Code
SWD4-8SFF2-5

Specifiche del prodotto

Air discharge
8 kV, according to IEC 61131-2, level 3, ESD
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Climatic proofing
Dry heat to IEC 60068-2-2
Damp heat, constant, to IEC 60068-2-3
Connection to SmartWire-DT
Yes
Air pressure
795 - 1080 hPa (operation)
Environmental conditions
Condensation: prevent with appropriate measures
Mounting position
As required
Ambient operating temperature - max
55 °C
Ambient operating temperature - min
-25 °C
Ambient storage temperature - max
70 °C
Ambient storage temperature - min
-40 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Contact discharge
4 kV, according to IEC/EN 61131-2, Level 2, ESD
Constant acceleration
1 g, 8.4 - 150 Hz, according to IEC/EN 61131-2, Vibrations
Constant amplitude
3,5 mm, 5 - 8.4 Hz, according to IEC/EN 61131-2, Vibrations
Electrical accessory type
Plug
Connection type
Connection 1: Plug, 8-pole
Connection 2: Bus, 8-pole
Relative humidity
5 - 95 % (non-condensing, IEC/EN 60068-2-30)
Degree of protection
IP20 (according to IEC/EN 60529, EN 50178, VBG 4)
IP20
Mechanical accessory type
Other
Functions
To connect SWD ribbon cables over SWD4-8MF2 blade terminals
Shock resistance
15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 9 Impacts
Number of insertion cycles
200
Operating temperature - max
55 °C
Operating temperature - min
-25 °C
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
Product category
SmartWire-DT accessories

ETIM for 116024 Controllori logici programmabili (PLC) (EC002584)
Caratteristica Valore
tipo di accessori/pezzi di ricambio elettrici (EF005722) spina
tipo di accessori/pezzi di ricambio meccanici (EF005994) altro
accessorio (EF013236) Sì
pezzo di ricambio (EF013237) No

Datasheet - PDF

▲
Titolo: Dimensione: Tipo:
PDF EATON PRODUCT CATALOGUE SMART WIRE EN.pdf 26 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
SWD4-8SFF2-5 Y7-116024 116024 ES_174753.pdf 3 Mbytes SWD4-8SFF2-5 Y7-116024 116024 ES_174753.pdf
