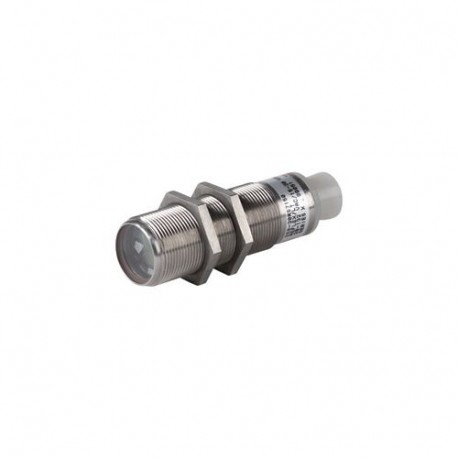

E58-30RS18-HLP 135691 EATON MOELLER Sensor óptico Serie E58 Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

E58-30RS18-HLP 135691 EATON MOELLER Sensor óptico Serie E58

E58-30RS18-HLP

135691

EATON - MOELLER

Disponible

Envío el hoy

Producto bajo demanda, no admite devolución.

Sensor óptico Serie E58

Más detalles


Fotocelulas Sensores Fotoelectricos

Sensores-EATON-MOELLER

Sensores Ópticos Serie E58 - EATON - MOELLER

* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON - MOELLER

CantidadPrecio
1+$245.04
2+$239.58
3+$237.58
*Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Cómo funciona

¿Cómo funciona ésto?

1 Añada los productos de su elección al carro de la compra
2 Introduzca sus datos de contacto y envíe la solicitud
3 Le enviaremos un email con un presupuesto para esos productos
4 Usted simplemente finalice la compra y recibirá su pedido

Existen varias opciones para realizar el pago
- Tarjeta de crédito
- Transferencia
- PayPal


Productos relacionados

Más Información



Delivery programme
Basic function
  Optical sensors
Product range
  E58 Harsh Duty Series
For connection of:
  Plug-in connection M12 x 1
Design (outer dimensions)
  mmM30 x 1.5
Rated operational voltage
Ue 10 - 30 V DC
Rated switching distance
Snmm18000
Description
  for combination with reflector
Connection
  4-wire
Function
  Reflex photoelectric sensor
Type of light
  Visible red
Material
  Stainless steel
Switching type
  NPN
PNP
Switching principle
  Light switching
Technical data
General
Standards
  IEC/EN 60947-5-2
Ambient temperature
  -40 - +55
Mechanical shock resistance
 g100
Shock duration 3 ms
Degree of Protection
  IP69K
Characteristics
Rated switching distance

Rated switching distance
Snmm18000
Range
 mm18
Rated operational voltage
Ue 10 - 30 V DC
Maximum load current
IemA< 100
Response time
 ms1.6
Switching state display
 LEDRed
Protective functions
  Short-circuit protective device
Protection against polarity reversal
Protection against wire breakage
Connection
  4-wire
Style

Design (outer dimensions)
  mmM30 x 1.5
For connection of:
  Plug-in connection M12 x 1
Material
  Stainless steel
Design verification as per IEC/EN 61439(Show features)(Hide features)
Technical data for design verification

Operating ambient temperature min.
 °C-40
Operating ambient temperature max.
 °C55
Technical data ETIM 6.0(Show features)(Hide features)
Sensors (EG000026) / Reflection light barrier (EC002717)
Electric engineering, automation, process control engineering / Binary sensor technology, safety-related sensor technology / Optoelectronic sensor / Reflection light barrier ([email protected] [AKP251010])
Pre failure notice
  No
With time function
  No
Rated switching distance
 mm18000
Max. switching distance
 mm0
Max. output current
 mA100
Reflector included
  No
Analogue output 0 V ... 10 V
  No
Analogue output 0 mA ... 20 mA
  No
Analogue output 4 mA ... 20 mA
  No
Analogue output -10 V ... +10 V
  No
With other analog output
  No
Setting procedure
  -
With communication interface analog
  No
With communication interface AS-Interface
  No
With communication interface CANOpen
  No
With communication interface DeviceNet
  No
With communication interface Ethernet
  No
With communication interface INTERBUS
  No
With communication interface PROFIBUS
  No
With communication interface RS-232
  No
With communication interface RS-422
  No
With communication interface RS-485
  No
With communication interface SSD
  No
With communication interface SSI
  No
Number of semiconductor outputs with signalling function
  2
Number of contact energized outputs with signalling function
  0
Number of protected semiconductor outputs
  0
Number of protected contact energized outputs
  0
Type of interface for safety communication
  -
Type of electric connection
  Connector M12
Type of switching output
  PNP/NPN
Type of switch function
  -
Operation agent-safety class
  -
Explosion safety category for gas
  None
Explosion safety category for dust
  None
Construction type housing
  Cuboid
Width sensor
 mm0
Diameter sensor
 mm30
Height of sensor
 mm0
Length of sensor
 mm111
Switch function
  Light switching
Material of optical surface
  Glass
Material housing
  Metal
Max. output current at protected output
 mA0
Min. reflector distance
 mm0
Ambient temperature
 °C-40 - 55
Time of reaction
 ms0
Transmission range of the safety field
 m0
Switching frequency
 Hz312
Type of safety acc. IEC 61496-1
  -
Switching voltage of OSSD at state high
 V30
Rated control supply voltage Us at AC 50HZ
 V0 - 0
Rated control supply voltage Us at AC 60HZ
 V0 - 0
Rated control supply voltage Us at DC
 V10 - 30
Voltage type
  DC
With monitoring function downstream switching devices
  No
Laser protection class
  None
Wavelength of the sensor
 nm0
Type of light
  -
Light dot
 mm²0
With restart blockage
  No
Suitable for safety functions
  No
Degree of protection (IP)
  IP67
Approvals
Product Standards  UL 508; CSA-C22.2 No. 14; IEC60947-5-2; CE marking
UL File No.  E166051
UL Category Control No.  NRKH, NRKH7
CSA File No.  UL report applies to both Canada and US
CSA Class No.
North America Certification  UL listed, certified by UL for use in Canada
Max. Voltage Rating  30 V DC
Degree of Protection  IEC: IP68, IP69K; UL/CSA Type: 1, 2, 3, 3R, 3S, 4, 4x, 6, 6P, 12, 12K, 13
Dimensions
IL05305003Z E58 Series Harsh Environment Optical Sensors

>>

Datasheet - PDF
