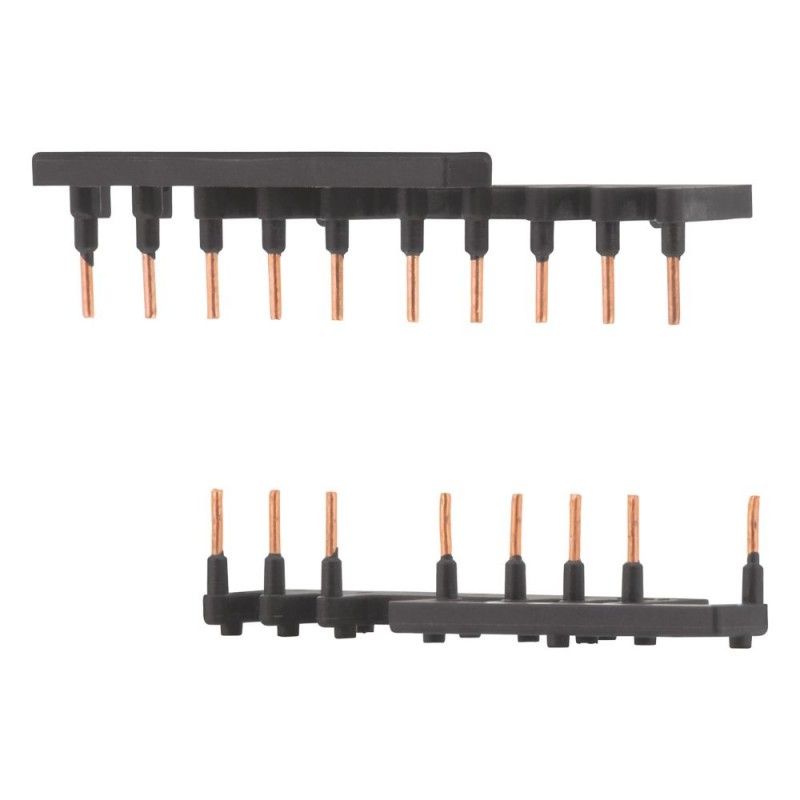

MVS-WB-EM 220209 XTMCXRL EATON ELECTRIC Juego de Cableado Inversor Para DILEM Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

MVS-WB-EM 220209 XTMCXRL EATON ELECTRIC Juego de Cableado Inversor Para DILEM

MVS-WB-EM

220209

XTMCXRL

EATON-MOELLER

Juego de Cableado Inversor; Para DILEM

Eaton Moeller® series MVS Reversing wiring kit, for DILEM

Más detalles


Interruptores de baja tensión > Accesorios para la tecnología de conmutación de baja tensión

Interruptor protector motor PKZ (Accesorios)

* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER

Precio total: $9.22
Precio unitario: $9.22

*Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Si nuestro precio no es el mejor solicítenos presupuesto Solicitar presupuesto

Comprados juntos habitualmente

▲

Más Información

▲


Especificaciones generales

Product Name
Eaton Moeller® series MVS Accessory Reversing wiring kit
Catalog Number
220209
EAN
4015082202095
Product Length/Depth
84 mm
Product Height
28 mm
Product Width
21 mm
Product Weight
0.026 kg
Certifications
CSA
CSA-C22.2 No. 14-05
UL File No.: E36332
IEC/EN 60947-4-1
UL 508
UL
CE
UL Category Control No.: NLRV7
CSA Class No.: 3211-06
CSA File No.: 012528
Catalog Notes
The following control cables are integrated in addition to electrical interlock:
Model Code
MVS-WB-EM

Características y Funciones

Fitted with:
Control cables: Q11: 21 - Q12: A1
Control cables: Q11: A2 - Q12: A2
Control cables: Q11: A1 - Q12: 21
Functions
Main current wiring for reversing combinations

General

Accessory/spare part type
Connecting bridge
Product category
Accessories

Condiciones climáticas ambientales

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
50 °C

Verificación del diseño

Equipment heat dissipation, current-dependent Pvid
2.1 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0.7 W
Rated operational current for specified heat dissipation (In)
22 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
