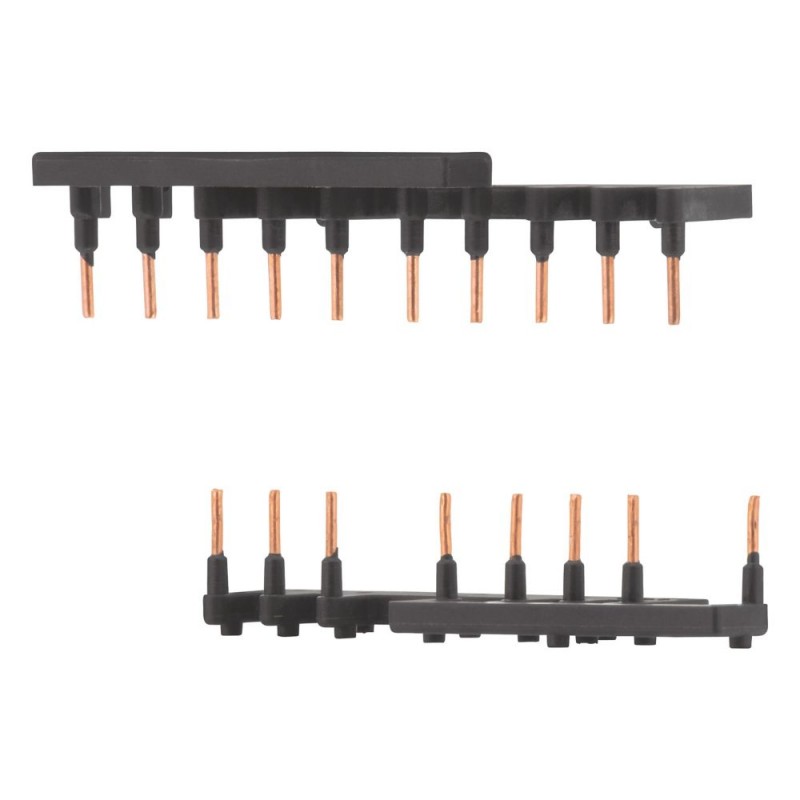

MVS-WB-EM 220209 Y7-220209 EATON ELECTRIC Kit de câblage inverseur, pour DILEM Agrandir l'image
Les images sont à titre illustratif. Svp, révisez la fiche technique.

MVS-WB-EM 220209 Y7-220209 EATON ELECTRIC Kit de câblage inverseur, pour DILEM

MVS-WB-EM

220209

Y7-220209

EATON-MOELLER

Kit de câblage inverseur, pour DILEM

MVS-WB-EM

Eaton Moeller® series MVS Reversing wiring kit, for DILEM

Kit de câblage inverse pour les tailles DILE (E) M et verrouillage mécanique

Plus de détails


Appareillage industriel basse tension > Accessoires pour connectique basse tension

Contacteurs jusqu'à 170A

Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER

Prix total: $12.20
Prix unitaire: $12.20
Ce prix est par unité et montre la valeur nette (excluant les taxes indirectes le cas échéant) .

Si notre prix n'est pas le meilleur, demandez-nous un devis. Demander un devis

Related products

▲

Achetés habituellement ensemble

▲

Les plus vendus

▲

En savoir plus

▲


Spécifications générales

Product Name
Eaton Moeller® series MVS Accessory Reversing wiring kit
Catalog Number
220209
Model Code
MVS-WB-EM
EAN
4015082202095
Product Length/Depth
84 mm
Product Height
28 mm
Product Width
21 mm
Product Weight
0.026 kg
Certifications
CSA
CSA-C22.2 No. 14-05
UL File No.: E36332
IEC/EN 60947-4-1
UL 508
UL
CE
UL Category Control No.: NLRV7
CSA Class No.: 3211-06
CSA File No.: 012528
Catalog Notes
The following control cables are integrated in addition to electrical interlock:

Features & Functions

Fitted with:
Control cables: Q11: 21 - Q12: A1
Control cables: Q11: A2 - Q12: A2
Control cables: Q11: A1 - Q12: 21
Functions
Main current wiring for reversing combinations

General

Accessory/spare part type
Connecting bridge
Product category
Accessories

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
50 °C

Design verification

Equipment heat dissipation, current-dependent Pvid
2.1 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0.7 W
Rated operational current for specified heat dissipation (In)
22 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 220209 Appareillage industriel basse tension (EC002498)
Caractéristique Valeur
Type d'accessoire (EF000215) Pont de liaison
Accessoire (EF013236) Oui
Pièce détachée (EF013237) Non
