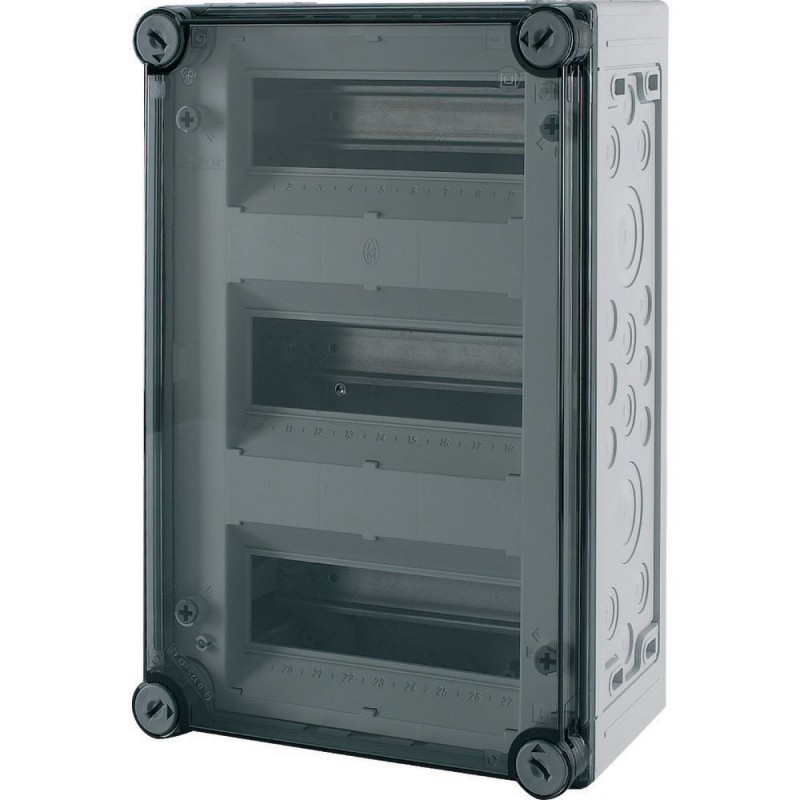

Special features
Metric cable entry knockouts in all sidesHousings for e.g. built-in devices MCB, RCD, RCBO, AFDDTransparent cover with quick-release fastenersMetal mounting rail for snapping on devices1 x Blanking strip for unused mounting locationsProtective shroud with inscription labelPE/N combi-plug-in terminalsFixing straps for wall fixingSealable cover fasteners
Type
MCB individual enclosuresPrepared enclosurexEnergy Safety Ci
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
Meets the product standard's requirements.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Lower part: 960 °C / cover: 850 °C; meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Not relevant to indoor installations.
10.2.5 Lifting
10 kg per enclosure with support frame and lifting aid met; assembled and secured as per the latest applicable instruction leaflet.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
10.4 Clearances and creepage distances
Is the panel builder's responsibility.
10.5 Protection against electric shock
Protection class 2, therefore not applicable.
10.6 Incorporation of switching devices and components
Is the panel builder's responsibility.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
10.9.3 Impulse withstand voltage
10.9.4 Testing of enclosures made of insulating material
Meets the product standard's requirements.
Accessory/spare part type
MCB individual enclosures
Heat diss. ambient 35°C delta T:20°C wall mount individ. encl. top (IEC 60890)
Heat diss. ambient 35°C delta T: 20°C wall mount middle encl. top (IEC 60890)
Heat diss. ambient 35°C delta T:20°C wall mount starting encl. top (IEC 60890)
Width in number of modular spacings
Number of module space units (total)
Number and capacity of terminal (PE and N)
On each 3 x (2.5 - 25 mm²)
On each 21 x (0.5 - 4 mm²)
Mounting method
DIN-rail
Surface mounted (plaster)
Heat diss. ambient 35°C delta T:35°C wall mount individ. encl. top (IEC 60890)
Heat diss. ambient 35°C delta T: 35°C wall mount middle encl. top (IEC 60890)
Heat diss. ambient 35°C delta T:35°C wall mount starting encl. top (IEC 60890)
