> >>B3.0/4-PKZ0 063960 XTPAXCLKA4 ELECTRIC Peine de conexión trifásico Para 4 PKZ0
Anterior producto Siguiente producto

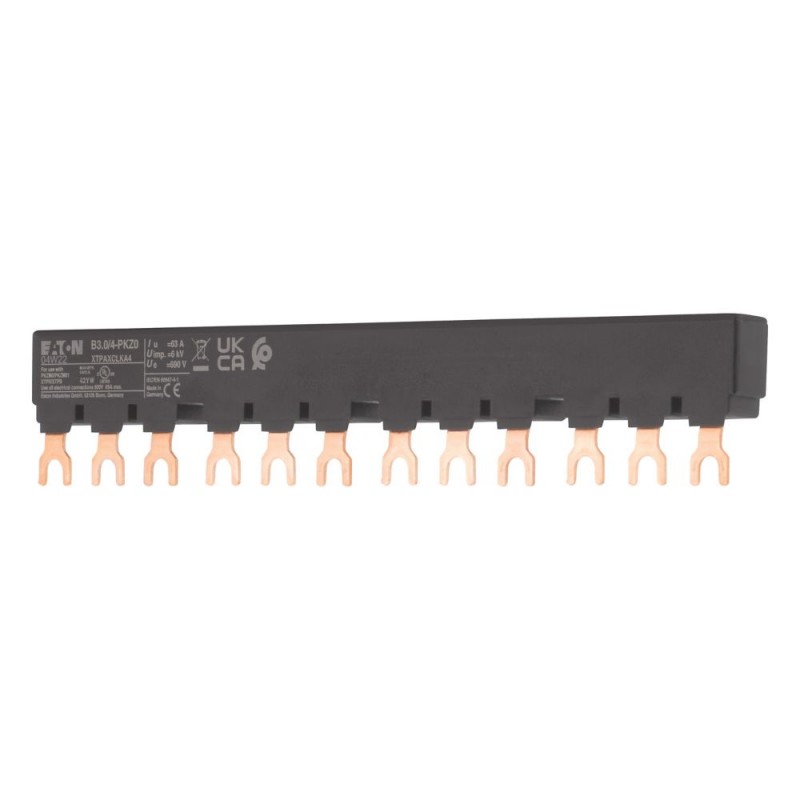

B3.0/4-PKZ0 063960 XTPAXCLKA4 EATON ELECTRIC Peine de conexión trifásico Para 4 PKZ0 Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

B3.0/4-PKZ0 063960 XTPAXCLKA4 EATON ELECTRIC Peine de conexión trifásico Para 4 PKZ0

B3.0/4-PKZ0

063960

XTPAXCLKA4

EATON-MOELLER

Peine de conexión trifásico; Para 4 PKZ0

Eaton Moeller® series B3 Three-phase busbar link, Circuit-breaker: 4, 180 mm, For PKZM0-... or PKE12, PKE32 without side mounted auxiliary contacts or voltage releases

Más detalles


Interruptores de baja tensión > Barra de fase

Interruptor protector motor PKZ (Accesorios)

* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER

Precio total: $14.67
Precio unitario: $14.67

Cantidad Precio
1+$14.67
2+$14.67
*Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Si nuestro precio no es el mejor solicítenos presupuesto Solicitar presupuesto

Comprados juntos habitualmente

▲

Más Información

▲


Especificaciones generales

Product Name
Eaton Moeller® series B3 Accessory Three-phase busbar link
Catalog Number
063960
EAN
4015080639602
Product Length/Depth
182 mm
Product Height
34 mm
Product Width
11 mm
Product Weight
0.08 kg
Certifications
CSA
IEC/EN 60947-4-1
CSA Class No.: 3211-06
UL 508
UL File No.: E36332
CSA File No.: 98494
CE
CSA-C22.2 No. 14
UL Category Control No.: NLRV
UL
Catalog Notes
For parallel power feed to several motor-protective circuit-breakers on terminals 1, 3, 5
Model Code
B3.0/4-PKZ0

Características y Funciones

Color
Black
Electric connection type
Fork
Features
Insulated
Functions
Can be extended by rotating installation
Number of phases
3
Number of poles
Three-pole

General

Mounting width
45 mm
Overvoltage category
III
Pollution degree
3
Product category
Accessories
Rated impulse withstand voltage (Uimp)
6000 V AC
Suitable for
4 Circuit-breakers
Used with
PKZ0
PKE12
PKE32

Condiciones climáticas ambientales

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C

Especificaciones eléctricas

Rated operational voltage (Ue) - max
690 V
Rated operational voltage (Ue) at AC - max
690 V
Rated uninterrupted current (Iu)
63 A

Clasificación de cortocircuito

Rated conditional short-circuit current (Iq)
0 kA
Rated short-time withstand current (Icw)
0 kA

Verificación del diseño

Equipment heat dissipation, current-dependent Pvid
5.7 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
1.9 W
Rated operational current for specified heat dissipation (In)
63 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

Datasheet - PDF

▲
Título: Tamaño: Tipo:
PDF CATALOGO EATON CONTROL Y AUTOMATIZACION ES.pdf 9 Mbytes
B3.0/4-PKZ0 XTPAXCLKA4 063960 ES_063960.pdf 1 Mbytes B3.0/4-PKZ0 XTPAXCLKA4 063960 ES_063960.pdf
