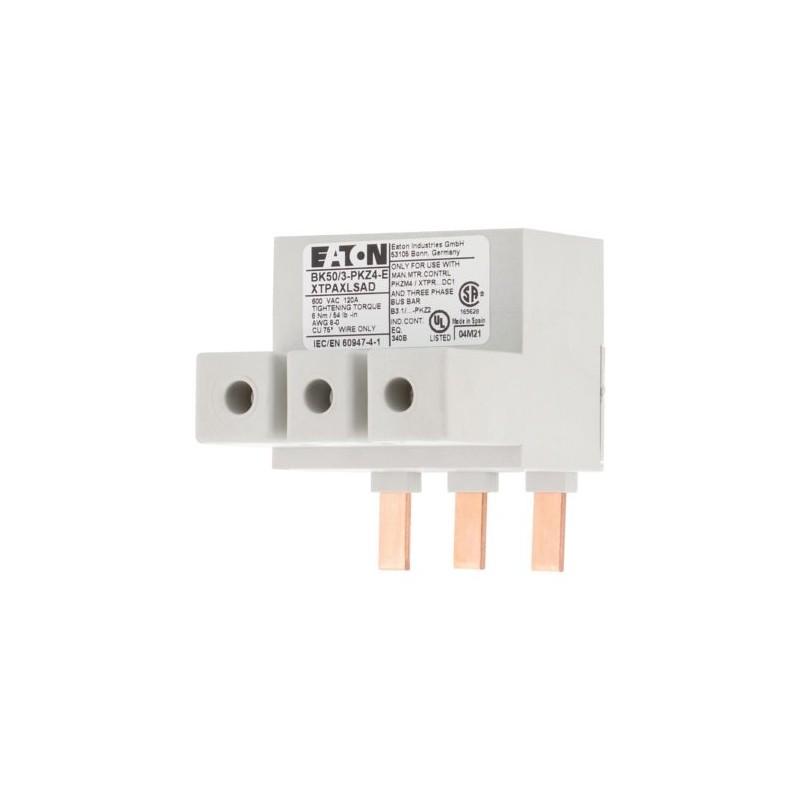

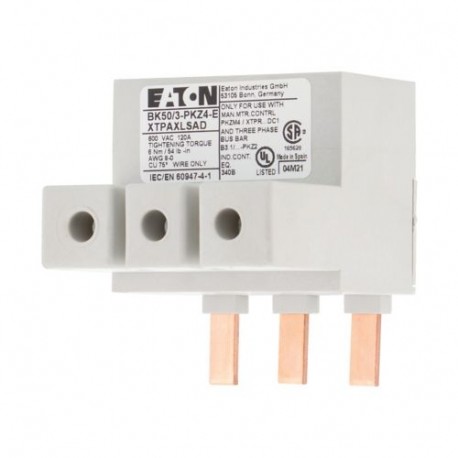

BK50/3-PKZ4-E 272165 XTPAXLSAD EATON ELECTRIC Borne de alimentación 3 polos 50 mm² 120 A Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

BK50/3-PKZ4-E 272165 XTPAXLSAD EATON ELECTRIC Borne de alimentación 3 polos 50 mm² 120 A

BK50/3-PKZ4-E

272165

XTPAXLSAD

EATON-MOELLER

Borne de alimentación; 3 polos; 50 mm²; 120 A

Eaton Moeller® series PKZ Extension terminal, 3p, 50mm²

Más detalles


Interruptores de baja tensión > Terminal de barra colectora

Interruptor protector motor PKZ (Accesorios)

* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER

Precio total: $34.87
Precio unitario: $34.87

*Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Si nuestro precio no es el mejor solicítenos presupuesto Solicitar presupuesto

Más vendidos

▲

Más Información

▲


Especificaciones generales

Product Name
Eaton Moeller® series PKZ Connection clamp
Catalog Number
272165
EAN
4015082721657
Product Length/Depth
60 mm
Product Height
63 mm
Product Width
55 mm
Product Weight
0.175 kg
Certifications
UL
CSA Class No.: 3211-06
CSA
CSA-C22.2 No. 14
UL 508
UL Category Control No.: NLRV
CE
CSA File No.: 165628
IEC/EN 60947-4-1
UL File No.: E36332
Model Code
BK50/3-PKZ4-E

General

Overvoltage category
III
Pollution degree
3
Product category
Accessories
Suitable for
Round conductor connection
PKZM0/PKE, line terminal required for Type E/F applications, (UL/CSA)
Other

Condiciones climáticas ambientales

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C

Especificaciones eléctricas

Rated operational current (Ie) - max
128 A

Verificación del diseño

Equipment heat dissipation, current-dependent Pvid
3 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
1 W
Rated operational current for specified heat dissipation (In)
120 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
