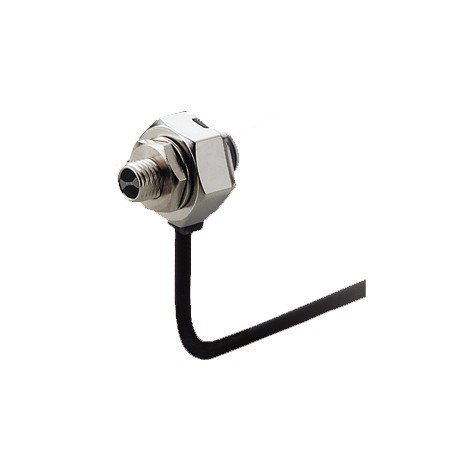

EX32BPN
EX-32B-PN
PANASONIC
1
Diffuse reflective, 50mm, dark-ON, PNP, 2m cable
Miniature Photoelectric Sensors - PANASONIC > EX30 Fiber ultra-slim type photoelectric sensor - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Product Number | EX-32B-PN |
Part Number | EX-32B-PN |
Product | Threaded Miniature Photoelectric Sensor |
Details | Diffuse reflective |
Product name | Threaded Miniature Photoelectric Sensor EX-30 Ver.2 |
Item | Specifications |
---|---|
Product Number | EX-32B-PN |
Part Number | EX-32B-PN |
CE marking directive compliance | EMC Directive, RoHS Directive |
Sensing range | 50 mm 1.969 in (Note) The sensing range and the hysteresis are specified for white non-glossy paper (100 x 100 mm 3.937 x 3.937 in) as the object. |
Sensing object | Opaque, translucent or transparent object (Note) Make sure to confirm detection with an actual sensor before use. |
Hysteresis | 15 % or less of operation distance (Note) The sensing range and the hysteresis are specified for white non-glossy paper (100 x 100 mm 3.937 x 3.937 in) as the object. |
Repeatability(perpendicular to sensing axis) | 0.5 mm 0.020 in or less |
Supply voltage | 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
Current consumption | 13 mA or less |
Output | PNP open-collector transistor - Maximum source current: 50 mA - Applied voltage: 30 V DC or less (between output and +V) - Residual voltage: 2 V or less (at 50 mA source current), 1 V or less (at 16 mA source current) |
Output:Utilization category | DC-12 or DC-13 |
Output:Output operation | Dark-ON |
Output:Short-circuit protection | Incorporated |
Response time | 0.5 ms or less |
Operation indicator | Orange LED (lights up when the output is ON) |
Stability indicator | Green LED (lights up under stable light received condition orstable dark condition) |
Sensitivity adjuster | Continuously variable adjuster |
Pollution degree | 3 (Industrial environment) |
Protection | IP67 (IEC) |
Ambient temperature | -25 to +55 degrees -13 to +131 degrees Fahrenheit (No dew condensation or icing allowed), Storage: -30 to +70 degrees -22 to +158 degrees Fahrenheit |
Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
Ambient illuminance | Incandescent light: 3,000 lx or less at the light-receiving face |
Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
Insulation resistance | 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure |
Vibration resistance | 10 to 500 Hz frequency, 3 mm0.118 indouble amplitude (20 G max.) in X, Y and Z directions for two hours each |
Shock resistance | 500 m/s2acceleration (50 G approx.) in X, Y and Z directions three times each |
Emitting element | Red LED (modulated) |
Material | Enclosure: Die-cast zinc (Nickel plated) Lens: Acrylic Enclosure cover: Polycarbonate |
Cable | 0.1 mm2 3-core cabtyre cable, 2 m 6.562 ft long |
Cable extension | Extension up to total 50 m 164.042 ft is possible with 0.3 mm2, or more, cable. |
Weight | Net weight: 20 g approx Gross weight: 30 g approx |
Accessory | Nut: 1 pc Toothed lock washer: 1 pc |
Title: | Size: | Type: |
---|---|---|
PDF CATALOG PANASONIC SENSORS EN.pdf | 31 Mbytes | |
PDF CATALOGUE PANASONIC EN.pdf | 15 Mbytes | |
Datasheet 1: EX32BPN - EX32BPN | EX-32B-PN | 256 Kbytes | |
