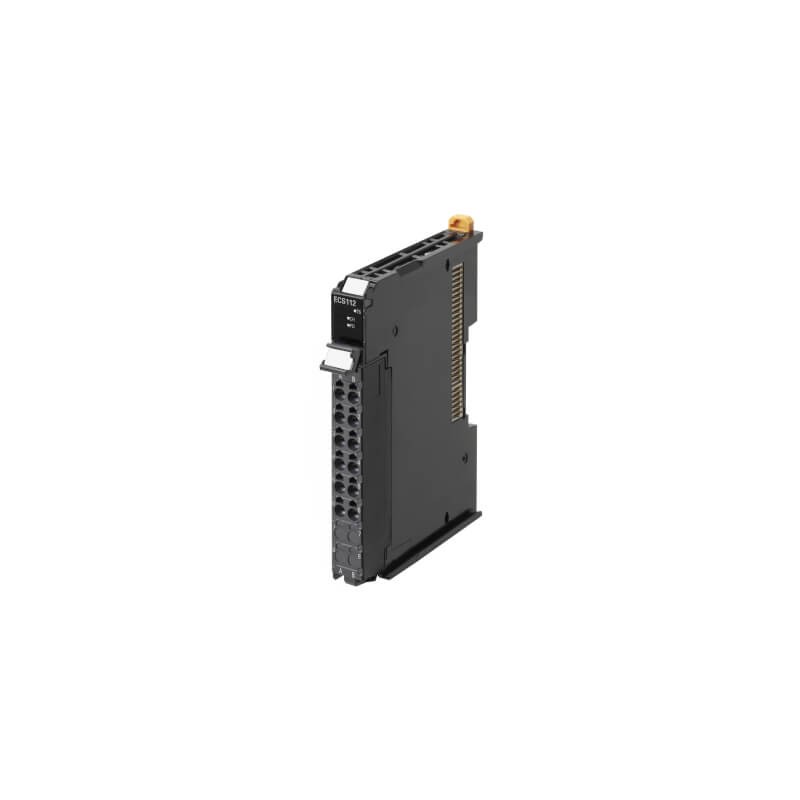

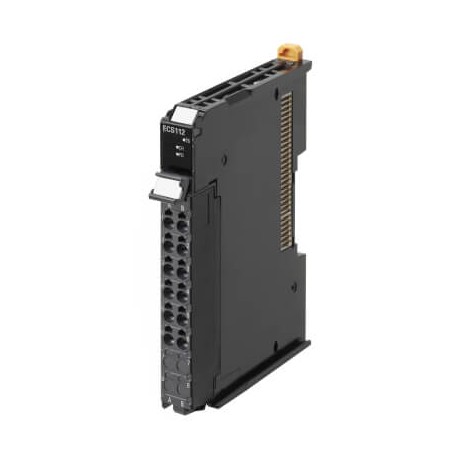

NX-ECS112 NX020065H 375648 OMRON NX Unit 1 SSI Series Encoder Input
NX-ECS112
NX020065H
NXECS112
OMRON
Unit NX - 1 Input Encoder Serial SSI
1 x SSI encoder Input, EIA standard RS-422-A, 32 bits max data length, screwless push-in connector, 12 mm wide
Integrated Automation > Machine I/O NX-series
* Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲Specifications
| I/O system | NX I/O Bus |
| Type of module | Encoder input |
| Digital input type | SSI encoder |
| Digital output type | None |
| Signal processing | Free running, Synchronous |
| Number of encoder input channels | 1 |
| Max. encoder input frequency | 2000 kHz |
| Number of pulse output channels | 0 |
| Max. pulse output frequency | 0 kHz |
| IO link master | |
| I/O connection type | Push-in |
| Number of I/O connectors | 1 |
| Detachable I/O connector | |
| Suitable for safety functions | |
| SIL according to IEC 61508 | None |
| Number of IOV (V+) terminals | 2 |
| Number of IOG (V-) terminals | 2 |
| Degree of protection (IP) | IP20 |
| Height | 100 mm |
| Width | 12 mm |
| Depth | 71 mm |
| Weight | 65 g |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG OMRON EN.pdf | 24 Mbytes |
|
| NX-ECS112 NXECS112 NX020065H ES_NX-EC0122.pdf | 8 Mbytes |
|
| NX-ECS112 NXECS112 NX020065H panel_building_brochure_en.pdf | 3 Mbytes |
|
